Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFM252012ALMA3R3MTAAFIXED IND 3.3UH 2A 140 MOHM SMD |
7,038 |
|
Datasheet |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 3.3 µH | ±20% | 2 A | 2.1A | Shielded | 140mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

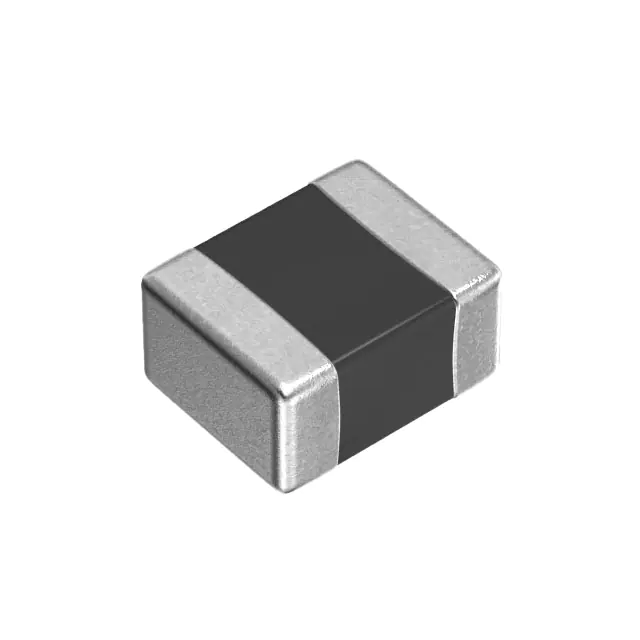

TFM201610ALMA2R2MTAAFIXED IND 2.2UH 1.9A 152MOHM SMD |
4,471 |
|
Datasheet |
TFM-ALMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 1.9 A | 2A | Shielded | 152mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

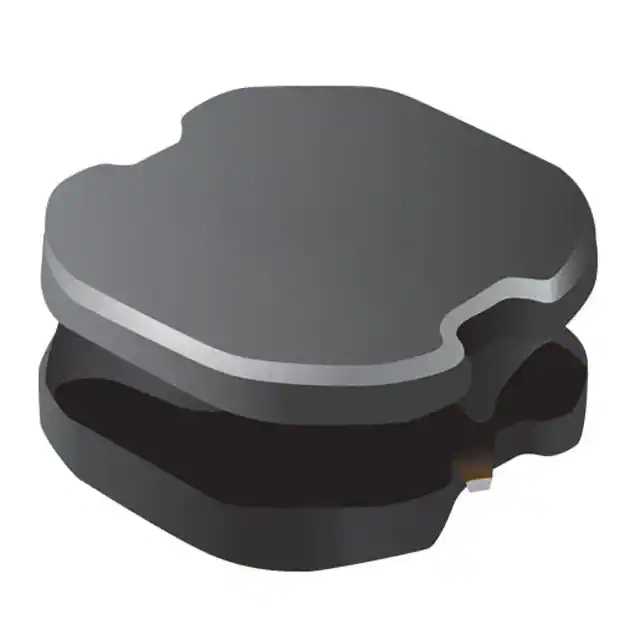

SRN8040-680MFIXED IND 68UH 1.1A 275 MOHM SMD |
1,414 |
|
Datasheet |
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.1 A | 1.2A | Shielded | 275mOhm Max | 20 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
CDRH5D28NP-6R2NCFIXED IND 6.2UH 1.8A 45 MOHM SMD |
84,268 |
|
Datasheet |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.2 µH | ±30% | 1.8 A | - | Shielded | 45mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
82153CFIXED IND 15UH 400MA 560MOHM SMD |
23,608 |
|
Datasheet |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±10% | 400 mA | - | Unshielded | 560mOhm Max | 35 @ 1MHz | 31MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
|
CDRH5D28NP-100NCFIXED IND 10UH 1.3A 65 MOHM SMD |
17,398 |
|
Datasheet |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1.3 A | - | Shielded | 65mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
|
82223CFIXED IND 22UH 320MA 920MOHM SMD |
7,695 |
|
Datasheet |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | 320 mA | - | Unshielded | 920mOhm Max | 35 @ 1MHz | 25MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
|
82103CFIXED IND 10UH 500MA 400MOHM SMD |
6,685 |
|
Datasheet |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | 500 mA | - | Unshielded | 400mOhm Max | 35 @ 1MHz | 38MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
|
82473CFIXED IND 47UH 250MA 1.69OHM SMD |
4,713 |
|
Datasheet |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 250 mA | - | Unshielded | 1.69Ohm Max | 40 @ 1MHz | 17MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
22R476MCFIXED IND 47MH 33MA 154 OHM SMD |
8,506 |
|
Datasheet |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 mH | ±10% | 33 mA | - | Unshielded | 154Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.311" (7.90mm) |
|
B82498F1472J000FIXED IND 4.7UH 90MA 3.8 OHM SMD |
5,597 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 90 mA | - | Unshielded | 3.8Ohm Max | 20 @ 7.96MHz | 210MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
TFM201610ALMAR10MTAAINDUCTORS FOR POWER CIRCUITS, AU |
2,363 |
|
Datasheet |
TFM-ALMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 100 nH | ±20% | 5.9 A | 8.5A | Shielded | 14mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
DR73-2R2-RFIXED IND 2.2UH 4.15A 16.5 MOHM |
15,561 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 4.15 A | 5.52A | Shielded | 16.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DR73-470-RFIXED IND 47UH 1.08A 241MOHM SMD |
11,974 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.08 A | 1.14A | Shielded | 241mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DR73-220-RFIXED IND 22UH 1.62A 107MOHM SMD |
9,980 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.62 A | 1.67A | Shielded | 107mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DR73-3R3-RFIXED IND 3.3UH 3.31A 25.9 MOHM |
9,665 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.31 A | 4.22A | Shielded | 25.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DR73-101-RFIXED IND 100UH 730MA 527MOHM SM |
2,110 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 730 mA | 790mA | Shielded | 527mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SPM6530T-3R3MFIXED IND 3.3UH 6.8A 29.7MOHM SM |
14,732 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 6.8 A | 7.3A | Shielded | 29.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
TFM252012ALVA2R2MTAAFIXED IND 2.2UH 2.6A 84MOHM SMD |
13,430 |
|
Datasheet |
TFM-ALVA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 2.6 A | 2.8A | Shielded | 84mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

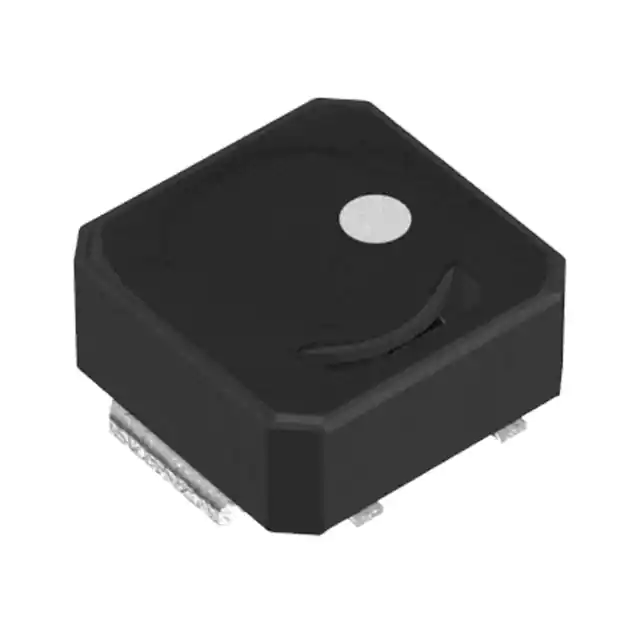

VLCF5020T-2R2N2R6-3FIXED IND 2.2UH 2.62A 43MOHM SMD |
12,426 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.62 A | 2.62A | Shielded | 43mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
