Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

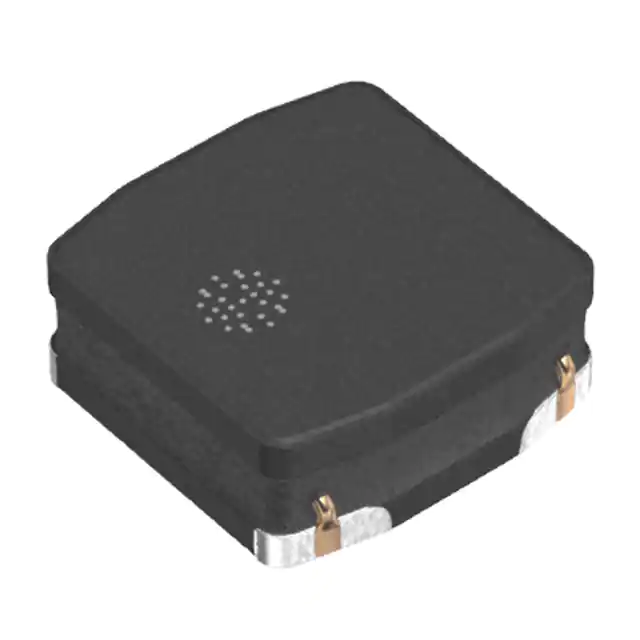

VLS3012HBX-2R2MFIXED IND 2.2UH 3.15A 106MOHM SM |
15,351 |
|
Datasheet |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 3.15 A | 3.35A | Shielded | 106mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

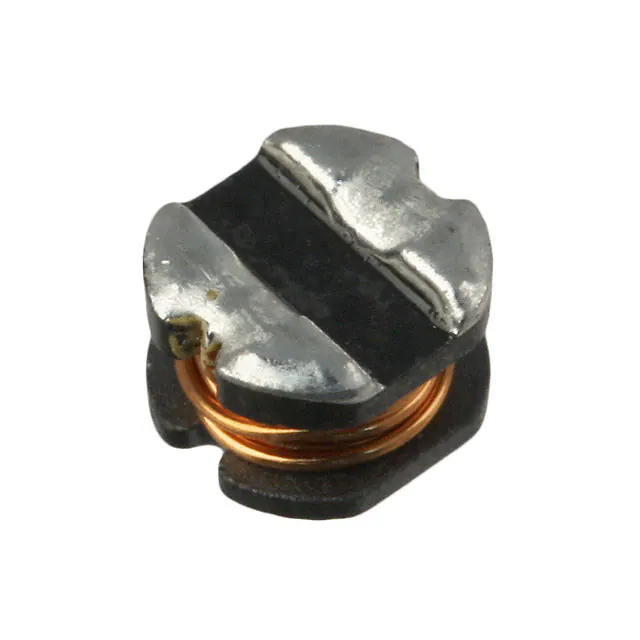

SDR0403-180MLFIXED IND 18UH 840MA 340MOHM SMD |
8,130 |
|
Datasheet |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 840 mA | 1.3A | Unshielded | 340mOhm Max | 25 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

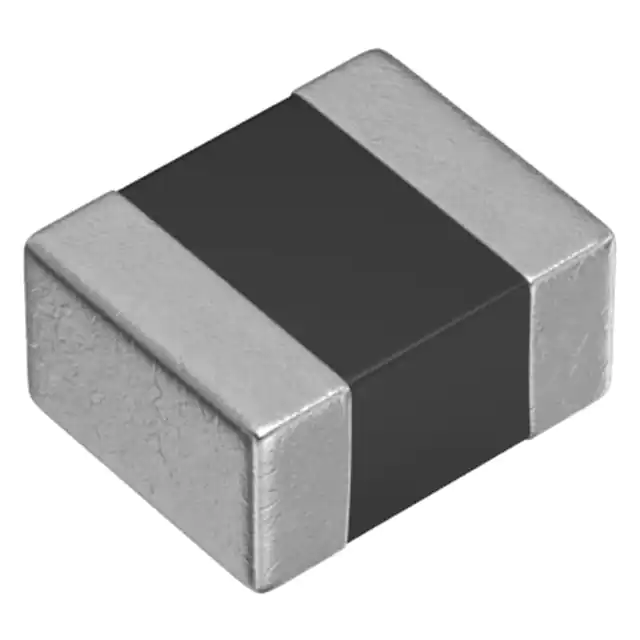

TFM252012ALMA1R5MTAAFIXED IND 1.5UH 3.1A 60 MOHM SMD |
20,648 |
|
Datasheet |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 3.1 A | 3.3A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LQW15CNR20J0ZDFIXED IND 200NH 390MA 0.47OHM SM |
14,965 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±5% | 390 mA | - | Unshielded | 470mOhm Max | - | 800MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
.jpg)
|
DFE322512F-100M=P2FIXED IND 10UH 1.1A 324MOHM SMD |
6,652 |
|
Datasheet |
DFE322512F | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.1 A | 1.7A | Shielded | 324mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

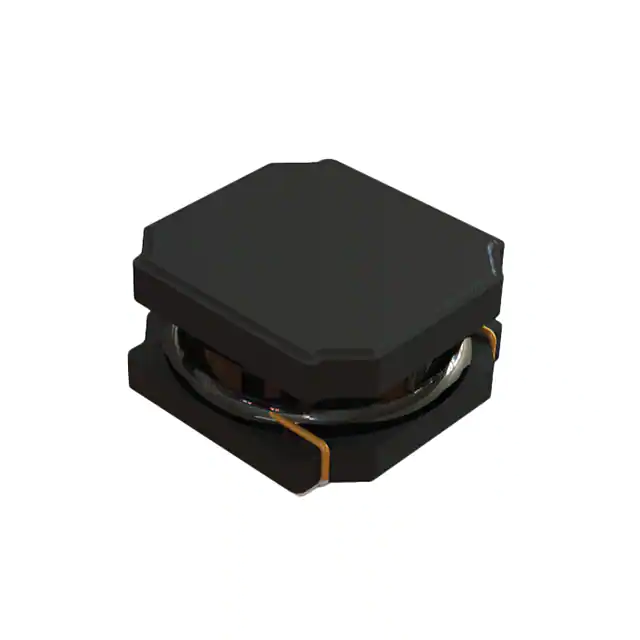

PA4332.222NLTFIXED IND 2.2UH 4.3A 48 MOHM SMD |
41,178 |
|
Datasheet |
PA4332.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 2.2 µH | ±20% | 4.3 A | 6.1A | Shielded | 48mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
.jpg)
|
B82422H1684K000FIXED IND 680UH 61MA 31 OHM SMD |
33,928 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 61 mA | - | Unshielded | 31Ohm Max | 20 @ 796kHz | 3MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
PA4332.102NLTFIXED IND 1UH 5.8A 26 MOHM SMD |
28,162 |
|
Datasheet |
PA4332.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1 µH | ±20% | 5.8 A | 8.5A | Shielded | 26mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
SLF7045T-101MR50-PFFIXED IND 100UH 650MA 300MOHM SM |
23,288 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 650 mA | 500mA | Shielded | 300mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
B82422H1473K000FIXED IND 47UH 230MA 2.1 OHM SMD |
10,467 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 230 mA | - | Unshielded | 2.1Ohm Max | 15 @ 2.52MHz | 12MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
TFM252012ALMAR47MTAAFIXED IND 470NH 4.9A 24 MOHM SMD |
2,975 |
|
Datasheet |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 470 nH | ±20% | 4.9 A | 5.8A | Shielded | 24mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
RLB9012-102KLFIXED IND 1MH 510MA 2.9 OHM TH |
113,727 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 510 mA | - | Unshielded | 2.9Ohm Max | 20 @ 252kHz | 1.3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
B82498F3820J000FIXED IND 82NH 500MA 190MOHM SMD |
19,804 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 500 mA | - | Unshielded | 190mOhm Max | 60 @ 500MHz | 1.5GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
74404043221AFIXED IND 220UH 310MA 2.43OHM SM |
13,273 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 310 mA | 210mA | Shielded | 2.43Ohm | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|

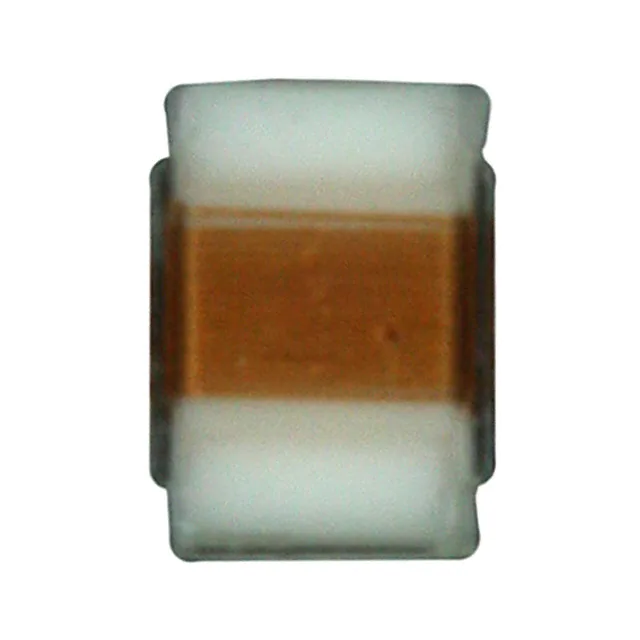

B82498F3331J000FIXED IND 330NH 220MA 1.5OHM SMD |
11,952 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 220 mA | - | Unshielded | 1.5Ohm Max | 45 @ 250MHz | 800MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

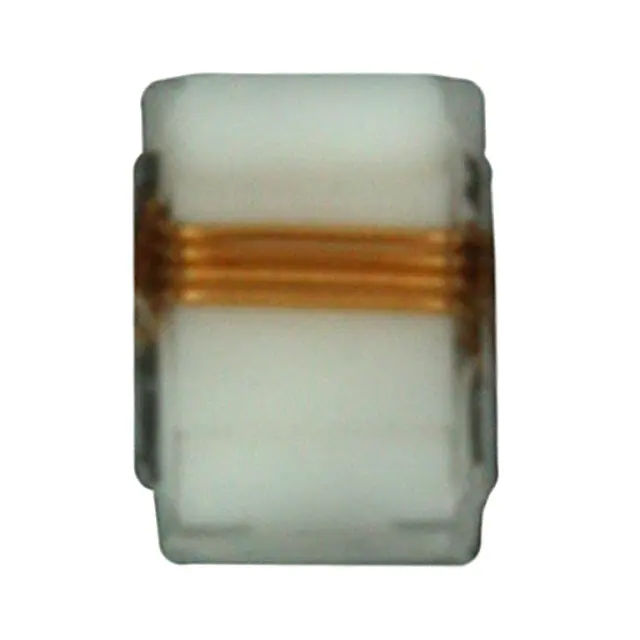

B82498F3220J000FIXED IND 22NH 700MA 80 MOHM SMD |
9,322 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 700 mA | - | Unshielded | 80mOhm Max | 60 @ 500MHz | 2.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
74404043010AFIXED IND 1UH 4.9A 14 MOHM SMD |
3,149 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.9 A | 3.22A | Shielded | 14mOhm | - | 167MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|

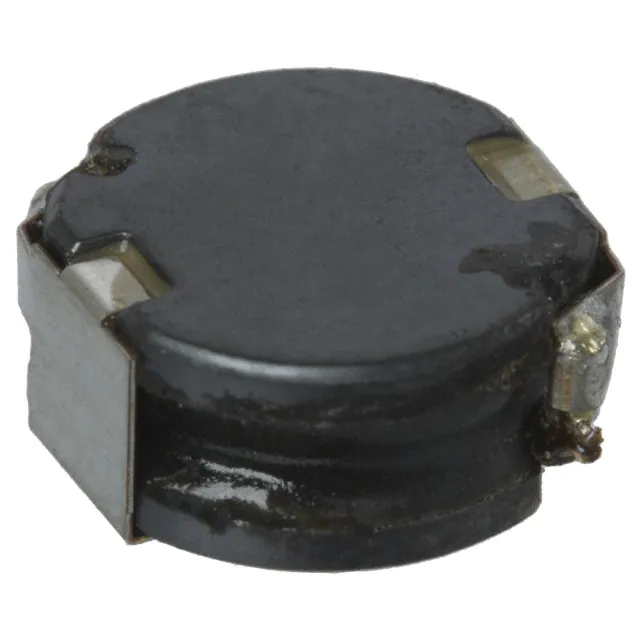

NR10050T221MFIXED IND 220UH 800MA 585MOHM SM |
235,156 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 800 mA | 1A | Unshielded | 585mOhm Max | - | 3MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
|
NR10050T100MFIXED IND 10UH 4.1A 32.5MOHM SMD |
123,152 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.1 A | 4.7A | Shielded | 32.5mOhm Max | - | 15MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
|
NR10050T101MFIXED IND 100UH 1.2A 271.7 MOHM |
34,423 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.2 A | 1.3A | Unshielded | 271.7mOhm Max | - | 4.6MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
