Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS40301R0N-10FIXED IND 1UH 4.15A 18.2MOHM SMD |
98,262 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 4.15 A | 5.26A | Shielded | 18.2mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|

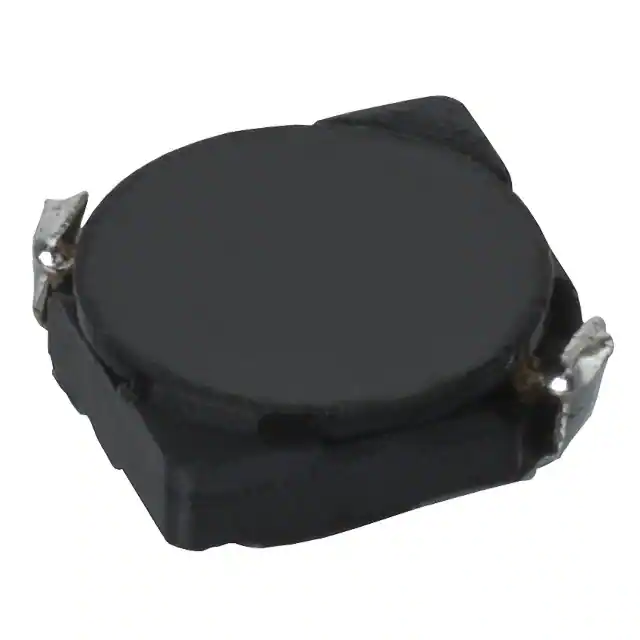

CDRH5D28NP-220NCFIXED IND 22UH 900MA 122MOHM SMD |
38,838 |
|
Datasheet |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 900 mA | - | Shielded | 122mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
VLS3012HBX-220MFIXED IND 22UH 1.12A 761MOHM SMD |
24,722 |
|
Datasheet |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 1.12 A | 1.09A | Shielded | 761mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
TYS5040100M-10FIXED IND 10UH 2.1A 64 MOHM SMD |
9,056 |
|
Datasheet |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.1 A | 2.35A | Shielded | 64mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|

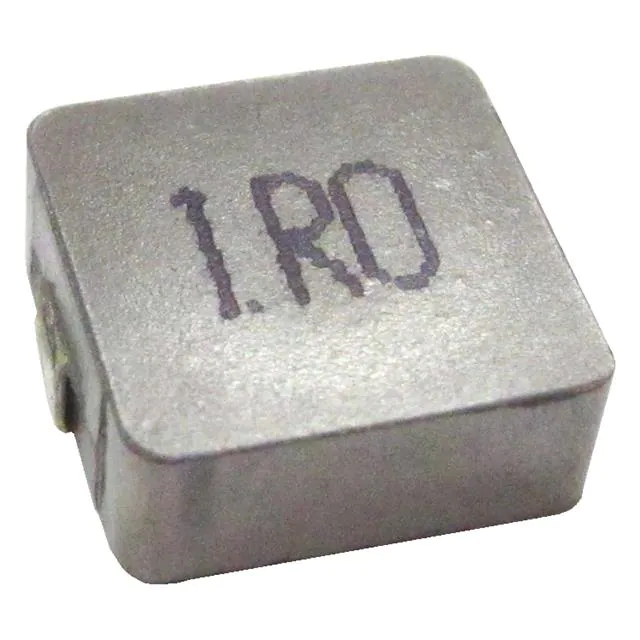

BMRA000606306R8MA1FIXED IND 6.8UH 4.5A 60 MOHM SMD |
2,995 |
|
Datasheet |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
NR8040T100MFIXED IND 10UH 3.1A 44.2MOHM SMD |
137,341 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.1 A | 3.4A | Shielded | 44.2mOhm Max | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
NR8040T101MFIXED IND 100UH 1A 377 MOHM SMD |
92,559 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1A | Shielded | 377mOhm Max | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
TYS6045680M-10FIXED IND 68UH 1A 289 MOHM SMD |
90,197 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1 A | 1.2A | Shielded | 289mOhm | - | 6.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
NR8040T220MFIXED IND 22UH 2.2A 85.8MOHM SMD |
36,031 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | 2.2A | Shielded | 85.8mOhm Max | - | 13MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
LQH2HPZR47NJRLFIXED IND 470NH 2.75A 37.2 MOHM |
12,000 |
|
Datasheet |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 2.75 A | 3.5A | Shielded | 37.2mOhm Max | - | 190MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
TFM201610ALMAR47MTAAFIXED IND 470NH 3.9A 39 MOHM SMD |
10,274 |
|
Datasheet |
TFM-ALMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 470 nH | ±20% | 3.9 A | 4.5A | Shielded | 39mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
VLS4012ET-4R7MFIXED IND 4.7UH 1.2A 118MOHM SMD |
8,835 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.2 A | 1.2A | Shielded | 118mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
NR8040T680MFIXED IND 68UH 1.1A 299 MOHM SMD |
6,337 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.1 A | 1.2A | Shielded | 299mOhm Max | - | 7MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
-Height-1.20mm.jpg)
|
DFE252012PD-R47M=P2FIXED IND 470NH 4A 0.027OHM SMD |
59,373 |
|
Datasheet |
DFE252012PD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 4 A | 5.2A | Shielded | 27mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
NRS6045T100MMGKVFIXED IND 10UH 2.4A 59.8MOHM SMD |
16,094 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.4 A | 3.1A | Shielded | 59.8mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
DFE252012PD-4R7M=P2FIXED IND 4.7UH 1.4A 0.2OHM SMD |
12,550 |
|
Datasheet |
DFE252012PD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.4 A | 1.9A | Shielded | 200mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LQH44PH100MPRLFIXED IND 10UH 1.25A 180MOHM SMD |
10,000 |
|
Datasheet |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.25 A | 1.45A | Shielded | 180mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

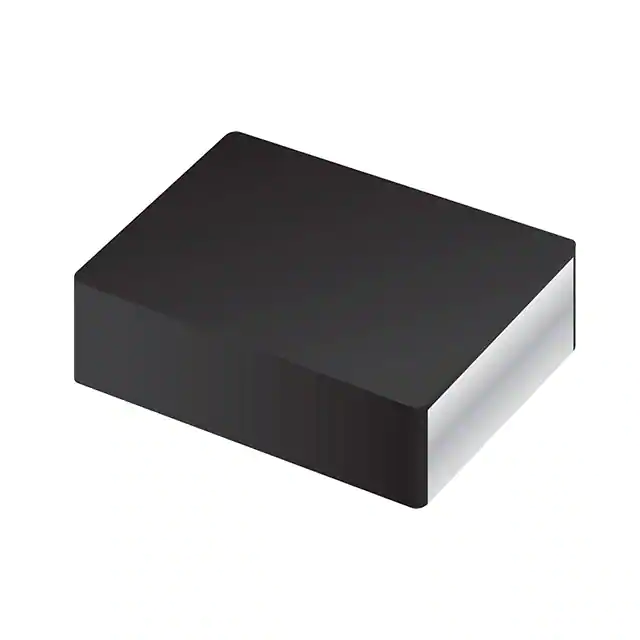

SRP2510A-R22MFIXED IND 220NH 5.9A 12.5MOHM SM |
6,969 |
|
Datasheet |
SRP2510A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 5.9 A | 7.9A | Shielded | 12.5mOhm Max | 35 @ 1MHz | 170MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH44PH470MPRLFIXED IND 47UH 600MA 780MOHM SMD |
6,381 |
|
Datasheet |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 600 mA | 750mA | Shielded | 780mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
-Height-1.00mm.jpg)
|
DFE201612PD-1R5M=P2FIXED IND 1.5UH 1.7A 98MOHM SMD |
5,714 |
|
Datasheet |
DFE201612P | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 1.7 A | 2A | Shielded | 98mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
