Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS3012HBX-3R3MFIXED IND 3.3UH 2.63A 150MOHM SM |
9,378 |
|
Datasheet |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.63 A | 2.82A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
22R474CFIXED IND 470UH 310MA 1.65OHM TH |
3,869 |
|
Datasheet |
2200R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 470 µH | ±10% | 310 mA | - | Unshielded | 1.65Ohm Max | 110 @ 100kHz | 3.2MHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.413" (10.50mm) |
|
13R336CFIXED IND 33MH 60MA 68 OHM TH |
3,187 |
|
Datasheet |
1300R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 33 mH | ±10% | 60 mA | - | Unshielded | 68Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
|
13R105CFIXED IND 1MH 330MA 2.1 OHM TH |
1,967 |
|
Datasheet |
1300R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 1 mH | ±10% | 330 mA | - | Unshielded | 2.1Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
CDRH4D28NP-4R7NCFIXED IND 4.7UH 1.32A 72MOHM SMD |
26,633 |
|
Datasheet |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.32 A | - | Shielded | 72mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
VLCF4020T-4R7N1R2FIXED IND 4.7UH 1.24A 98MOHM SMD |
8,888 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.24 A | 1.24A | Shielded | 98mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
VLS3012HBX-4R7MFIXED IND 4.7UH 2.23A 201MOHM SM |
5,510 |
|
Datasheet |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.23 A | 2.51A | Shielded | 201mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
NS10165T150MNAFIXED IND 15UH 3.84A 30 MOHM SMD |
44,903 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.84 A | 4.5A | Shielded | 30mOhm Max | - | 13.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
VLCF5020T-4R7N1R7-1FIXED IND 4.7UH 1.7A 122MOHM SMD |
6,062 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.7 A | 1.7A | Shielded | 122mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
744032100FIXED IND 10UH 320MA 650MOHM SMD |
4,585 |
|
Datasheet |
WE-LQ | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 320 mA | 850mA | Unshielded | 650mOhm Max | 35 @ 1MHz | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
|
VLCF5020T-220MR75-1FIXED IND 22UH 750MA 496MOHM SMD |
37,679 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 750 mA | 750mA | Shielded | 496mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
TFM252012ALMAR22MTAAFIXED IND 220NH 6.7A 13 MOHM SMD |
13,950 |
|
Datasheet |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 220 nH | ±20% | 6.7 A | 8A | Shielded | 13mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
TFM252012ALMA2R2MTAAFIXED IND 2.2UH 2.6A 84 MOHM SMD |
2,670 |
|
Datasheet |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 2.6 A | 2.8A | Shielded | 84mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
ECS-MPIL0630-100MCFIXED IND 10UH 5.5A 68 MOHM SMD |
15,531 |
|
Datasheet |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 5.5 A | - | Shielded | 68mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
|

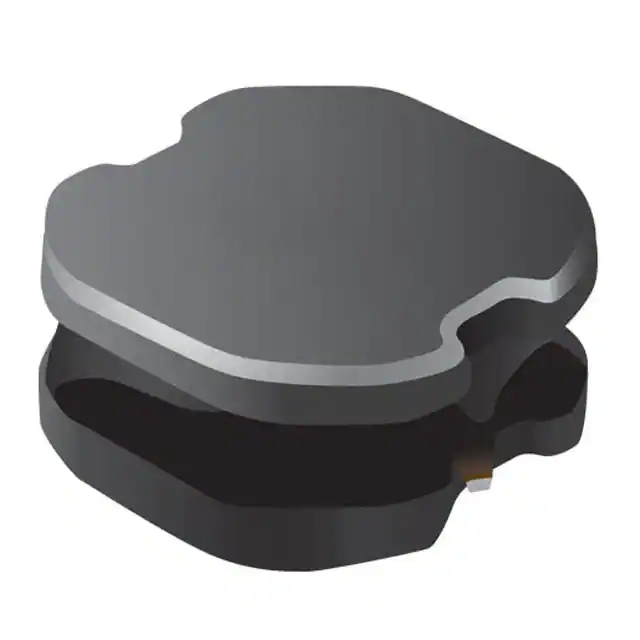

SRN8040-101MFIXED IND 100UH 1A 400 MOHM SMD |
100,403 |
|
Datasheet |
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1A | Shielded | 400mOhm Max | 10 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SRN8040-3R3YFIXED IND 3.3UH 5.6A 21 MOHM SMD |
14,406 |
|
Datasheet |
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 5.6 A | 5.5A | Shielded | 21mOhm Max | 13 @ 7.96MHz | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SRN8040-2R2YFIXED IND 2.2UH 6.3A 13 MOHM SMD |
12,767 |
|
Datasheet |
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6.3 A | 7.4A | Shielded | 13mOhm Max | 13 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SRN8040-470MFIXED IND 47UH 1.4A 190 MOHM SMD |
6,853 |
|
Datasheet |
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.4 A | 1.5A | Shielded | 190mOhm Max | 15 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
CDRH62BNP-100MC-BFIXED IND 10UH 1.1A 150 MOHM SMD |
77,125 |
|
Datasheet |
CDRH62 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.1 A | - | Shielded | 150mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
CDRH5D28NP-4R2NCFIXED IND 4.2UH 2.2A 31 MOHM SMD |
17,615 |
|
Datasheet |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.2 µH | ±30% | 2.2 A | - | Shielded | 31mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
