Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10SVP560MCAP ALUM POLY 560UF 20% 10V SMD |
401 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 10 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 261.5 mA @ 120 Hz | 5.23 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-CX1C680RCAP ALUM POLY 68UF 20% 16V SMD |
45,807 |
|
Datasheet |
SP-Cap CX | Tape & Reel (TR) | Not For New Designs | Polymer | 68 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
EEF-SX0J221ERCAP ALUM POLY 220UF 20% 6.3V SMD |
19,141 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CX1A101RCAP ALUM POLY 100UF 20% 10V SMD |
15,922 |
|
Datasheet |
SP-Cap CX | Tape & Reel (TR) | Not For New Designs | Polymer | 100 µF | ±20% | 10 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
|
EEF-SX0G331ERCAP ALUM POLY 330UF 20% 4V SMD |
7,016 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
25SVPF330MCAP ALUM POLY 330UF 20% 25V SMD |
12,538 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 25 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

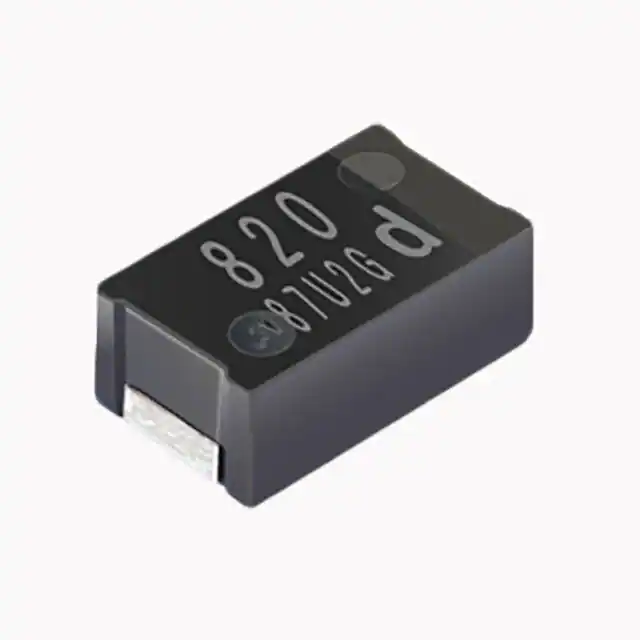

EEF-GY0D821RCAP ALUM POLY 820UF 20% 2V SMD |
1,527 |
|
Datasheet |
SP-Cap GY | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 2 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
APXG160ARA102MJC0GCAP ALUM POLY 1000UF 20% 16V SMD |
381 |
|
Datasheet |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 16 V | 12mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
ECASD31E226M040KA0CAP ALUM POLY 22UF 20% 25V SMD |
4,869 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCF1A471MCL1GSCAP ALUM POLY 470UF 20% 10V SMD |
3,424 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 10 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

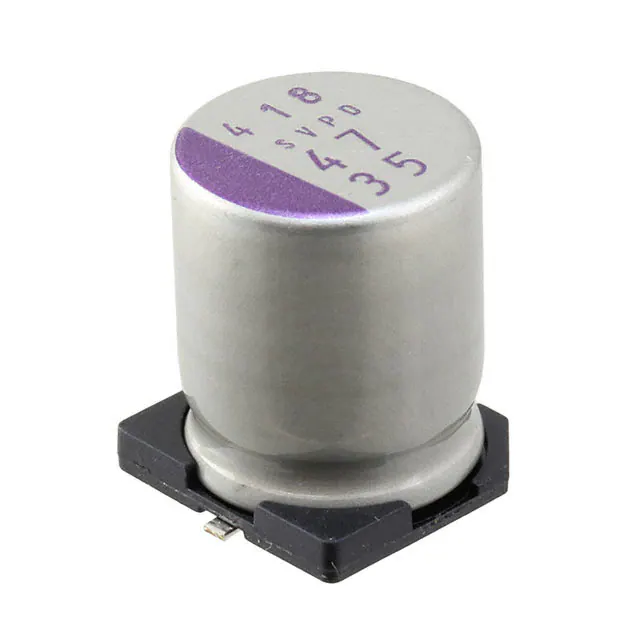

35SVPD47MCAP ALUM POLY 47UF 20% 35V SMD |
1,449 |
|
Datasheet |
OS-CON™, SVPD | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 35 V | 30mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 57.5 mA @ 120 Hz | 1.15 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZA1V271PCAP ALUMHYB 270UF 20% 35V SMD |
22,118 |
|
Datasheet |
ZA | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 375 mA @ 100 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-ZA1H101PCAP ALUMHYB 100UF 20% 50V SMD |
10,675 |
|
Datasheet |
ZA | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

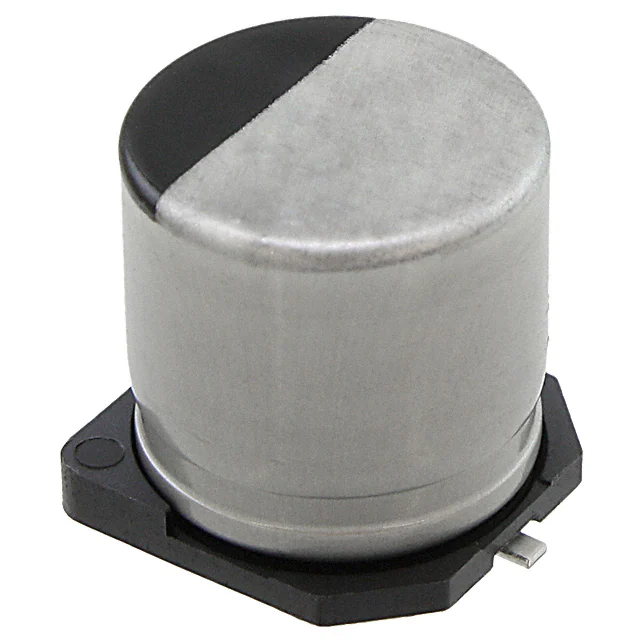

EEH-ZC1K470PCAP ALUM HYBRID 47UF 20% 80V SMD |
6,400 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 80 V | 36mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 204 mA @ 100 Hz | 1.36 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RL81V101MDN1KXCAP ALUM POLY 100UF 20% 35V TH |
7,246 |
|
Datasheet |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 300 mA @ 120 Hz | 3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|

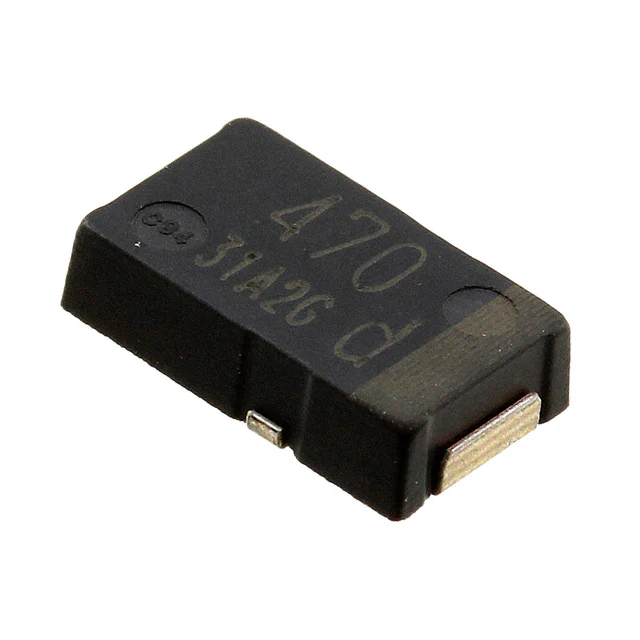

EEF-GX0D471LCAP ALUM POLY 470UF 20% 2V SMD |
2,500 |
|
Datasheet |
SP-Cap GX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEH-ZC1H101PCAP ALUMHYB 100UF 20% 50V SMD |
259 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCF1A561MCL1GSCAP ALUM POLY 560UF 20% 10V SMD |
665 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 10 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A700V686M006ATE018CAP ALUM POLY 68UF 20% 6.3V SMD |
4,062 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 6.3 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
ECASD60E477M4R5K00CAP ALUM POLY 470UF 20% 2.5V SMD |
9,174 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 4.5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
