Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL80J821MDN1KXCAP ALUM POLY 820UF 20% 6.3V TH |
16,603 |
|
Datasheet |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|

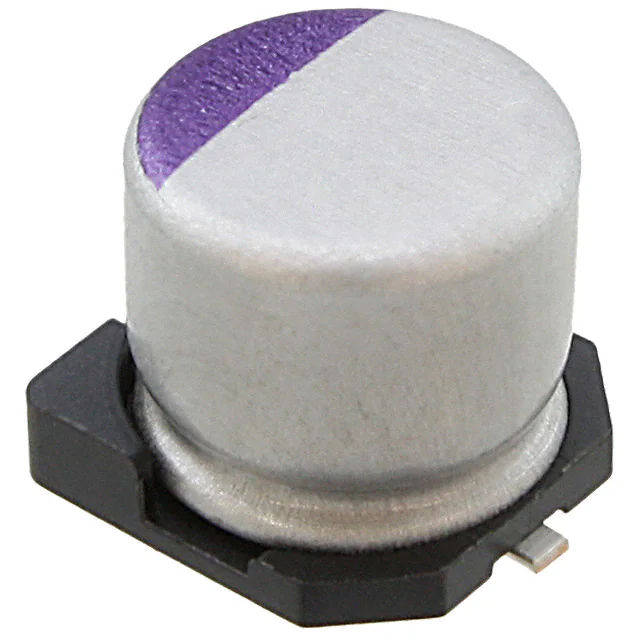

25SVPF47MCAP ALUM POLY 47UF 20% 25V SMD |
2,670 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 25 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

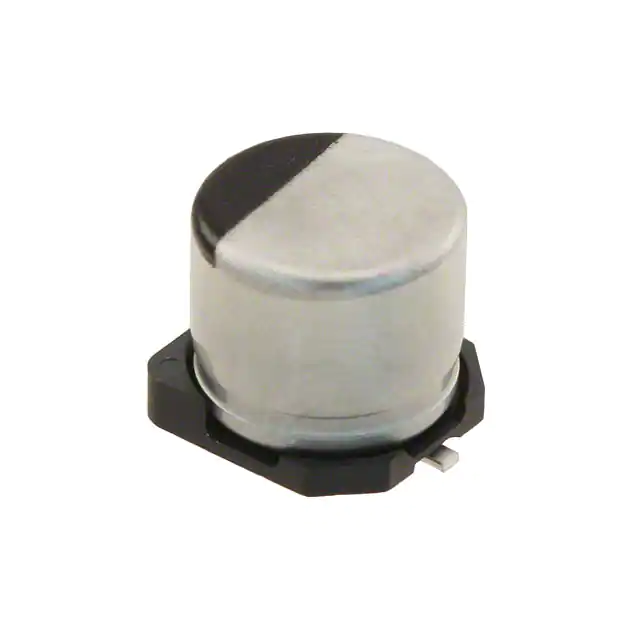

EEH-ZC1V470PCAP ALUM HYBRID 47UF 20% 35V SMD |
1,406 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 135 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
10SVPC120MCAP ALUM POLY 120UF 20% 10V SMD |
129 |
|
Datasheet |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 116 mA @ 120 Hz | 2.32 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HHXC630ARA820MJA0GCAP ALUM HYBRID 82UF 20% 63V SMD |
10,380 |
|
Datasheet |
HXC | Tape & Reel (TR) | Active | Hybrid | 82 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HHXC630ARA330MHA0GCAP ALUM HYBRID 33UF 20% 63V SMD |
15,750 |
|
Datasheet |
HXC | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

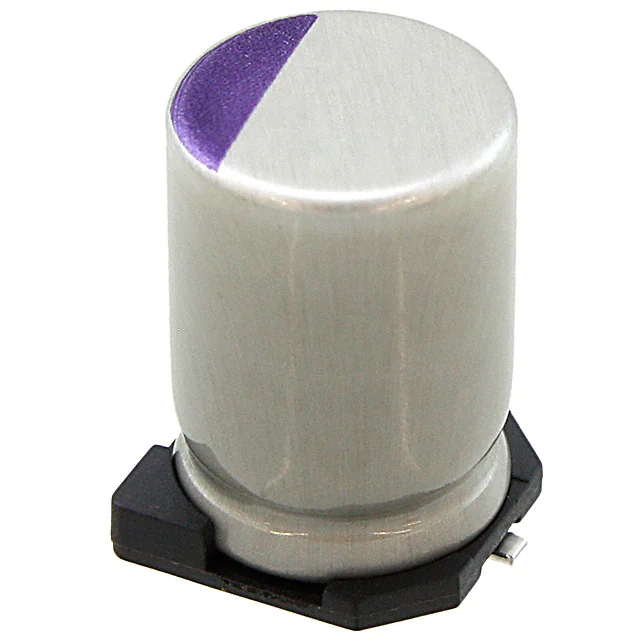

16SVPC270MCAP ALUM POLY 270UF 20% 16V SMD |
1,845 |
|
Datasheet |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 203.5 mA @ 120 Hz | 4.07 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
16SVPF180MCAP ALUM POLY 180UF 20% 16V SMD |
9,845 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 16 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 165 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
HHXC350ARA271MJA0GCAP ALUMHYB 270UF 20% 35V SMD |
7,158 |
|
Datasheet |
HXC | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A768KS227M1VLAE024CAP ALUM POLY 220UF 20% 35V SMD |
1,879 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 35 V | 24mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
RL81C221MDN1KXCAP ALUM POLY 220UF 20% 16V TH |
12,192 |
|
Datasheet |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
|
A768MS107M1HLAE024CAP ALUM POLY 100UF 20% 50V SMD |
3,988 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 50 V | 24mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 107.5 mA @ 120 Hz | 2.15 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
20SVPF120MCAP ALUM POLY 120UF 20% 20V SMD |
13,461 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 20 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

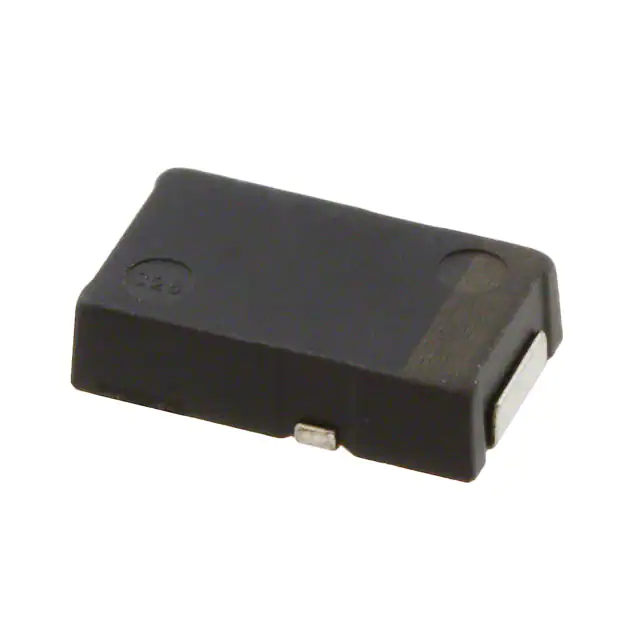

EEF-LX0D471R4CAP ALUM POLY 470UF 20% 2V SMD |
10,440 |
|
Datasheet |
SP-Cap LX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
35SVPF22MCAP ALUM POLY 22UF 20% 35V SMD |
7,978 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 35 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
EEF-CX0J101RCAP ALUM POLY 100UF 20% 6.3V SMD |
787 |
|
Datasheet |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-SX0D471XECAP ALUM POLY 470UF 20% 2V SMD |
46,504 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
25SVPF100MCAP ALUM POLY 100UF 20% 25V SMD |
10,420 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 24mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

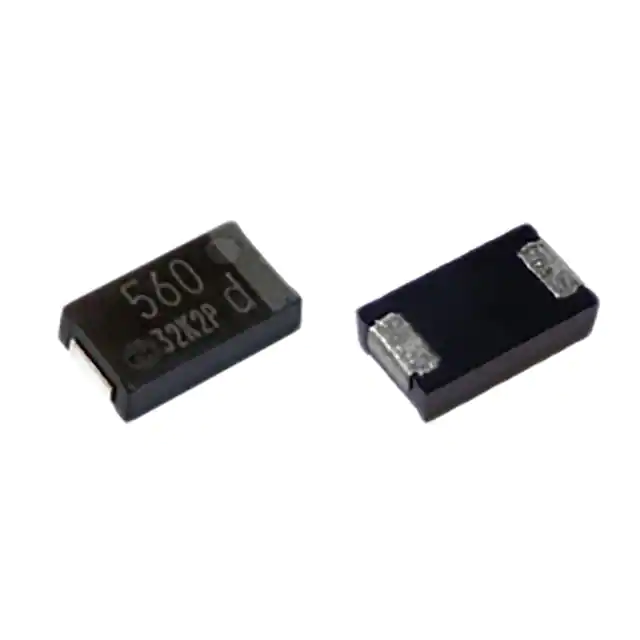

EEF-HX0E331R6CAP ALUM POLY 330UF 20% 2.5V SMD |
37,532 |
|
Datasheet |
SP-Cap HX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 6mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

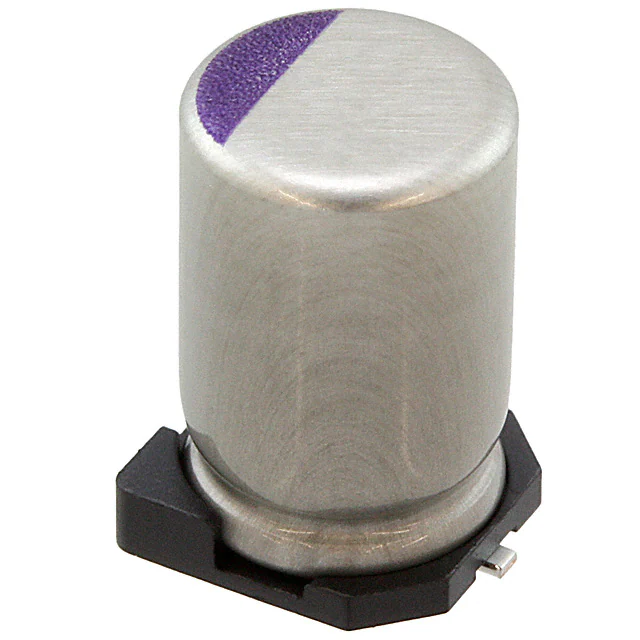

16SVPE180MCAP ALUM POLY 180UF 20% 16V SMD |
3,528 |
|
Datasheet |
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 223 mA @ 120 Hz | 4.46 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
