Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-GX0D471RCAP ALUM POLY 470UF 20% 2V SMD |
37,501 |
|
Datasheet |
SP-Cap GX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

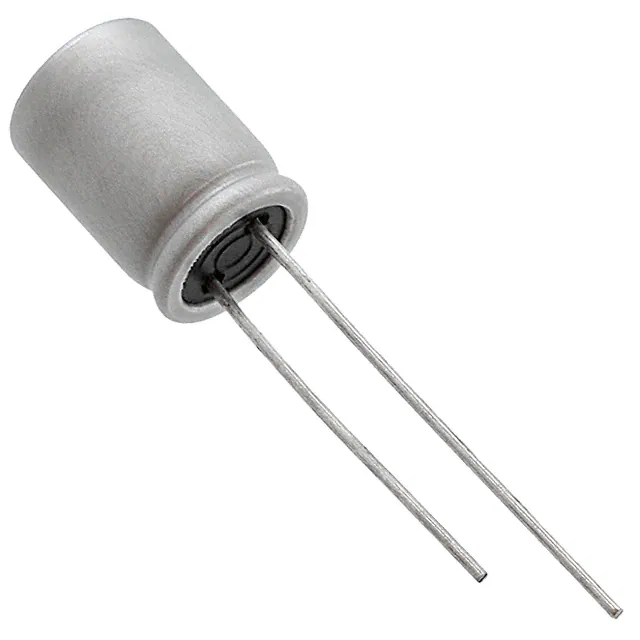

35SEPF82M+TSSCAP ALUM POLY 82UF 20% 35V TH |
10,212 |
|
Datasheet |
OS-CON™, SEPF | Cut Tape (CT) | Active | Polymer | 82 µF | ±20% | 35 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
EEF-SX0D331RCAP ALUM POLY 330UF 20% 2V SMD |
3,450 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Not For New Designs | Polymer | 330 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount |
|
|
EEF-GX0E471RCAP ALUM POLY 470UF 20% 2.5V SMD |
28,937 |
|
Datasheet |
SP-Cap GX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-SX0D471ERCAP ALUM POLY 470UF 20% 2V SMD |
14,898 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-SX0E471E4CAP ALUM POLY 470UF 20% 2.5V SMD |
98,407 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

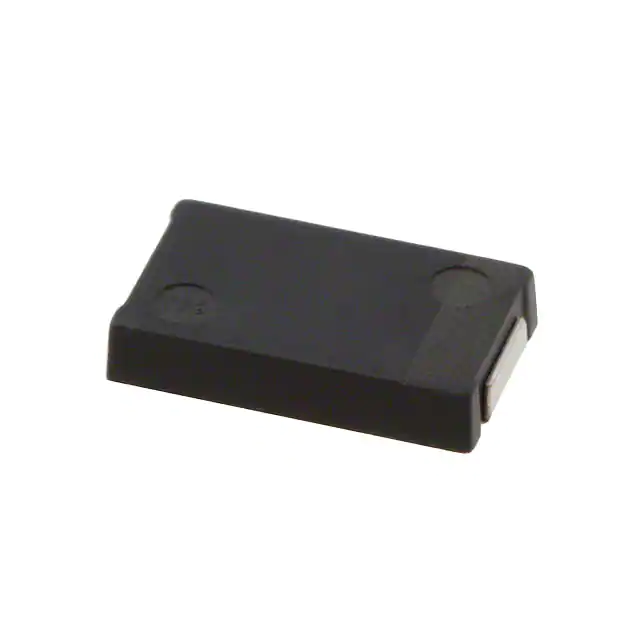

EEF-CT0J101RCAP ALUM POLY 100UF 20% 6.3V SMD |
5,550 |
|
Datasheet |
SP-Cap CT | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
50PZF100M10X9CAP ALUM HYBRID 100UF 20% 50V TH |
768 |
|
Datasheet |
PZF | Bulk | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole |
|
PCG1A101MCL1GSCAP ALUM POLY 100UF 20% 10V SMD |
3,682 |
|
Datasheet |
PCG | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 10 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
EEH-ZC1H330XPCAP ALUM HYBRID 33UF 20% 50V SMD |
1,180 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 110 mA @ 100 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
106XMPL016MG19CAP ALUM POLY 10UF 20% 16V SMD |
10,326 |
|
Datasheet |
XMPL | Cut Tape (CT) | Active | Polymer | 10 µF | ±20% | 16 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | Decoupling | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|

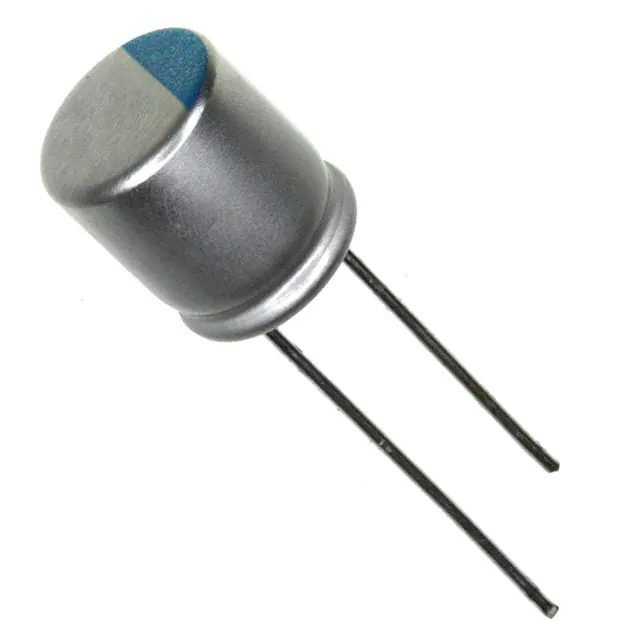

APSG160ELL222MJ20SCAP ALUM POLY 2200UF 20% 16V TH |
8,202 |
|
Datasheet |
NPCAP™-PSG | Bulk | Active | Polymer | 2200 µF | ±20% | 16 V | 8mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
|
35SVPK47MCAP ALUM POLY 47UF 20% 35V SMD |
365 |
|
Datasheet |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 35 V | 27mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 46.5 mA @ 120 Hz | 930 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
35SVPF82MCAP ALUM POLY 82UF 20% 35V SMD |
3,785 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-CX1E330RCAP ALUM POLY 33UF 20% 25V SMD |
50,533 |
|
Datasheet |
SP-Cap CX | Tape & Reel (TR) | Not For New Designs | Polymer | 33 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
|
EEF-GX0D561LCAP ALUM POLY 560UF 20% 2V SMD |
28,615 |
|
Datasheet |
SP-Cap GX | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-GX0E471LCAP ALUM POLY 470UF 20% 2.5V SMD |
22,708 |
|
Datasheet |
SP-Cap GX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
100SXV15MXCAP ALUM POLY 15UF 20% 100V SMD |
5,235 |
|
Datasheet |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 15 µF | ±20% | 100 V | 60mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEF-SX0J121E7CAP ALUM POLY 120UF 20% 6.3V SMD |
19,032 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
20SVP150MCAP ALUM POLY 150UF 20% 20V SMD |
6,527 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 216 mA @ 120 Hz | 4.32 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
