Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B40920A7337M000CAP ALUMHYB 330UF 20% 35V SMD |
101 |
|
Datasheet |
B40920 | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

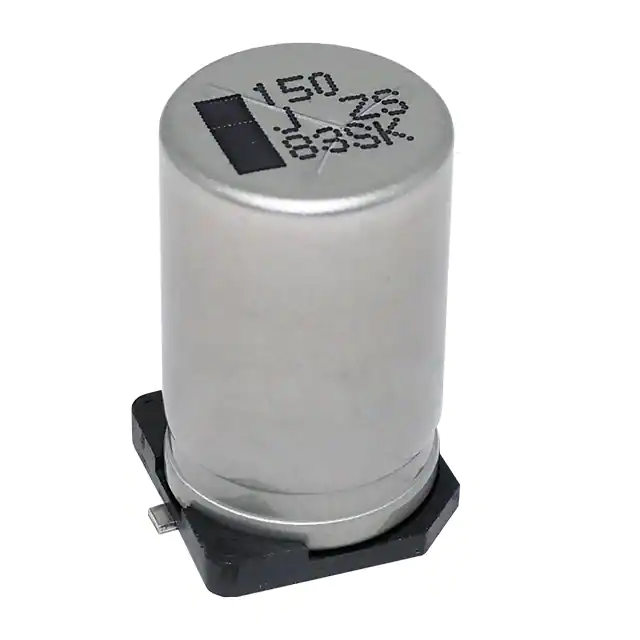

EEH-ZS1J151PCAP ALUMHYB 150UF 20% 63V SMD |
791 |
|
Datasheet |
ZS | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 63 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-SX0D471E4CAP ALUM POLY 470UF 20% 2V SMD |
108 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
63PZJ150M10X15CAP ALUM HYBRID 150UF 20% 63V TH |
953 |
|
Datasheet |
PZJ | Bulk | Active | Hybrid | 150 µF | ±20% | 63 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 165 mA @ 100 Hz | 3.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole |
|
PCR1H820MCL1GSCAP ALUM POLY 82UF 20% 50V SMD |
6,546 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 50 V | 34mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

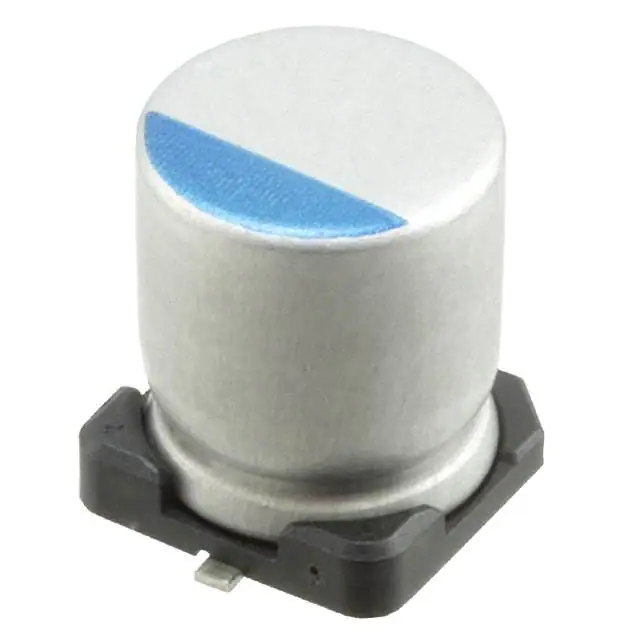

PCV1H470MCL7GSCAP ALUM POLY 47UF 20% 50V SMD |
6,279 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

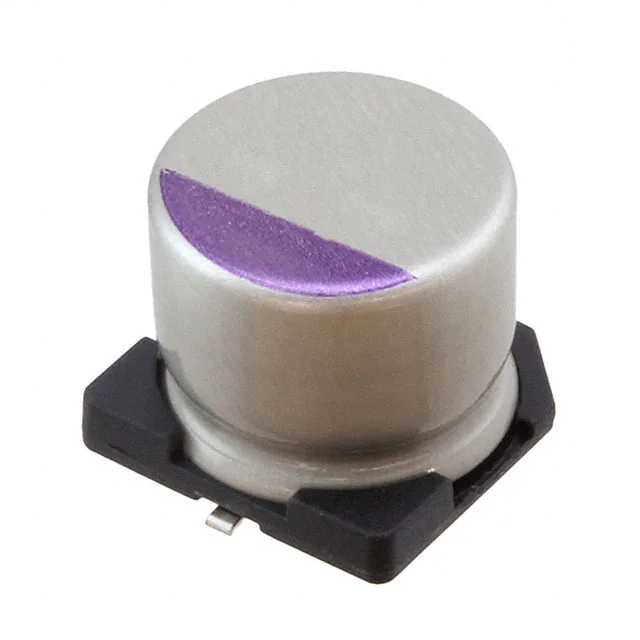

63SXV33MCAP ALUM POLY 33UF 20% 63V SMD |
2,956 |
|
Datasheet |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 63 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 147.5 mA @ 120 Hz | 2.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZA1J560PCAP ALUM HYBRID 56UF 20% 63V SMD |
3,470 |
|
Datasheet |
ZA | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

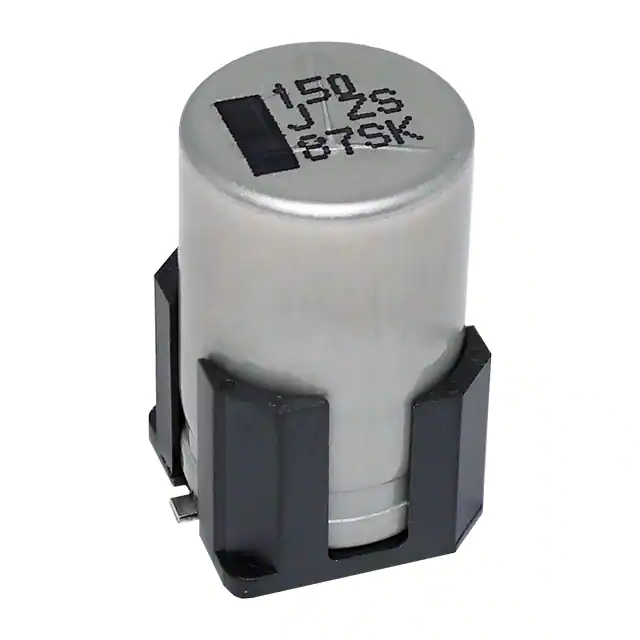

EEH-ZS1H221VCAP ALUMHYB 220UF 20% 50V SMD |
1,056 |
|
Datasheet |
ZS, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 50 V | 13mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 555 mA @ 100 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

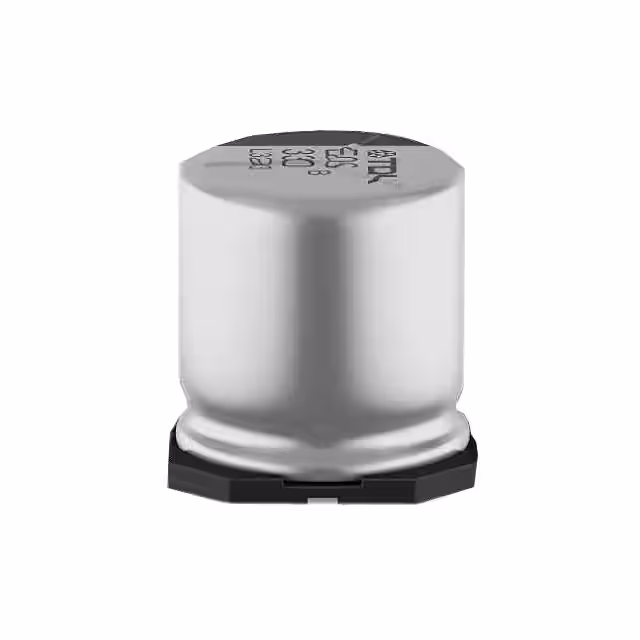

B40921A5567M000CAP ALUMHYB 560UF 20% 25V SMD |
226 |
|
Datasheet |
B40921 | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

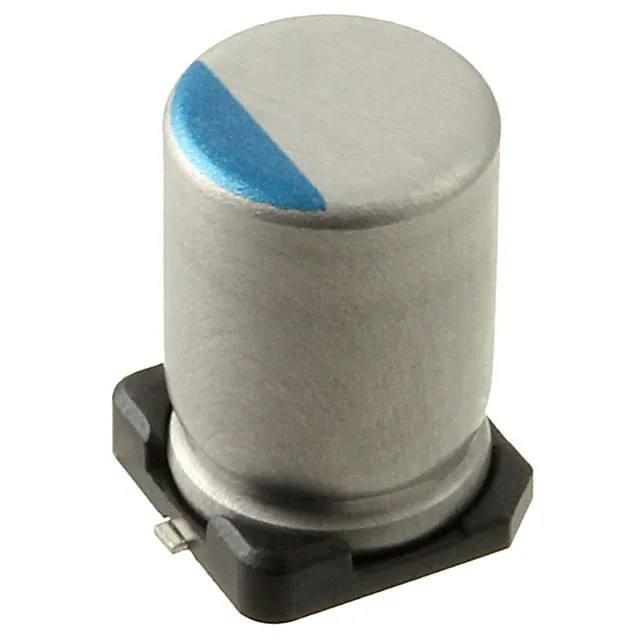

PCR1C471MCL6GSCAP ALUM POLY 470UF 20% 16V SMD |
8,701 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 16 V | 17mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

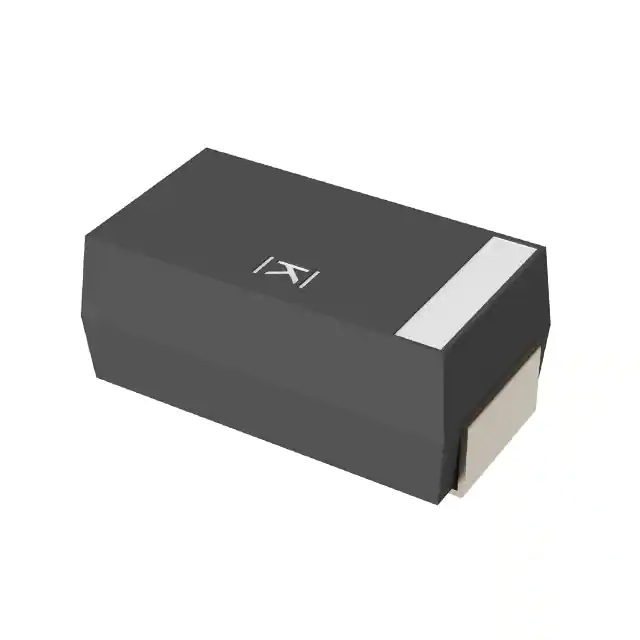

A700D157M006ATE010CAP ALUM POLY 150UF 20% 6.3V SMD |
3,226 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCR1J470MCL1GSCAP ALUM POLY 47UF 20% 63V SMD |
3,194 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCR1H121MCL2GSCAP ALUM POLY 120UF 20% 50V SMD |
6,269 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 50 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-JZ0D561RBCAP ALUM POLY 560UF 20% 2V SMD |
1,750 |
|
Datasheet |
SP-Cap JZ | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 3mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.091" (2.30mm) | - | Surface Mount |
|
PCR1H121MCL1GSCAP ALUM POLY 120UF 20% 50V SMD |
7,985 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 50 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

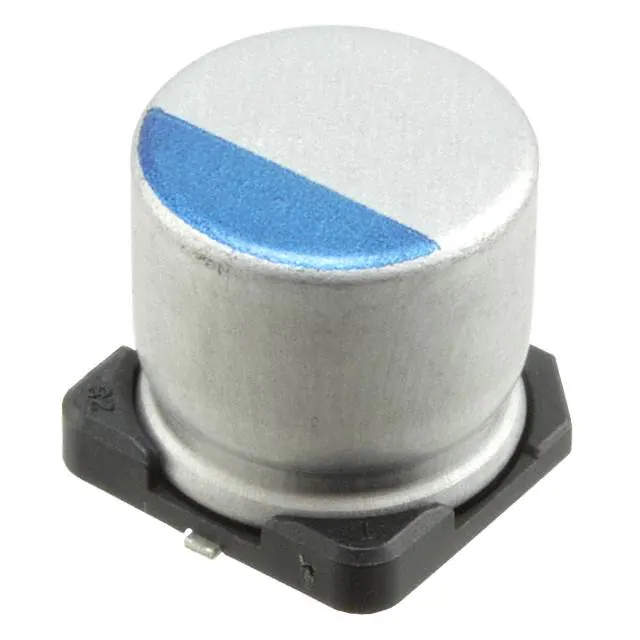

PCV1J330MCL1GSCAP ALUM POLY 33UF 20% 63V SMD |
3,999 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 63 V | 31mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1H470MCL2GSCAP ALUM POLY 47UF 20% 50V SMD |
500 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 37mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV1E181MCL1GSCAP ALUM POLY 180UF 20% 25V SMD |
5,095 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 28mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

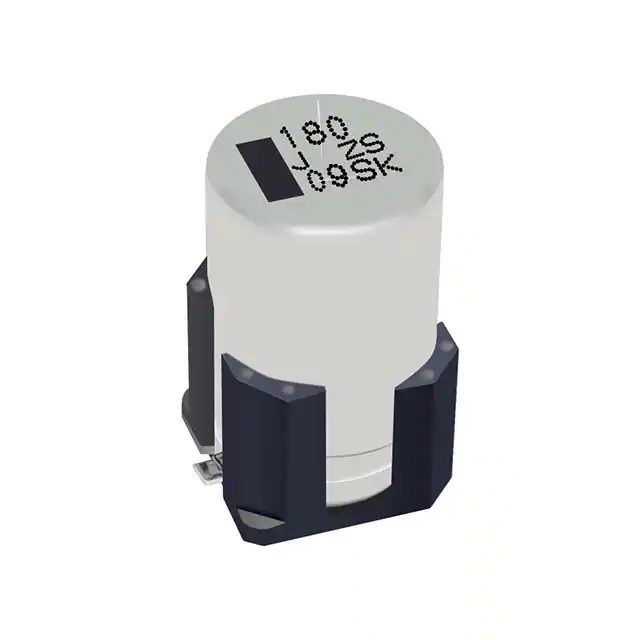

EEH-ZS1E102UVCAP ALUMHYB 1000UF 20% 25V SMD |
335 |
|
Datasheet |
ZSU Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 1000 µF | ±20% | 25 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 800 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.673" (17.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
