    ZF Electronics AN920036

    Part No.:
    AN920036
    Manufacturer:
    ZF Electronics
    Category:
    Angle, Linear Position Measuring
    Package:
    Box with Wire Leads
    Datasheet:
    KATY Electronic Technology Co., LTDAN920036.pdf
    Description:

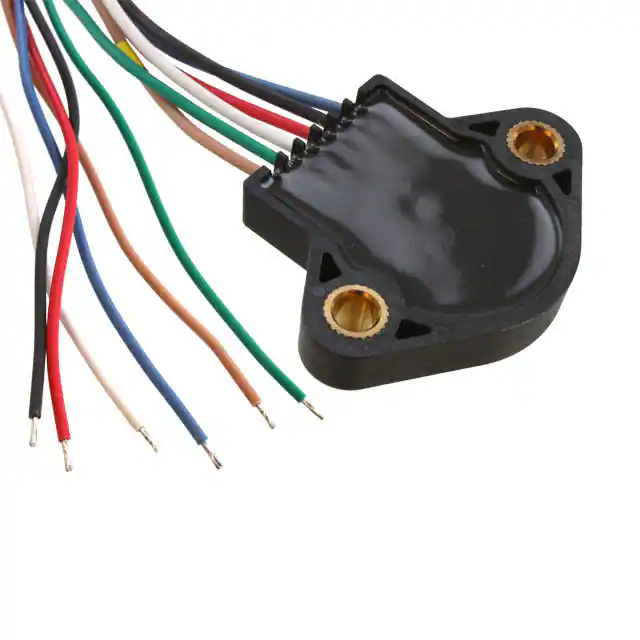

    SENSOR ANGLE 90DEG WIRE LEADS
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    ZF Electronics
    Package/Case:
    Box with Wire Leads
    Series:
    AN9
    Packaging:
    Bulk
    Product Status:
    Active
    Programmable:
    -
    For Measuring:
    Angle
    Technology:
    Hall Effect
    Rotation Angle - Electrical, Mechanical:
    0° ~ 90°, Continuous
    Linear Range:
    -
    Output:
    Analog Voltage
    Output Signal:
    Clockwise Increase
    Actuator Type:
    External Magnet, Not Included
    Linearity:
    ±3.5%
    Resistance:
    -
    Resistance Tolerance:
    -
    Voltage - Supply:
    5V
    Mounting Type:
    Chassis Mount
    Termination Style:
    Wire Leads
    Operating Temperature:
    -40°C ~ 125°C
    Grade:
    -
    Qualification:
    -
    Supplier Device Package:
    -
