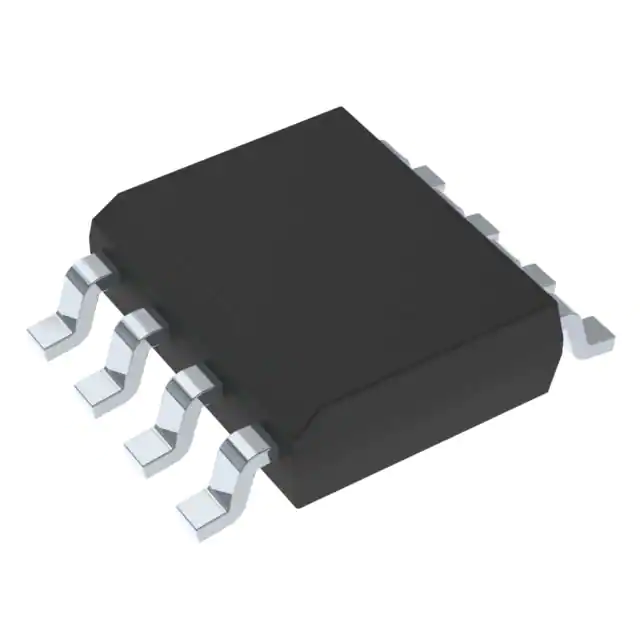

Taiwan Semiconductor Corporation TSM650N15CS
- Part No.:
- TSM650N15CS
- Manufacturer:
- Taiwan Semiconductor Corporation
- Category:
- FETs, MOSFETs
- Package:
- 8-SOIC (0.154", 3.90mm Width)
- Description:
- 150V, 9A, SINGLE N-CHANNEL POWER
- Quantity:
- Payment:
- Shipping:
Product details
- Specifications
- FAQ
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taiwan Semiconductor Corporation
- Series:
- -
- Package/Case:
- 8-SOIC (0.154", 3.90mm Width)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- FET Type:
- N-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 150 V
- Current - Continuous Drain (Id) @ 25°C:
- 4A (Ta), 9A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):
- 6V, 10V
- Rds On (Max) @ Id, Vgs:
- 65mOhm @ 4A, 10V
- Vgs(th) (Max) @ Id:
- 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:
- 37 nC @ 10 V
- Vgs (Max):
- ±20V
- Input Capacitance (Ciss) (Max) @ Vds:
- 1783 pF @ 75 V
- FET Feature:
- -
- Power Dissipation (Max):
- 2.2W (Ta), 12.5W (Tc)
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-SOP
