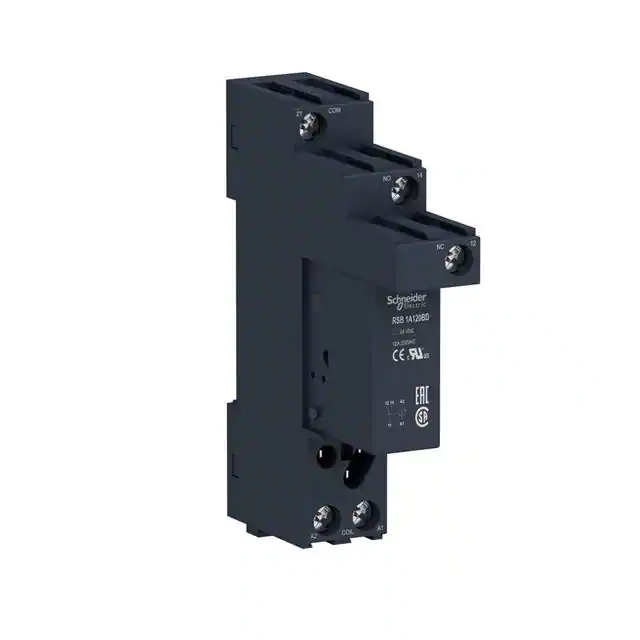

    Schneider Electric RSB1A120BD

    Part No.:
    RSB1A120BD
    Manufacturer:
    Schneider Electric
    Category:
    Power Relays, Over 2 Amps
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDRSB1A120BD.pdf
    Description:
    HARMONY, INTERFACE PLUG-IN RELAY
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Schneider Electric
    Series:
    Harmony
    Packaging:
    Box
    Product Status:
    Active
    Mounting Type:
    Socketable
    Coil Voltage:
    24VDC
    Contact Form:
    SPDT (1 Form C)
    Contact Rating (Current):
    12 A
    Switching Voltage:
    300VDC - Max
    Load - Max Switching:
    3600VA
    Coil Current:
    16.7 mA
    Coil Type:
    Non Latching
    Features:
    -
    Termination Style:
    Plug In
    Seal Rating:
    -
    Coil Insulation:
    -
    Must Operate Voltage:
    -
    Must Release Voltage:
    2.4 VDC
    Operate Time:
    20 ms
    Release Time:
    20 ms
    Operating Temperature:
    -40°C ~ 85°C
    Contact Material:
    Silver Nickel (AgNi)
    Relay Type:
    General Purpose
    Grade:
    -
    Qualification:
    -
