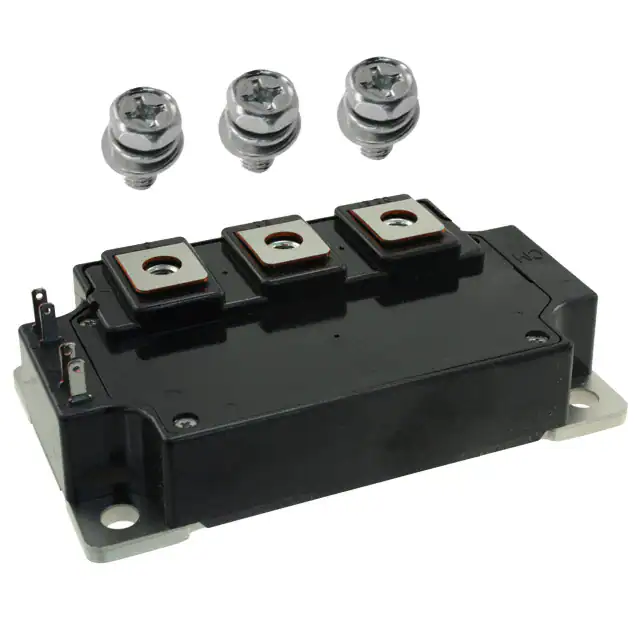

    Powerex Inc. CM200DU-24F

    Part No.:
    CM200DU-24F
    Manufacturer:
    Powerex Inc.
    Category:
    IGBT Modules
    Package:
    Module
    Description:
    IGBT MOD 1200V 200A 890W
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Powerex Inc.
    Series:
    IGBTMOD™
    Package/Case:
    Module
    Packaging:
    Bulk
    Product Status:
    Obsolete
    IGBT Type:
    Trench
    Configuration:
    Half Bridge
    Voltage - Collector Emitter Breakdown (Max):
    1200 V
    Current - Collector (Ic) (Max):
    200 A
    Power - Max:
    890 W
    Vce(on) (Max) @ Vge, Ic:
    2.4V @ 15V, 200A
    Current - Collector Cutoff (Max):
    1 mA
    Input Capacitance (Cies) @ Vce:
    78 nF @ 10 V
    Input:
    Standard
    NTC Thermistor:
    No
    Operating Temperature:
    -40°C ~ 150°C (TJ)
    Mounting Type:
    Chassis Mount
    Supplier Device Package:
    Module
