    Picker Components PC730-2C-C1-240A

    Part No.:
    PC730-2C-C1-240A
    Manufacturer:
    Picker Components
    Category:
    Power Relays, Over 2 Amps
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDPC730-2C-C1-240A.pdf
    Description:
    RELAY GEN PURPOSE DPDT 30A 240V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Picker Components
    Series:
    PC730
    Packaging:
    Bag
    Product Status:
    Active
    Mounting Type:
    Chassis Mount
    Coil Voltage:
    240VAC
    Contact Form:
    DPDT (2 Form C)
    Contact Rating (Current):
    30 A
    Switching Voltage:
    330VAC, 36VDC - Max
    Load - Max Switching:
    9900VA, 1080W
    Coil Current:
    49.8 mA
    Coil Type:
    Non Latching
    Features:
    -
    Termination Style:
    Quick Connect - 0.250" (6.3mm)
    Seal Rating:
    -
    Coil Insulation:
    Class B
    Must Operate Voltage:
    192 VAC
    Must Release Voltage:
    72 VAC
    Operate Time:
    25 ms
    Release Time:
    15 ms
    Operating Temperature:
    -25°C ~ 55°C
    Contact Material:
    Silver Cadmium Oxide (AgCdO)
    Relay Type:
    General Purpose
    Grade:
    -
    Qualification:
    -

    1. How to order PC730-2C-C1-240A on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that PC730-2C-C1-240A is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the PC730-2C-C1-240A. All suppliers must pass our qualification reviews before they can publish their products including PC730-2C-C1-240A on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of PC730-2C-C1-240A products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the PC730-2C-C1-240A price and inventory displayed accurate?

    The price and inventory of PC730-2C-C1-240A fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of PC730-2C-C1-240A?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the PC730-2C-C1-240A we delivered, we will accept the replacement or return of the PC730-2C-C1-240A only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of PC730-2C-C1-240A.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as PC730-2C-C1-240A pin diagram, PC730-2C-C1-240A datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

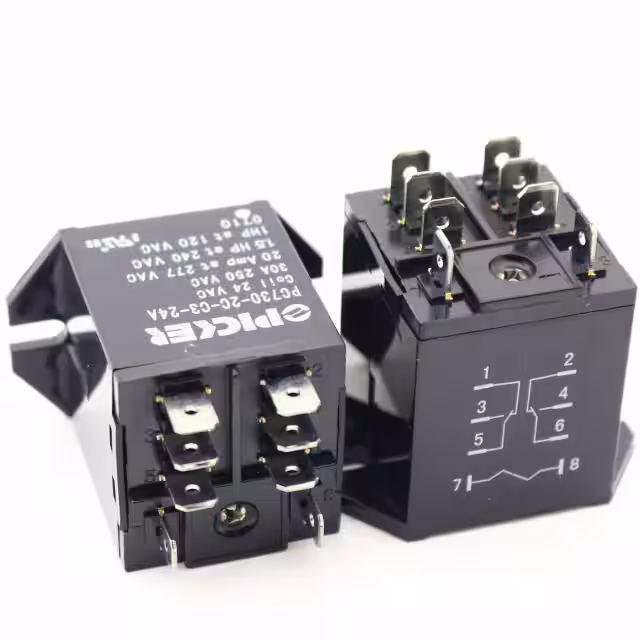

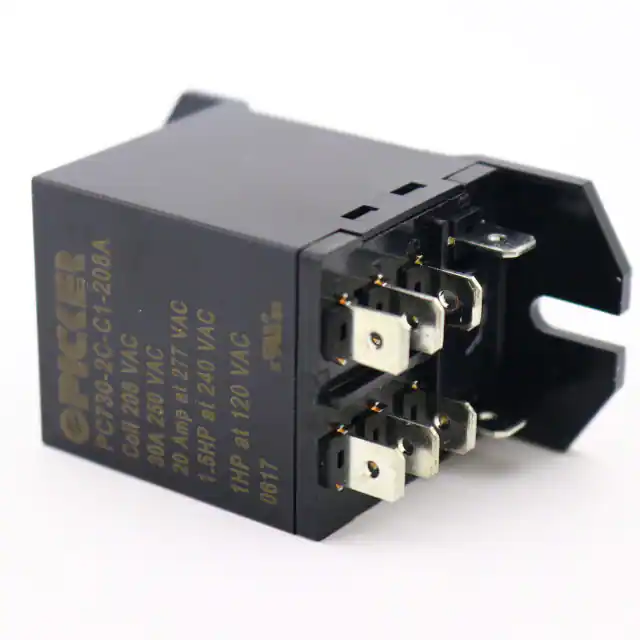

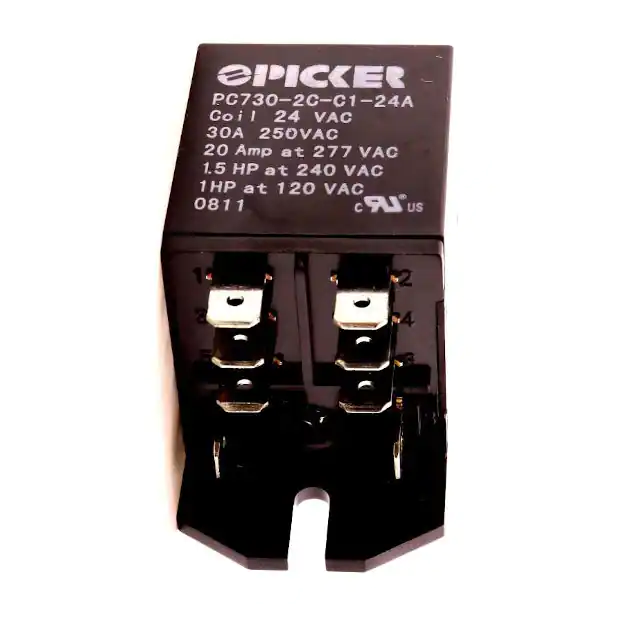

    Image PC730-2C-C1-240A PC730-2C-C3-24A PC730-2C-C3-24D PC730-2C-C1-208A PC730-2C-C1-24A
    Part Number PC730-2C-C1-240A PC730-2C-C3-24A PC730-2C-C3-24D PC730-2C-C1-208A PC730-2C-C1-24A
    Manufacturer Picker Components Picker Components Picker Components Picker Components Picker Components
    Series PC730 PC730 PC730 PC730 PC730
    Packaging Bag Bag Bag Bag Bag
    Product Status Active Active Active Active Active
    Mounting Type Chassis Mount Chassis Mount Chassis Mount Chassis Mount Chassis Mount
    Coil Voltage 240VAC 24VAC 24VDC 208VAC 24VAC
    Contact Form DPDT (2 Form C) DPDT (2 Form C) DPDT (2 Form C) DPDT (2 Form C) DPDT (2 Form C)
    Contact Rating (Current) 30 A 30 A 30 A 30 A 30 A
    Switching Voltage 330VAC, 36VDC - Max 330VAC, 36VDC - Max 330VAC, 36VDC - Max 330VAC, 36VDC - Max 330VAC, 36VDC - Max
    Load - Max Switching 9900VA, 1080W 9900VA, 1080W 9900VA, 1080W 9900VA, 1080W 9900VA, 1080W
    Coil Current 49.8 mA 500 mA 83.3 mA 57.4 mA 500 mA
    Coil Type Non Latching Non Latching Non Latching Non Latching Non Latching
    Features - - - - -
    Termination Style Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm)
    Seal Rating - - - - -
    Coil Insulation Class B Class B Class B Class B Class B
    Must Operate Voltage 192 VAC 19 VAC 18 VDC 166 VAC 19 VAC
    Must Release Voltage 72 VAC 7 VAC 2 VDC 62 VAC 7 VAC
    Operate Time 25 ms 25 ms 25 ms 25 ms 25 ms
    Release Time 15 ms 15 ms 15 ms 15 ms 15 ms
    Operating Temperature -25°C ~ 55°C -25°C ~ 55°C -25°C ~ 55°C -25°C ~ 55°C -25°C ~ 55°C
    Contact Material Silver Cadmium Oxide (AgCdO) Silver Cadmium Oxide (AgCdO) Silver Cadmium Oxide (AgCdO) Silver Cadmium Oxide (AgCdO) Silver Cadmium Oxide (AgCdO)
    Relay Type General Purpose General Purpose General Purpose General Purpose General Purpose
    Grade - - - - -
    Qualification - - - - -
