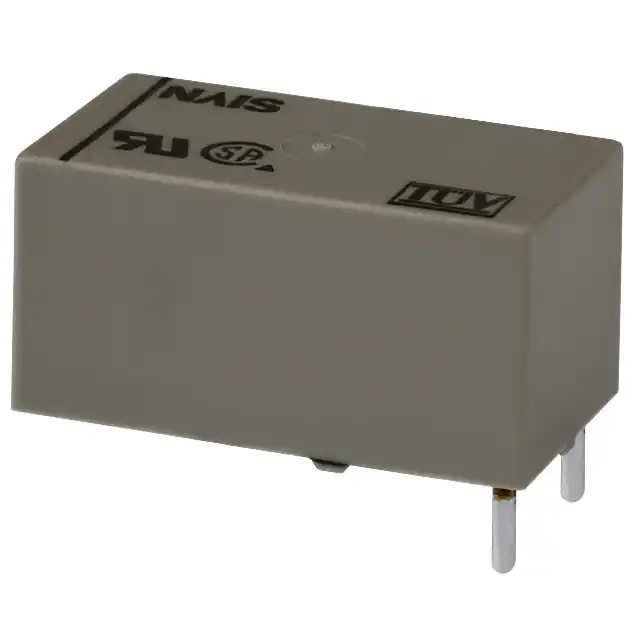

    Panasonic Electric Works DSP1A-DC24V

    Part No.:
    DSP1A-DC24V
    Manufacturer:
    Panasonic Electric Works
    Category:
    Power Relays, Over 2 Amps
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDDSP1A-DC24V.pdf
    Description:
    RELAY GEN PURPOSE SPST 8A 24V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Panasonic Electric Works
    Series:
    DSP
    Packaging:
    Bulk
    Product Status:
    Active
    Mounting Type:
    Through Hole
    Coil Voltage:
    24VDC
    Contact Form:
    SPST-NO (1 Form A)
    Contact Rating (Current):
    8 A
    Switching Voltage:
    250VAC, 125VDC - Max
    Load - Max Switching:
    2000VA, 1000W
    Coil Current:
    12.5 mA
    Coil Type:
    Non Latching
    Features:
    -
    Termination Style:
    PC Pin
    Seal Rating:
    Sealed - Fully
    Coil Insulation:
    -
    Must Operate Voltage:
    19.2 VDC
    Must Release Voltage:
    2.4 VDC
    Operate Time:
    10 ms
    Release Time:
    5 ms
    Operating Temperature:
    -40°C ~ 60°C
    Contact Material:
    Silver Tin Oxide (AgSnO)
    Relay Type:
    General Purpose
    Grade:
    -
    Qualification:
    -

    1. How to order DSP1A-DC24V on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that DSP1A-DC24V is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the DSP1A-DC24V. All suppliers must pass our qualification reviews before they can publish their products including DSP1A-DC24V on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of DSP1A-DC24V products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the DSP1A-DC24V price and inventory displayed accurate?

    The price and inventory of DSP1A-DC24V fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of DSP1A-DC24V?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the DSP1A-DC24V we delivered, we will accept the replacement or return of the DSP1A-DC24V only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of DSP1A-DC24V.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as DSP1A-DC24V pin diagram, DSP1A-DC24V datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

    Image DSP1A-DC24V DSP1A-DC5V DSP1A-DC12V DSP1A-DC9V DSP1A-DC24V-R
    Part Number DSP1A-DC24V DSP1A-DC5V DSP1A-DC12V DSP1A-DC9V DSP1A-DC24V-R
    Manufacturer Panasonic Electric Works Panasonic Electric Works Panasonic Electric Works Panasonic Electric Works Panasonic Electric Works
    Series DSP DSP DSP DSP DSP
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Active Active Active Active Active
    Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
    Coil Voltage 24VDC 5VDC 12VDC 9VDC 24VDC
    Contact Form SPST-NO (1 Form A) SPST-NO (1 Form A) SPST-NO (1 Form A) SPST-NO (1 Form A) SPST-NO (1 Form A)
    Contact Rating (Current) 8 A 8 A 8 A 8 A 8 A
    Switching Voltage 250VAC, 125VDC - Max 250VAC, 125VDC - Max 250VAC, 125VDC - Max 250VAC, 125VDC - Max 250VAC, 125VDC - Max
    Load - Max Switching 2000VA, 1000W 2000VA, 1000W 2000VA, 1000W 2000VA, 1000W 2000VA, 1000W
    Coil Current 12.5 mA 60 mA 25 mA 33.3 mA 12.5 mA
    Coil Type Non Latching Non Latching Non Latching Non Latching Non Latching
    Features - - - - Reverse Coil Polarity
    Termination Style PC Pin PC Pin PC Pin PC Pin PC Pin
    Seal Rating Sealed - Fully Sealed - Fully Sealed - Fully Sealed - Fully Sealed - Fully
    Coil Insulation - - - - -
    Must Operate Voltage 19.2 VDC 4 VDC 9.6 VDC 7.2 VDC 19.2 VDC
    Must Release Voltage 2.4 VDC 0.5 VDC 1.2 VDC 0.9 VDC 2.4 VDC
    Operate Time 10 ms 10 ms 10 ms 10 ms 10 ms
    Release Time 5 ms 5 ms 5 ms 5 ms 5 ms
    Operating Temperature -40°C ~ 60°C -40°C ~ 60°C -40°C ~ 60°C -40°C ~ 60°C -40°C ~ 60°C
    Contact Material Silver Tin Oxide (AgSnO) Silver Tin Oxide (AgSnO) Silver Tin Oxide (AgSnO) Silver Tin Oxide (AgSnO) Silver Tin Oxide (AgSnO)
    Relay Type General Purpose General Purpose General Purpose General Purpose General Purpose
    Grade - - - - -
    Qualification - - - - -
