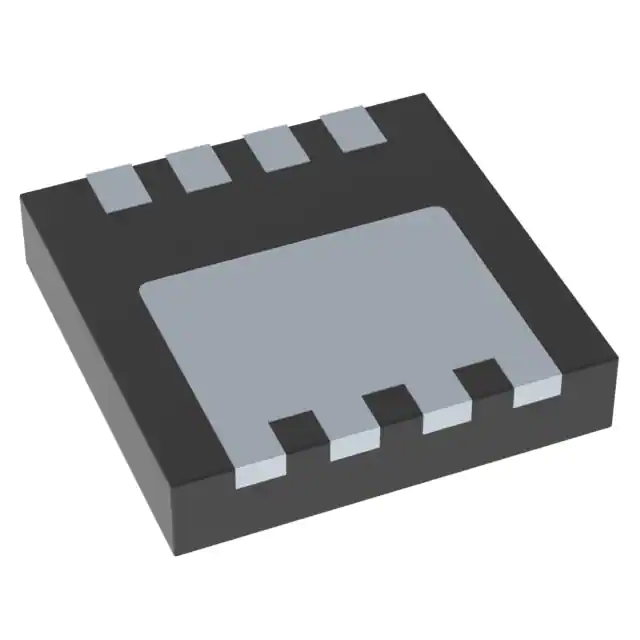

onsemi NTTFS1D8N02P1E

Name: NTTFS1D8N02P1E
Brand: onsemi
SKU: NTTFS1D8N02P1E
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: NTTFS1D8N02P1E

Manufacturer:: onsemi

Category:: FETs, MOSFETs

Package:: 8-PowerWDFN

Datasheet:: NTTFS1D8N02P1E.pdf

Description:: MOSFET N-CH 25V 20A/152A 8PQFN

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Product details

Specifications
FAQ
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: onsemi

Series:: -

Package/Case:: 8-PowerWDFN

Packaging:: Tape & Reel (TR)

Product Status:: Active

FET Type:: N-Channel

Technology:: MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):: 25 V

Current - Continuous Drain (Id) @ 25°C:: 20A (Ta), 152A (Tc)

Drive Voltage (Max Rds On, Min Rds On):: 4.5V, 10V

Rds On (Max) @ Id, Vgs:: 1.3mOhm @ 30A, 10V

Vgs(th) (Max) @ Id:: 2V @ 700µA

Gate Charge (Qg) (Max) @ Vgs:: 38 nC @ 10 V

Vgs (Max):: +16V, -12V

Input Capacitance (Ciss) (Max) @ Vds:: 3159 pF @ 13 V

FET Feature:: -

Power Dissipation (Max):: 800mW (Ta), 48W (Tc)

Operating Temperature:: -55°C ~ 150°C (TJ)

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: 8-PQFN (3.3x3.3)
