    Omron Electronics Inc-EMC Div D2D-1000

    Part No.:
    D2D-1000
    Manufacturer:
    Omron Electronics Inc-EMC Div
    Category:
    Limit Switches
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDD2D-1000.pdf
    Description:
    SWITCH SNAP ACTION SPDT 16A 250V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Omron Electronics Inc-EMC Div
    Series:
    D2D
    Packaging:
    Tray
    Product Status:
    Active
    Circuit:
    SPDT (DB/DM)
    Switch Function:
    On-Mom
    Current Rating (Amps):
    16A (AC)
    Voltage Rating - AC:
    250 V
    Voltage Rating - DC:
    -
    Actuator Type:
    Round (Pin Plunger)
    Mounting Type:
    Chassis Mount
    Termination Style:
    Quick Connect - 0.250" (6.3mm)
    Ingress Protection:
    IP40
    Features:
    -
    Operating Force:
    300gf
    Release Force:
    -
    Operating Position:
    0.625" (15.9mm)
    Pretravel:
    -
    Differential Travel:
    -
    Overtravel:
    0.090" (2.3mm)
    Operating Temperature:
    -25°C ~ 85°C

    1. How to order D2D-1000 on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that D2D-1000 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the D2D-1000. All suppliers must pass our qualification reviews before they can publish their products including D2D-1000 on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of D2D-1000 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the D2D-1000 price and inventory displayed accurate?

    The price and inventory of D2D-1000 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of D2D-1000?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the D2D-1000 we delivered, we will accept the replacement or return of the D2D-1000 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of D2D-1000.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as D2D-1000 pin diagram, D2D-1000 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

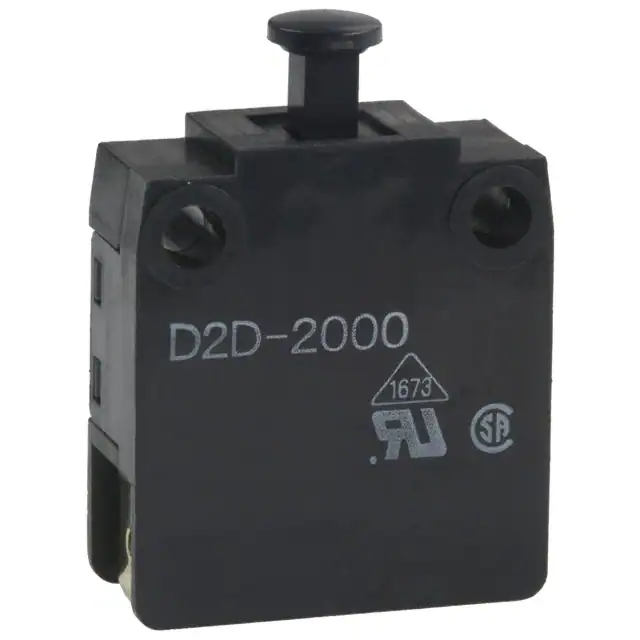

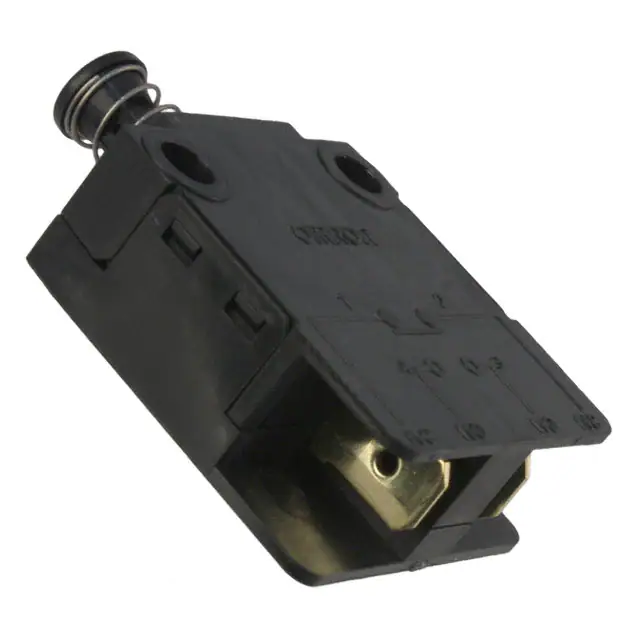

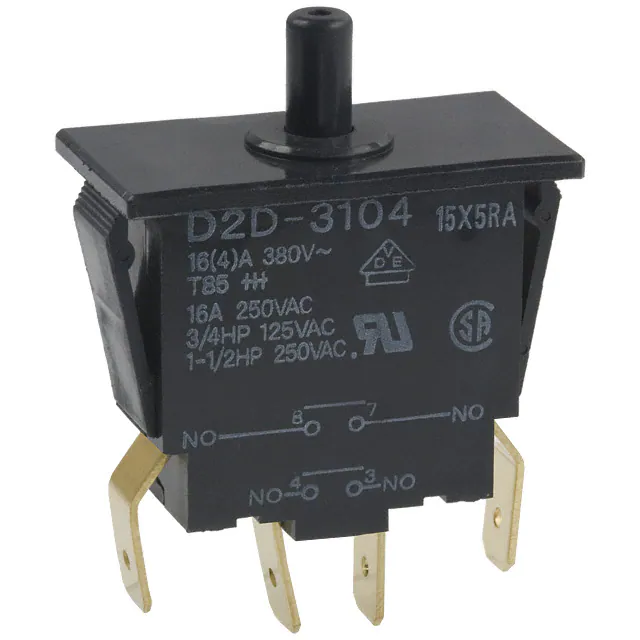

    Image D2D-1000 D2D-1001 D2D-2000 D2D-3104 D2D-1101
    Part Number D2D-1000 D2D-1001 D2D-2000 D2D-3104 D2D-1101
    Manufacturer Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div
    Series D2D D2D D2D D2D D2D
    Packaging Tray Bulk Tray Bulk Bulk
    Product Status Active Active Active Active Active
    Circuit SPDT (DB/DM) SPST-NO (DM) SPDT (DB/DM) DPST-NO (DM) SPST-NO (DM)
    Switch Function On-Mom Off-Mom On-Mom Off-Mom Off-Mom
    Current Rating (Amps) 16A (AC) 16A (AC) 10A (AC) 16A (AC) 16A (AC)
    Voltage Rating - AC 250 V 250 V 250 V 250 V 250 V
    Voltage Rating - DC - - - - -
    Actuator Type Round (Pin Plunger) Round (Pin Plunger) Round (Pin Plunger) Round (Pin Plunger) Round (Pin Plunger)
    Mounting Type Chassis Mount Chassis Mount Chassis Mount Panel Mount, Snap-In Panel Mount, Snap-In
    Termination Style Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm)
    Ingress Protection IP40 IP40 IP40 IP40 IP40
    Features - - Pull On Lock - -
    Operating Force 300gf 600gf 300gf 600gf 600gf
    Release Force - - - - -
    Operating Position 0.625" (15.9mm) 0.500" (12.7mm) 0.500" (12.7mm) 0.343" (8.7mm) 0.343" (8.7mm)
    Pretravel - - - - -
    Differential Travel - - - - -
    Overtravel 0.090" (2.3mm) 0.090" (2.3mm) 0.175" (4.5mm) 0.090" (2.3mm) 0.090" (2.3mm)
    Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
