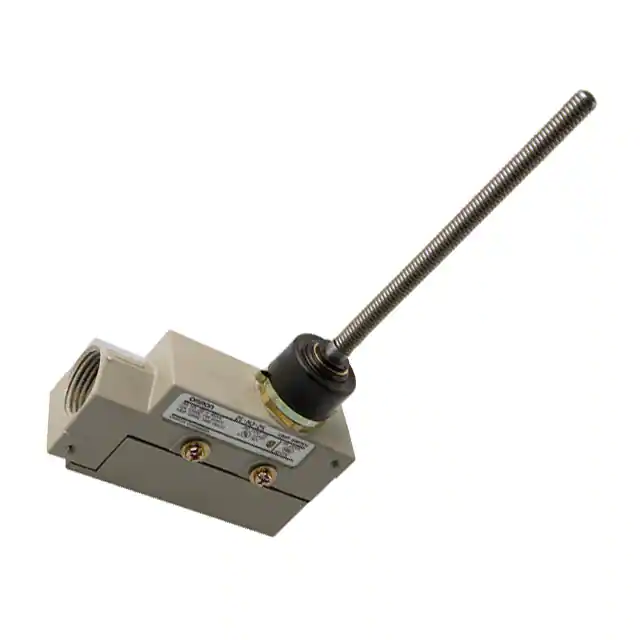

    Omron Automation and Safety ZE-NJ-2S

    Part No.:
    ZE-NJ-2S
    Manufacturer:
    Omron Automation and Safety
    Category:
    Limit Switches
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDZE-NJ-2S.pdf
    Description:
    SWITCH SNAP ACTION SPDT 15A 125V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Omron Automation and Safety
    Series:
    ZE
    Packaging:
    Bulk
    Product Status:
    Active
    Circuit:
    SPDT
    Switch Function:
    On-Mom
    Current Rating (Amps):
    15A (AC), 500mA (DC)
    Voltage Rating - AC:
    125 V
    Voltage Rating - DC:
    125 V
    Actuator Type:
    Spring, Coil
    Mounting Type:
    Chassis Mount
    Termination Style:
    Screw Terminal
    Ingress Protection:
    IP65 - Dust Tight, Water Resistant
    Features:
    -
    Operating Force:
    150gf
    Release Force:
    -
    Operating Position:
    -
    Pretravel:
    15°
    Differential Travel:
    -
    Overtravel:
    -
    Operating Temperature:
    -10°C ~ 80°C

    1. How to order ZE-NJ-2S on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that ZE-NJ-2S is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the ZE-NJ-2S. All suppliers must pass our qualification reviews before they can publish their products including ZE-NJ-2S on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of ZE-NJ-2S products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the ZE-NJ-2S price and inventory displayed accurate?

    The price and inventory of ZE-NJ-2S fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of ZE-NJ-2S?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the ZE-NJ-2S we delivered, we will accept the replacement or return of the ZE-NJ-2S only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of ZE-NJ-2S.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as ZE-NJ-2S pin diagram, ZE-NJ-2S datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

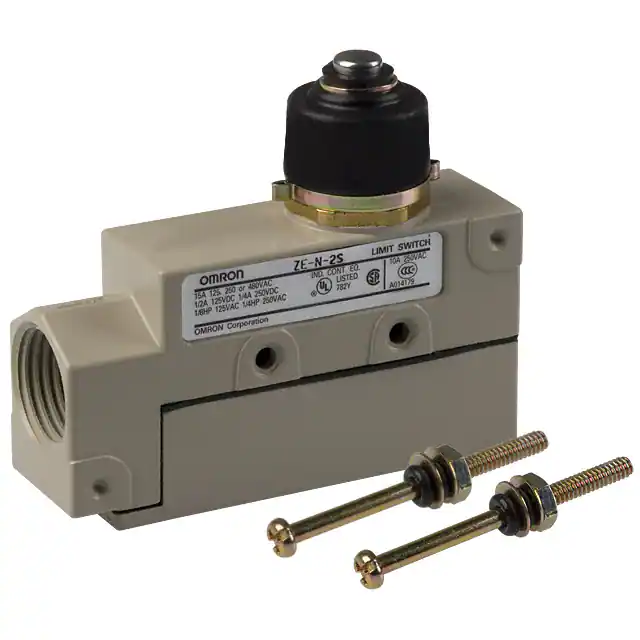

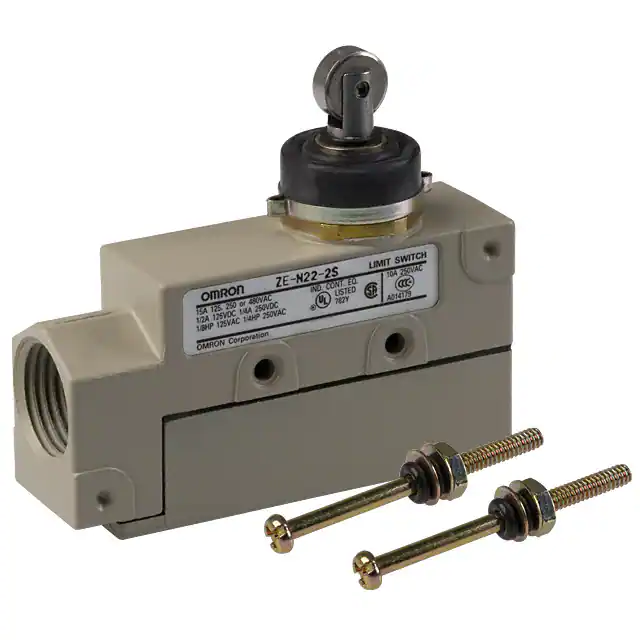

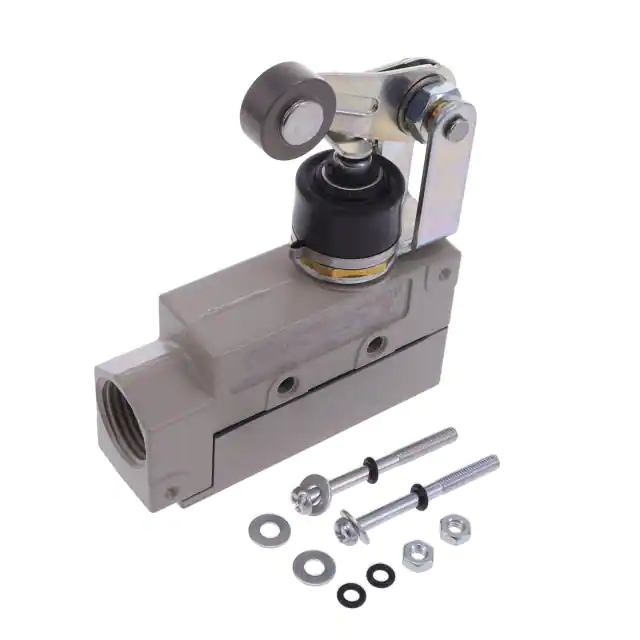

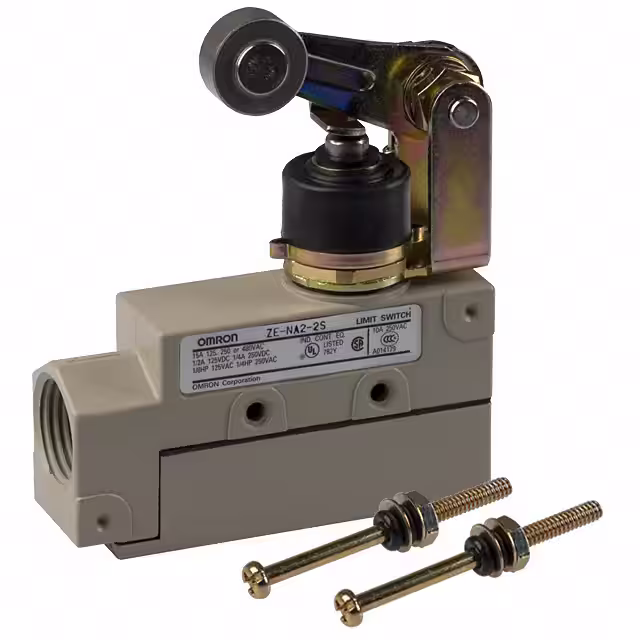

    Image ZE-NJ-2S ZE-NA2-2S ZE-N-2S ZE-N22-2S ZE-NA2-2
    Part Number ZE-NJ-2S ZE-NA2-2S ZE-N-2S ZE-N22-2S ZE-NA2-2
    Manufacturer Omron Automation and Safety Omron Automation and Safety Omron Automation and Safety Omron Automation and Safety Omron Automation and Safety
    Series ZE ZE ZE ZE ZE
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Active Active Active Active Active
    Circuit SPDT SPDT SPDT SPDT SPDT
    Switch Function On-Mom On-Mom On-Mom On-Mom On-Mom
    Current Rating (Amps) 15A (AC), 500mA (DC) 15A (AC), 500mA (DC) 15A (AC), 500mA (DC) 15A (AC), 500mA (DC) 15A (AC), 500mA (DC)
    Voltage Rating - AC 125 V 125 V 125 V 125 V 125 V
    Voltage Rating - DC 125 V 125 V 125 V 125 V 125 V
    Actuator Type Spring, Coil Lever, Roller Round (Pin Plunger) Roller Plunger Lever, Roller
    Mounting Type Chassis Mount Chassis Mount Chassis Mount Chassis Mount Chassis Mount
    Termination Style Screw Terminal Screw Terminal Screw Terminal Screw Terminal Screw Terminal
    Ingress Protection IP65 - Dust Tight, Water Resistant IP65 - Dust Tight, Water Resistant IP65 - Dust Tight, Water Resistant IP65 - Dust Tight, Water Resistant IP65 - Dust Tight, Water Resistant
    Features - - - - -
    Operating Force 150gf 640gf 800gf 500gf 640gf
    Release Force - 230gf 240gf 100gf 230gf
    Operating Position - - 1.805" (45.8mm) 1.957" (49.7mm) -
    Pretravel 15° 0.197" (5.0mm) 0.080" (2.0mm) 0.040" (1.0mm) 0.197" (5.0mm)
    Differential Travel - 0.016" (0.4mm) 0.004" (0.1mm) 0.005" (0.13mm) 0.016" (0.4mm)
    Overtravel - 0.235" (6.0mm) 0.197" (5.0mm) 0.138" (3.5mm) 0.235" (6.0mm)
    Operating Temperature -10°C ~ 80°C -10°C ~ 80°C -10°C ~ 80°C -10°C ~ 80°C -10°C ~ 80°C
