    Littelfuse Inc. MDSR-7-10-25

    Part No.:
    MDSR-7-10-25
    Manufacturer:
    Littelfuse Inc.
    Category:
    Magnetic, Reed Switches
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDMDSR-7-10-25.pdf
    Description:
    SWITCH REED SPST-NO 350MA 140V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Littelfuse Inc.
    Series:
    MDSR-7
    Packaging:
    Bulk
    Product Status:
    Active
    Type:
    Glass Body Reed
    Circuit:
    SPST-NO
    Operate Range:
    10 ~ 25AT
    Release Range:
    -
    Current - Switching:
    350mA (AC), 500mA (DC)
    Voltage - Switching AC:
    140 V
    Voltage - Switching DC:
    200 V
    Power - Rated:
    10W
    Operate Time:
    0.6 ms
    Release Time:
    0.2 ms
    Mounting Type:
    Through Hole
    Termination Style:
    Axial
    Length - Overall:
    1.590" (40.39mm)
    Size - Body:
    0.071" Dia x 0.500" L (1.80mm x 12.70mm)
    Height Above Board:
    -
    Operating Temperature:
    -40°C ~ 125°C
    Capacitance:
    0.3 pF
    Current - Carry:
    800mA (DC)

    1. How to order MDSR-7-10-25 on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that MDSR-7-10-25 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the MDSR-7-10-25. All suppliers must pass our qualification reviews before they can publish their products including MDSR-7-10-25 on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of MDSR-7-10-25 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the MDSR-7-10-25 price and inventory displayed accurate?

    The price and inventory of MDSR-7-10-25 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of MDSR-7-10-25?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the MDSR-7-10-25 we delivered, we will accept the replacement or return of the MDSR-7-10-25 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of MDSR-7-10-25.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as MDSR-7-10-25 pin diagram, MDSR-7-10-25 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

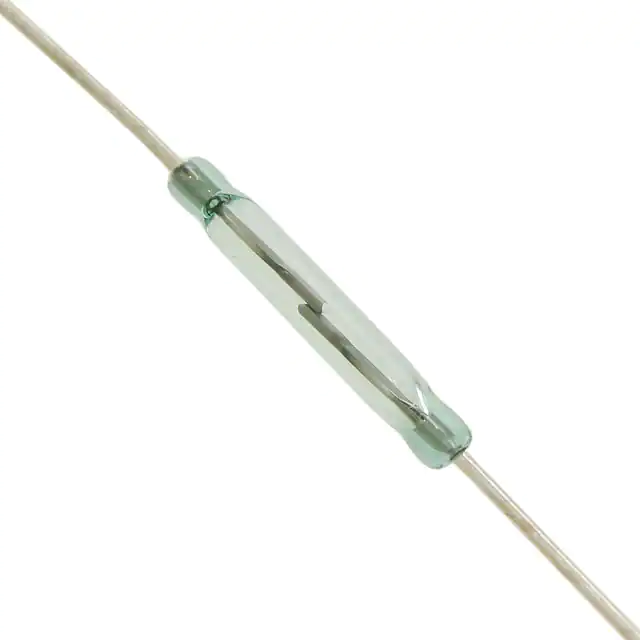

    Image MDSR-7-10-20 MDSR-7-10-25 MDSR-4-12-23 MDSR-7-20-25 MDSR-7-10-15
    Part Number MDSR-7-10-20 MDSR-7-10-25 MDSR-4-12-23 MDSR-7-20-25 MDSR-7-10-15
    Manufacturer Littelfuse Inc. Littelfuse Inc. Littelfuse Inc. Littelfuse Inc. Littelfuse Inc.
    Series MDSR-7 MDSR-7 MDSR-4 MDSR-7 MDSR-7
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Active Active Active Active Active
    Type Glass Body Reed Glass Body Reed Glass Body Reed Glass Body Reed Glass Body Reed
    Circuit SPST-NO SPST-NO SPST-NO SPST-NO SPST-NO
    Operate Range 10 ~ 20AT 10 ~ 25AT 12 ~ 23AT 20 ~ 25AT 10 ~ 15AT
    Release Range - - - - -
    Current - Switching 350mA (AC), 500mA (DC) 350mA (AC), 500mA (DC) 500mA (DC) 350mA (AC), 500mA (DC) 350mA (AC), 500mA (DC)
    Voltage - Switching AC 140 V 140 V - 140 V 140 V
    Voltage - Switching DC 200 V 200 V 200 V 200 V 200 V
    Power - Rated 10W 10W 10W 10W 10W
    Operate Time 0.6 ms 0.6 ms 0.6 ms 0.6 ms 0.6 ms
    Release Time 0.2 ms 0.2 ms 0.2 ms 0.2 ms 0.2 ms
    Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
    Termination Style Axial Axial Axial Axial Axial
    Length - Overall 1.590" (40.39mm) 1.590" (40.39mm) 1.590" (40.39mm) 1.590" (40.39mm) 1.590" (40.39mm)
    Size - Body 0.071" Dia x 0.500" L (1.80mm x 12.70mm) 0.071" Dia x 0.500" L (1.80mm x 12.70mm) 0.090" Dia x 0.600" L (2.28mm x 15.24mm) 0.071" Dia x 0.500" L (1.80mm x 12.70mm) 0.071" Dia x 0.500" L (1.80mm x 12.70mm)
    Height Above Board - - - - -
    Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
    Capacitance 0.3 pF 0.3 pF 0.2 pF 0.3 pF 0.3 pF
    Current - Carry 800mA (DC) 800mA (DC) 1.2A (DC) 800mA (DC) 800mA (DC)
