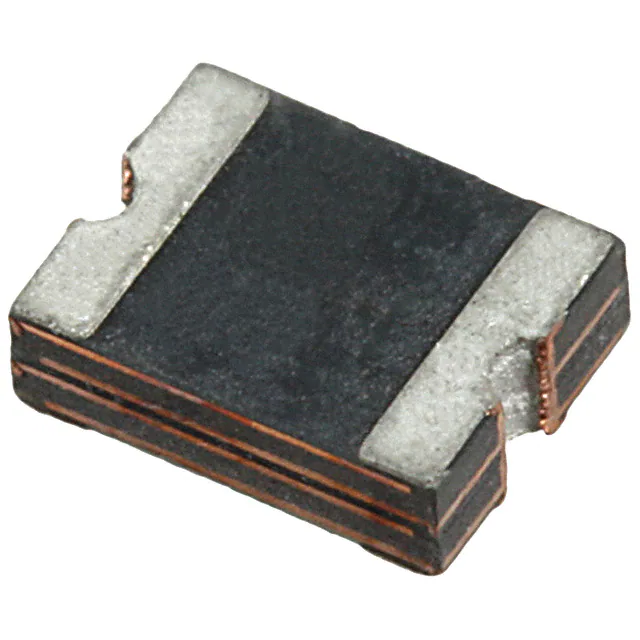

    Littelfuse Inc. 1210L050/30WR

    Part No.:
    1210L050/30WR
    Manufacturer:
    Littelfuse Inc.
    Category:
    PTC Resettable Fuses
    Package:
    1210 (3225 Metric), Concave
    Datasheet:
    KATY Electronic Technology Co., LTD1210L050/30WR.pdf
    Description:
    PTC RESET FUSE 30V 500MA 1210
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Littelfuse Inc.
    Package/Case:
    1210 (3225 Metric), Concave
    Series:
    POLY-FUSE®, 1210L
    Packaging:
    Tape & Reel (TR)
    Product Status:
    Active
    Type:
    Polymeric
    Voltage - Max:
    30V
    Current - Hold (Ih) (Max):
    500 mA
    Current - Trip (It):
    1 A
    Current - Max:
    40 A
    Time to Trip:
    150 ms
    Resistance - Initial (Ri) (Min):
    220 mOhms
    Resistance - Post Trip (R1) (Max):
    900 mOhms
    Resistance - 25°C (Typ):
    -
    Operating Temperature:
    -40°C ~ 85°C
    Grade:
    -
    Qualification:
    -
    Ratings:
    -
    Mounting Type:
    Surface Mount
    Size / Dimension:
    0.127" L x 0.102" W (3.22mm x 2.58mm)
    Height - Seated (Max):
    -
    Thickness (Max):
    0.049" (1.25mm)
    Lead Spacing:
    -

    1. How to order 1210L050/30WR on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that 1210L050/30WR is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the 1210L050/30WR. All suppliers must pass our qualification reviews before they can publish their products including 1210L050/30WR on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of 1210L050/30WR products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the 1210L050/30WR price and inventory displayed accurate?

    The price and inventory of 1210L050/30WR fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of 1210L050/30WR?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the 1210L050/30WR we delivered, we will accept the replacement or return of the 1210L050/30WR only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of 1210L050/30WR.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as 1210L050/30WR pin diagram, 1210L050/30WR datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

    Image 1210L050/30WR 1210L050YR 1210L050/30WR-A 1210L050YR-A
    Part Number 1210L050/30WR 1210L050YR 1210L050/30WR-A 1210L050YR-A
    Manufacturer Littelfuse Inc. Littelfuse Inc. Littelfuse Inc. Littelfuse Inc.
    Package/Case 1210 (3225 Metric), Concave 1210 (3225 Metric), Concave 1210 (3225 Metric), Concave 1210 (3225 Metric), Concave
    Series POLY-FUSE®, 1210L POLY-FUSE®, 1210L POLY-FUSE®, LoRho POLY-FUSE®, 1210L
    Packaging Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
    Product Status Active Active Active Active
    Type Polymeric Polymeric Polymeric Polymeric
    Voltage - Max 30V 13.2V 30V 13.2V
    Current - Hold (Ih) (Max) 500 mA 500 mA 500 mA 500 mA
    Current - Trip (It) 1 A 1 A 1 A 1 A
    Current - Max 40 A 100 A 40 A 100 A
    Time to Trip 150 ms 50 ms 150 ms 50 ms
    Resistance - Initial (Ri) (Min) 220 mOhms 250 mOhms 220 mOhms 250 mOhms
    Resistance - Post Trip (R1) (Max) 900 mOhms 900 mOhms 900 mOhms 900 mOhms
    Resistance - 25°C (Typ) - - - -
    Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
    Grade - - Automotive -
    Qualification - - AEC-Q200 -
    Ratings - - - -
    Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
    Size / Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm) 0.127" L x 0.102" W (3.22mm x 2.58mm) - 0.127" L x 0.101" W (3.22mm x 2.58mm)
    Height - Seated (Max) - - - -
    Thickness (Max) 0.049" (1.25mm) 0.033" (0.85mm) 0.049" (1.25mm) 0.033" (0.85mm)
    Lead Spacing - - - -
