Infineon Technologies AUIRF3805S-7TRL

Name: AUIRF3805S-7TRL
Brand: Infineon Technologies
SKU: AUIRF3805S-7TRL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: AUIRF3805S-7TRL

Manufacturer:: Infineon Technologies

Category:: FETs, MOSFETs

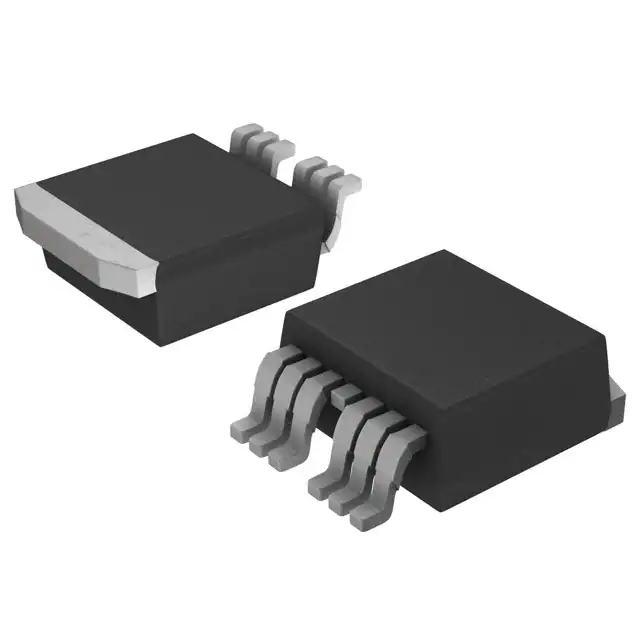

Package:: TO-263-7, D2PAK (6 Leads + Tab), TO-263CB

Datasheet:: AUIRF3805S-7TRL.pdf

Description:: MOSFET N-CH 55V 160A D2PAK

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Product details

Specifications
FAQ
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Infineon Technologies

Series:: HEXFET®

Package/Case:: TO-263-7, D2PAK (6 Leads + Tab), TO-263CB

Packaging:: Tape & Reel (TR)

Product Status:: Last Time Buy

FET Type:: N-Channel

Technology:: MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):: 55 V

Current - Continuous Drain (Id) @ 25°C:: 160A (Tc)

Drive Voltage (Max Rds On, Min Rds On):: 10V

Rds On (Max) @ Id, Vgs:: 2.6mOhm @ 140A, 10V

Vgs(th) (Max) @ Id:: 4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs:: 200 nC @ 10 V

Vgs (Max):: ±20V

Input Capacitance (Ciss) (Max) @ Vds:: 7820 pF @ 25 V

FET Feature:: -

Power Dissipation (Max):: 300W (Tc)

Operating Temperature:: -55°C ~ 175°C (TJ)

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: D2PAK (7-Lead)
