    IDEC RR2P-UAC120V

    Part No.:
    RR2P-UAC120V
    Manufacturer:
    IDEC
    Category:
    Power Relays, Over 2 Amps
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDRR2P-UAC120V.pdf
    Description:
    RELAY GEN PURPOSE DPDT 10A 120V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    IDEC
    Series:
    RR
    Packaging:
    Bulk
    Product Status:
    Active
    Mounting Type:
    Socketable
    Coil Voltage:
    120VAC
    Contact Form:
    DPDT (2 Form C)
    Contact Rating (Current):
    10 A
    Switching Voltage:
    240VAC, 30VDC - Max
    Load - Max Switching:
    2400VA, 300W
    Coil Current:
    20.5 mA
    Coil Type:
    Non Latching
    Features:
    -
    Termination Style:
    Plug In, 8 Pin (Octal)
    Seal Rating:
    -
    Coil Insulation:
    -
    Must Operate Voltage:
    96 VAC
    Must Release Voltage:
    36 VAC
    Operate Time:
    25 ms
    Release Time:
    25 ms
    Operating Temperature:
    -25°C ~ 40°C
    Contact Material:
    Silver (Ag)
    Relay Type:
    General Purpose
    Grade:
    -
    Qualification:
    -

    1. How to order RR2P-UAC120V on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that RR2P-UAC120V is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the RR2P-UAC120V. All suppliers must pass our qualification reviews before they can publish their products including RR2P-UAC120V on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of RR2P-UAC120V products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the RR2P-UAC120V price and inventory displayed accurate?

    The price and inventory of RR2P-UAC120V fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of RR2P-UAC120V?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the RR2P-UAC120V we delivered, we will accept the replacement or return of the RR2P-UAC120V only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of RR2P-UAC120V.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as RR2P-UAC120V pin diagram, RR2P-UAC120V datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

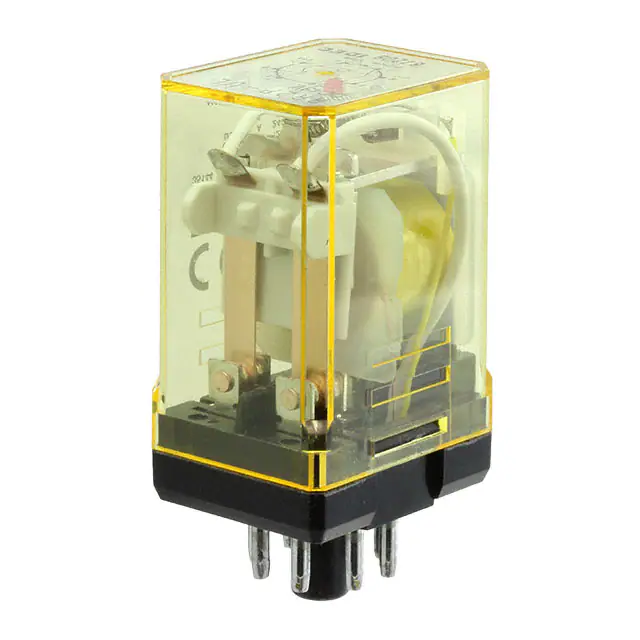

    Image RR2P-UDC12V RR2P-UAC120V RR2P-UCAC120V RR2P-ULDC24V RR2P-ULAC24V
    Part Number RR2P-UDC12V RR2P-UAC120V RR2P-UCAC120V RR2P-ULDC24V RR2P-ULAC24V
    Manufacturer IDEC IDEC IDEC IDEC IDEC
    Series RR RR RR RR RR
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Active Active Active Active Active
    Mounting Type Socketable Socketable Socketable Socketable Socketable
    Coil Voltage 12VDC 120VAC 120VAC 24VDC 24VAC
    Contact Form DPDT (2 Form C) DPDT (2 Form C) DPDT (2 Form C) DPDT (2 Form C) DPDT (2 Form C)
    Contact Rating (Current) 10 A 10 A 10 A 10 A 10 A
    Switching Voltage 240VAC, 30VDC - Max 240VAC, 30VDC - Max 240VAC, 30VDC - Max 240VAC, 30VDC - Max 240VAC, 30VDC - Max
    Load - Max Switching 2400VA, 300W 2400VA, 300W 2400VA, 300W 2400VA, 300W 2400VA, 300W
    Coil Current 120 mA 20.5 mA 20.5 mA 60 mA 105 mA
    Coil Type Non Latching Non Latching Non Latching Non Latching Non Latching
    Features - - Test Button Lighted Indicator Lighted Indicator
    Termination Style Plug In, 8 Pin (Octal) Plug In, 8 Pin (Octal) Plug In, 8 Pin (Octal) Plug In, 8 Pin (Octal) Plug In, 8 Pin (Octal)
    Seal Rating - - - - -
    Coil Insulation - - - - -
    Must Operate Voltage 9.6 VDC 96 VAC 96 VAC 19.2 VDC 19.2 VAC
    Must Release Voltage 1.2 VDC 36 VAC 36 VAC 2.4 VDC 7.2 VAC
    Operate Time 25 ms 25 ms 25 ms 25 ms 25 ms
    Release Time 25 ms 25 ms 25 ms 25 ms 25 ms
    Operating Temperature -25°C ~ 40°C -25°C ~ 40°C -25°C ~ 40°C -25°C ~ 40°C -25°C ~ 40°C
    Contact Material Silver (Ag) Silver (Ag) Silver (Ag) Silver (Ag) Silver (Ag)
    Relay Type General Purpose General Purpose General Purpose General Purpose General Purpose
    Grade - - - - -
    Qualification - - - - -
