    Honeywell Sensing and Productivity Solutions V3L-3052

    Part No.:
    V3L-3052
    Manufacturer:
    Honeywell Sensing and Productivity Solutions
    Category:
    Limit Switches
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDV3L-3052.pdf
    Description:
    SWITCH SNAP ACTION SPDT 15A 125V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Honeywell Sensing and Productivity Solutions
    Series:
    V3L
    Packaging:
    Bulk
    Product Status:
    Active
    Circuit:
    SPDT
    Switch Function:
    On-Mom
    Current Rating (Amps):
    15A (AC), 500mA (DC)
    Voltage Rating - AC:
    125 V
    Voltage Rating - DC:
    125 V
    Actuator Type:
    Lever, Roller
    Mounting Type:
    Chassis Mount
    Termination Style:
    Solder Lug
    Ingress Protection:
    -
    Features:
    -
    Operating Force:
    180gf
    Release Force:
    15gf
    Operating Position:
    0.812" (20.6mm)
    Pretravel:
    0.052" (1.32mm)
    Differential Travel:
    0.012" (0.3mm)
    Overtravel:
    0.032" (0.81mm)
    Operating Temperature:
    -

    1. How to order V3L-3052 on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that V3L-3052 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the V3L-3052. All suppliers must pass our qualification reviews before they can publish their products including V3L-3052 on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of V3L-3052 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the V3L-3052 price and inventory displayed accurate?

    The price and inventory of V3L-3052 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of V3L-3052?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the V3L-3052 we delivered, we will accept the replacement or return of the V3L-3052 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of V3L-3052.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as V3L-3052 pin diagram, V3L-3052 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

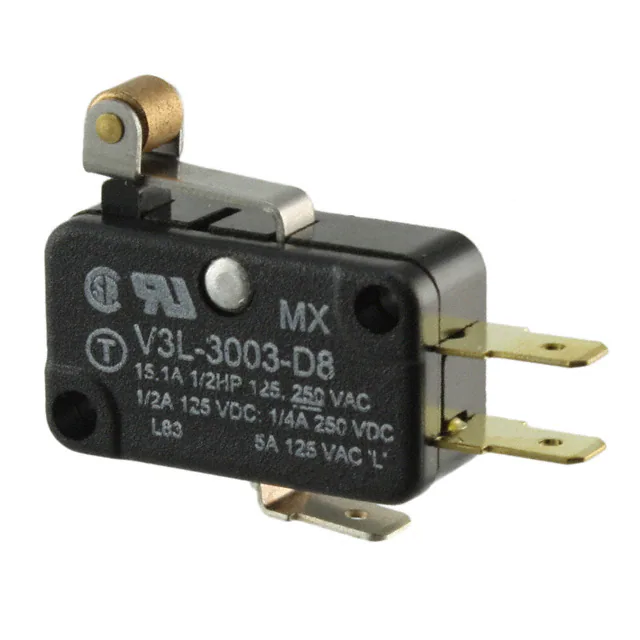

    Image V3L-3052 V3L-1084 V3L-111 V3L-3003-D8 V3L-3
    Part Number V3L-3052 V3L-1084 V3L-111 V3L-3003-D8 V3L-3
    Manufacturer Honeywell Sensing and Productivity Solutions Honeywell Sensing and Productivity Solutions Honeywell Sensing and Productivity Solutions Honeywell Sensing and Productivity Solutions Honeywell Sensing and Productivity Solutions
    Series V3L V3L V3L V3L V3L
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Active Active Active Active Active
    Circuit SPDT SPDT SPDT SPDT SPDT
    Switch Function On-Mom On-Mom On-Mom On-Mom On-Mom
    Current Rating (Amps) 15A (AC), 500mA (DC) 15A (AC), 500mA (DC) 11A (AC), 500mA (DC) 15A (AC), 500mA (DC) 15A (AC), 500mA (DC)
    Voltage Rating - AC 125 V 125 V 125 V 125 V 125 V
    Voltage Rating - DC 125 V 125 V 125 V 125 V 125 V
    Actuator Type Lever, Roller Lever, Straight Lever, Roller Lever, Roller Lever, Roller
    Mounting Type Chassis Mount Chassis Mount Chassis Mount Chassis Mount Chassis Mount
    Termination Style Solder Lug Solder Lug Screw Terminal Quick Connect - 0.187" (4.7mm) Screw Terminal
    Ingress Protection - - - - -
    Features - - - - -
    Operating Force 180gf 113gf 113gf 195gf 397gf
    Release Force 15gf 14gf 14gf 15gf 85gf
    Operating Position 0.812" (20.6mm) 0.565" (14.35mm) 0.812" (20.6mm) 0.812" (20.6mm) 0.812" (20.6mm)
    Pretravel 0.052" (1.32mm) 0.260" (6.6mm) 0.125" (3.2mm) 0.047" (1.2mm) 0.060" (1.5mm)
    Differential Travel 0.012" (0.3mm) 0.090" (2.3mm) 0.050" (1.3mm) 0.013" (0.33mm) 0.016" (0.4mm)
    Overtravel 0.032" (0.81mm) 0.150" (3.8mm) 0.085" (2.16mm) 0.040" (1.0mm) 0.040" (1.0mm)
    Operating Temperature - - - - -
