    Honeywell Sensing and Productivity Solutions DT-2RV22-A7

    Part No.:
    DT-2RV22-A7
    Manufacturer:
    Honeywell Sensing and Productivity Solutions
    Category:
    Limit Switches
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDDT-2RV22-A7.pdf
    Description:
    SWITCH SNAP ACTION DPDT 10A 125V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Honeywell Sensing and Productivity Solutions
    Series:
    DT
    Packaging:
    Bulk
    Product Status:
    Active
    Circuit:
    DPDT
    Switch Function:
    On-Mom
    Current Rating (Amps):
    10A (AC), 300mA (DC)
    Voltage Rating - AC:
    125 V
    Voltage Rating - DC:
    125 V
    Actuator Type:
    Lever, Roller
    Mounting Type:
    Chassis Mount
    Termination Style:
    Screw Terminal
    Ingress Protection:
    -
    Features:
    -
    Operating Force:
    255 ~ 397gf
    Release Force:
    85gf
    Operating Position:
    1.188" (30.2mm)
    Pretravel:
    -
    Differential Travel:
    0.305" (7.75mm)
    Overtravel:
    0.030" (0.76mm)
    Operating Temperature:
    -55°C ~ 85°C

    1. How to order DT-2RV22-A7 on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that DT-2RV22-A7 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the DT-2RV22-A7. All suppliers must pass our qualification reviews before they can publish their products including DT-2RV22-A7 on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of DT-2RV22-A7 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the DT-2RV22-A7 price and inventory displayed accurate?

    The price and inventory of DT-2RV22-A7 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of DT-2RV22-A7?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the DT-2RV22-A7 we delivered, we will accept the replacement or return of the DT-2RV22-A7 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of DT-2RV22-A7.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as DT-2RV22-A7 pin diagram, DT-2RV22-A7 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

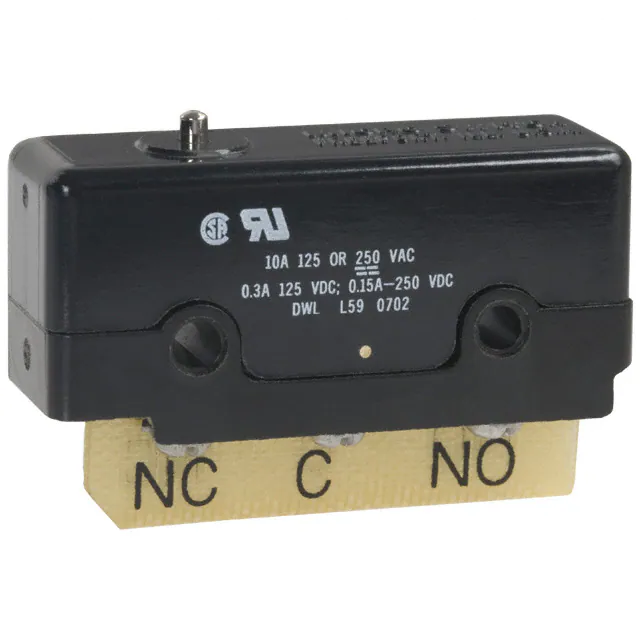

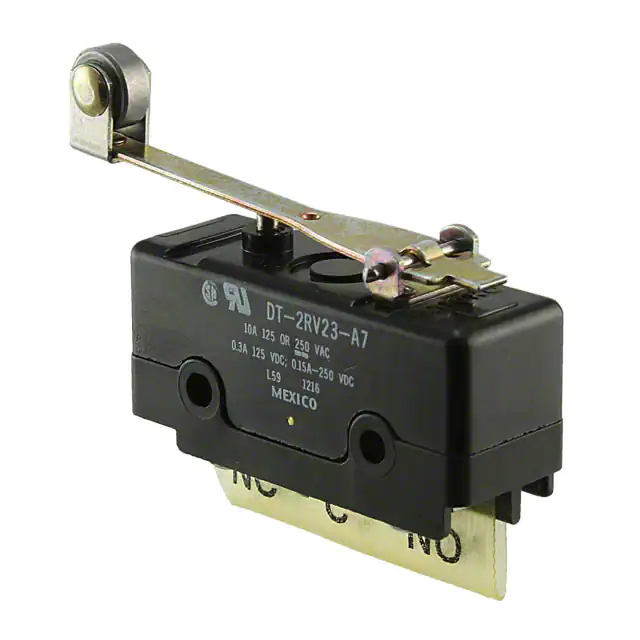

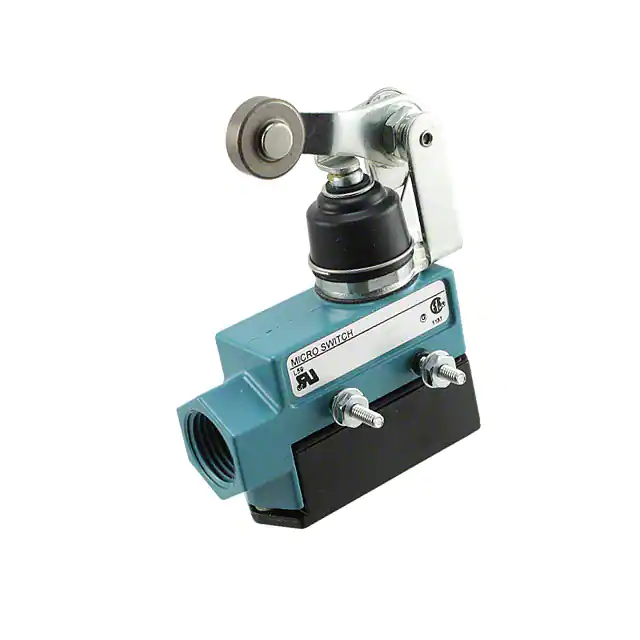

    Image DT-2RV212-A7 DT-2RV22-A7 DT-2R-A7 DTE6-2RN2 DT-2RV23-A7
    Part Number DT-2RV212-A7 DT-2RV22-A7 DT-2R-A7 DTE6-2RN2 DT-2RV23-A7
    Manufacturer Honeywell Sensing and Productivity Solutions Honeywell Sensing and Productivity Solutions Honeywell Sensing and Productivity Solutions Honeywell Sensing and Productivity Solutions Honeywell Sensing and Productivity Solutions
    Series DT DT DT E6 DT
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Active Active Active Active Active
    Circuit DPDT DPDT DPDT DPDT DPDT
    Switch Function On-Mom On-Mom On-Mom On-Mom On-Mom
    Current Rating (Amps) 10A (AC), 300mA (DC) 10A (AC), 300mA (DC) 10A (AC), 300mA (DC) 10A (AC), 300mA (DC) 10A (AC), 300mA (DC)
    Voltage Rating - AC 125 V 125 V 125 V 125 V 125 V
    Voltage Rating - DC 125 V 125 V 125 V 125 V 125 V
    Actuator Type Lever, Roller Lever, Roller Round (Pin Plunger) Lever, Roller Lever, Roller
    Mounting Type Chassis Mount Chassis Mount Chassis Mount Chassis Mount Chassis Mount
    Termination Style Screw Terminal Screw Terminal Screw Terminal Screw Terminal Screw Terminal
    Ingress Protection - - - IP54 - Dust Protected, Water Resistant -
    Features - - - Actuator Seal Boot -
    Operating Force 255 ~ 425gf 255 ~ 397gf 340 ~ 567gf - 156 ~ 269gf
    Release Force 43gf 85gf 57gf 170gf 21gf
    Operating Position 1.156" (29.4mm) 1.188" (30.2mm) 0.615" (15.6mm) - 1.156" (29.4mm)
    Pretravel 0.131" (3.3mm) - 0.075" (1.9mm) 0.266" (6.75mm) 0.195" (4.95mm)
    Differential Travel 0.085" (2.16mm) 0.305" (7.75mm) 0.060" (1.5mm) 0.165" (4.2mm) 0.135" (3.4mm)
    Overtravel 0.005" (0.13mm) 0.030" (0.76mm) 0.005" (0.13mm) 0.219" (5.6mm) 0.010" (0.25mm)
    Operating Temperature -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -32°C ~ 71°C -55°C ~ 85°C
