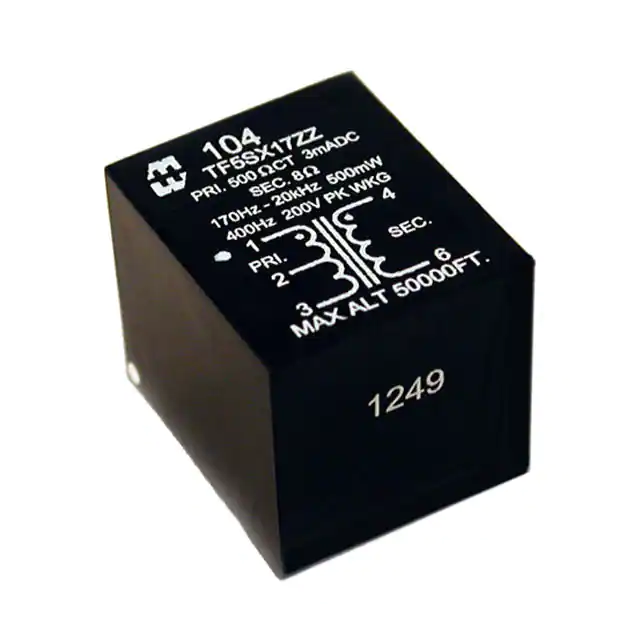

    Hammond Manufacturing 104S

    Part No.:
    104S
    Manufacturer:
    Hammond Manufacturing
    Category:
    Audio Transformers
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTD104S.pdf
    Description:
    AUDIO XFMR 600CT / 150CT TH
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Hammond Manufacturing
    Series:
    104
    Packaging:
    Bulk
    Product Status:
    Active
    Turns Ratio - Primary:Secondary:
    -
    Impedance - Primary (Ohms):
    600CT
    Impedance - Secondary (Ohms):
    150CT
    DC Resistance (DCR) - Primary:
    47Ohm
    DC Resistance (DCR) - Secondary:
    10.6Ohm
    Transformer Type:
    Miniature Epoxy Potted
    Frequency Range:
    200Hz
    Frequency Response:
    -1dB
    Voltage - Isolation:
    200V
    Insertion Loss:
    1dB
    Return Loss:
    -
    Power Level:
    500mW
    Operating Temperature:
    -
    Approval Agency:
    -
    Mounting Type:
    Through Hole
    Size / Dimension:
    0.860" L x 0.710" W (21.84mm x 18.03mm)
    Height - Seated (Max):
    0.750" (19.05mm)
    Termination Style:
    PC Pin
