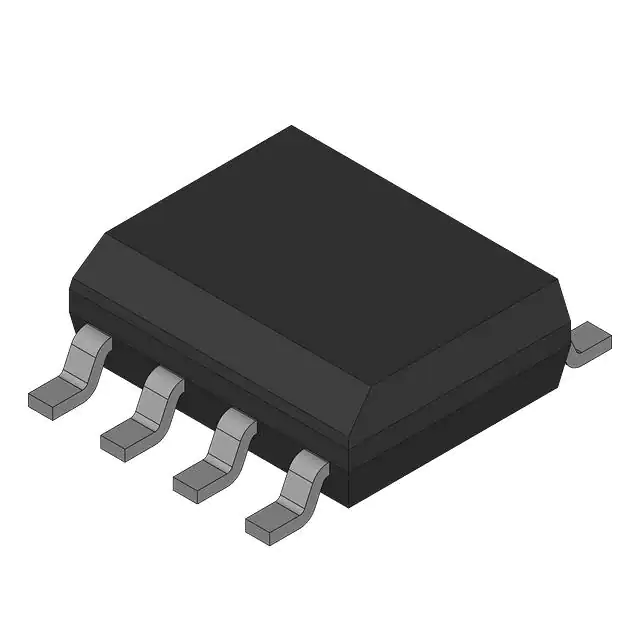

    Fairchild Semiconductor FDSS2407

    Part No.:
    FDSS2407
    Manufacturer:
    Fairchild Semiconductor
    Category:
    FET, MOSFET Arrays
    Package:
    8-SOIC (0.154", 3.90mm Width)
    Datasheet:
    KATY Electronic Technology Co., LTDFDSS2407.pdf
    Description:
    MOSFET 2N-CH 62V 3.3A 8SOIC
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Fairchild Semiconductor
    Series:
    PowerTrench®
    Package/Case:
    8-SOIC (0.154", 3.90mm Width)
    Packaging:
    Bulk
    Product Status:
    Active
    Technology:
    MOSFET (Metal Oxide)
    Configuration:
    2 N-Channel (Dual)
    FET Feature:
    Logic Level Gate
    Drain to Source Voltage (Vdss):
    62V
    Current - Continuous Drain (Id) @ 25°C:
    3.3A
    Rds On (Max) @ Id, Vgs:
    110mOhm @ 3.3A, 10V
    Vgs(th) (Max) @ Id:
    3V @ 250µA
    Gate Charge (Qg) (Max) @ Vgs:
    4.3nC @ 5V
    Input Capacitance (Ciss) (Max) @ Vds:
    300pF @ 15V
    Power - Max:
    2.27W
    Operating Temperature:
    -55°C ~ 150°C (TJ)
    Grade:
    Automotive
    Qualification:
    AEC-Q101
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    8-SOIC

    1. How to order FDSS2407 on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that FDSS2407 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the FDSS2407. All suppliers must pass our qualification reviews before they can publish their products including FDSS2407 on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of FDSS2407 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the FDSS2407 price and inventory displayed accurate?

    The price and inventory of FDSS2407 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of FDSS2407?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the FDSS2407 we delivered, we will accept the replacement or return of the FDSS2407 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of FDSS2407.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as FDSS2407 pin diagram, FDSS2407 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

    Image FDSS2407 FDSS2407_SB82086 FDSS2407S_B82086
    Part Number FDSS2407 FDSS2407_SB82086 FDSS2407S_B82086
    Manufacturer Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor
    Series PowerTrench® * PowerTrench®
    Package/Case 8-SOIC (0.154", 3.90mm Width) - 8-SOIC (0.154", 3.90mm Width)
    Packaging Bulk Bulk Bulk
    Product Status Active Active Active
    Technology MOSFET (Metal Oxide) - MOSFET (Metal Oxide)
    Configuration 2 N-Channel (Dual) - 2 N-Channel (Dual)
    FET Feature Logic Level Gate - Logic Level Gate
    Drain to Source Voltage (Vdss) 62V - 62V
    Current - Continuous Drain (Id) @ 25°C 3.3A - 3.3A (Ta)
    Rds On (Max) @ Id, Vgs 110mOhm @ 3.3A, 10V - 110mOhm @ 3.3A, 10V
    Vgs(th) (Max) @ Id 3V @ 250µA - 3V @ 250µA
    Gate Charge (Qg) (Max) @ Vgs 4.3nC @ 5V - 4.3nC @ 5V
    Input Capacitance (Ciss) (Max) @ Vds 300pF @ 15V - 300pF @ 15V
    Power - Max 2.27W - 2.27W (Ta)
    Operating Temperature -55°C ~ 150°C (TJ) - -55°C ~ 150°C (TJ)
    Grade Automotive - -
    Qualification AEC-Q101 - -
    Mounting Type Surface Mount - Surface Mount
    Supplier Device Package 8-SOIC - 8-SOIC
