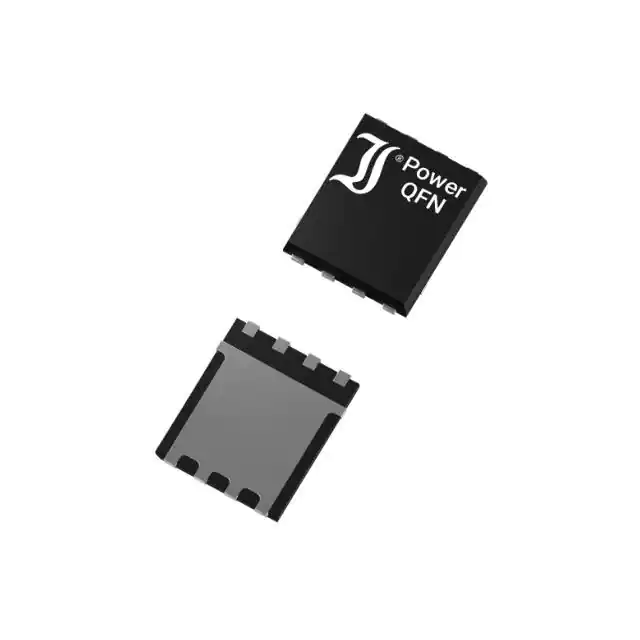

Diotec Semiconductor DI010N03PW

Name: DI010N03PW
Brand: Diotec Semiconductor
SKU: DI010N03PW
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: DI010N03PW

Manufacturer:: Diotec Semiconductor

Category:: FETs, MOSFETs

Package:: 8-PowerUDFN

Datasheet:: DI010N03PW.pdf

Description:: MOSFET POWERQFN 2X2 N 30V 10A 0.

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Product details

Specifications
FAQ
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Diotec Semiconductor

Series:: -

Package/Case:: 8-PowerUDFN

Packaging:: Tape & Reel (TR)

Product Status:: Active

FET Type:: N-Channel

Technology:: MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):: 30 V

Current - Continuous Drain (Id) @ 25°C:: 10A (Tc)

Drive Voltage (Max Rds On, Min Rds On):: 4.5V, 10V

Rds On (Max) @ Id, Vgs:: 12mOhm @ 10A, 10V

Vgs(th) (Max) @ Id:: 2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs:: 25 nC @ 10 V

Vgs (Max):: ±20V

Input Capacitance (Ciss) (Max) @ Vds:: 1120 pF @ 15 V

FET Feature:: -

Power Dissipation (Max):: 1.4W (Tc)

Operating Temperature:: -55°C ~ 150°C (TJ)

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: 8-QFN (2x2)
