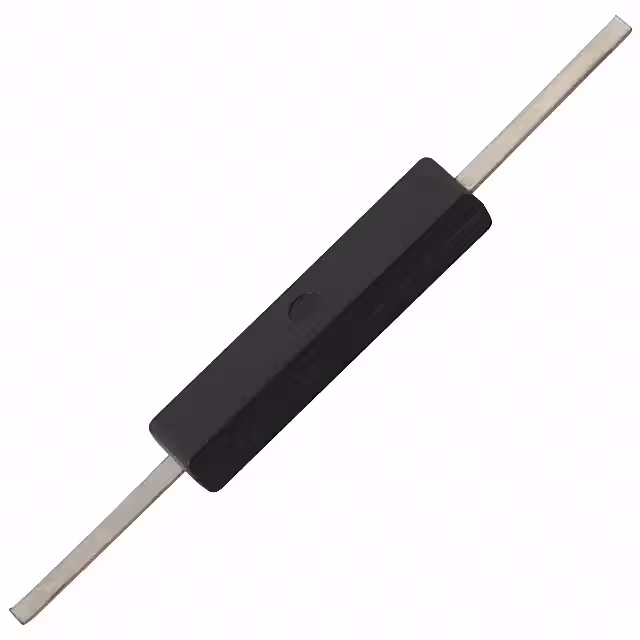

Coto Technology CM15-2024

Name: CM15-2024
Brand: Coto Technology
SKU: CM15-2024
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: CM15-2024

Manufacturer:: Coto Technology

Category:: Magnetic, Reed Switches

Package:

Datasheet:: CM15-2024.pdf

Description:: SWITCH REED SPST-NO 500MA 200V

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Product details

Specifications
FAQ
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Coto Technology

Series:: CM15

Packaging:: Tape & Reel (TR)

Product Status:: Obsolete

Type:: Molded Body Reed

Circuit:: SPST-NO

Operate Range:: 10 ~ 15AT

Release Range:: -

Current - Switching:: 500mA (AC/DC)

Voltage - Switching AC:: 200 V

Voltage - Switching DC:: 200 V

Power - Rated:: 10VA

Operate Time:: 0.5 ms

Release Time:: 0.2 ms

Mounting Type:: Surface Mount

Termination Style:: Gull Wing

Length - Overall:: 0.800" (20.32mm)

Size - Body:: 0.640" L x 0.150" W x 0.106" H (16.25mm x 3.80mm x 2.70mm)

Height Above Board:: 0.115" (2.92mm)

Operating Temperature:: -40°C ~ 125°C

Capacitance:: 0.3 pF

Current - Carry:: 1.5A (AC/DC)
