Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-K34T-500EOPTOISO 5KV 1CH GATE DVR 8SO Broadcom Limited |
2,734 |
|
Datasheet |
R²Coupler™ | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 110ns, 110ns | 40ns | 10ns, 10ns | 2A, 2A | 2.5A | 1.5V | 20 mA | 10V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO Stretched | CSA, UR |
|
ACPL-P349-560EOPTOISO 3.75KV 1CH GATE DVR 6SO Broadcom Limited |
3,291 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 110ns, 110ns | 40ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO | CSA, IEC/EN/DIN, UR |
.jpg)
|
ACNW3430-000EOPTOISO 5KV 1CH GATE DVR 8DIP Broadcom Limited |
1,797 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 80ns | 20ns, 10ns | 4A, 4A | 5A | 1.45V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
ACPL-312T-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP Broadcom Limited |
1,692 |
|
Datasheet |
R²Coupler™ | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
|
ACPL-W349-500EOPTOISO 5KV 1CH GATE DRIVER 6SO Broadcom Limited |
4,689 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 110ns, 110ns | 40ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
|
HCPL-3150OPTOISO 3.75KV 1CH GATE DVR 8DIP Broadcom Limited |
172 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 500mA, 500mA | 600mA | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, UR |
|
ACPL-333J-000EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
884 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|

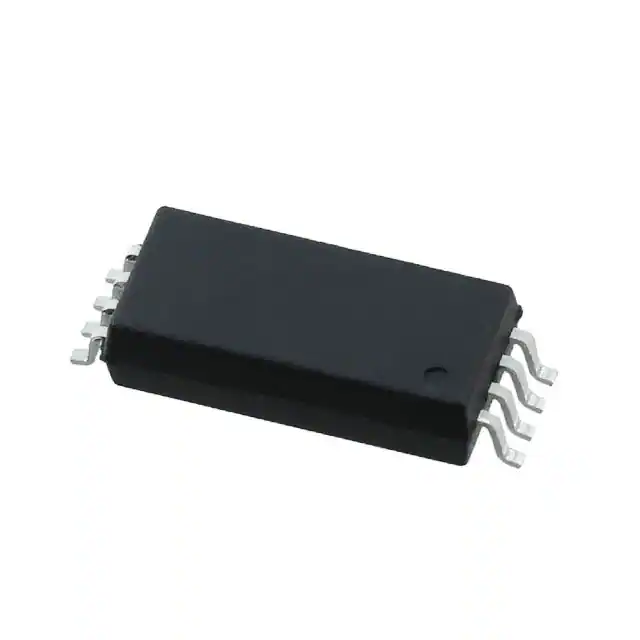

ACNT-H313-000EOPTOISO 7.5KV 1CH GATE DVR 8SO Broadcom Limited |
2,790 |
|
Datasheet |
- | 8-SOIC (0.535", 13.60mm Width) | Bulk | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.45V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched | CSA, IEC/EN/DIN, UR |
.JPG)
|
ACNU-3430-000EOPTOISO 5KV 1CH GATE DVR 8SO Broadcom Limited |
1,553 |
|
Datasheet |
- | 8-SOIC (0.378", 9.60mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 80ns | 20ns, 10ns | 4A, 4A | 5A | 1.45V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-SO Stretched | CSA, IEC/EN/DIN, UR |
|
ACNW3190-500EOPTOISO 5KV 1CH GATE DVR 8SO Broadcom Limited |
1,557 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 4A, 4A | 5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO | CSA, IEC/EN/DIN, UR |
