Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-3180-500EOPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Limited |
2,896 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 200ns, 200ns | 65ns | 25ns, 25ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
ACPL-31JT-000EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
590 |
|
Datasheet |
R²Coupler™ | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 250ns, 250ns | 100ns | 60ns, 50ns | 750mA, 1A | 2.5A | 1.55V | 20 mA | 12V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
ACPL-K34T-000EOPTOISO 5KV 1CH GATE DVR 8SO Broadcom Limited |
587 |
|
Datasheet |
R²Coupler™ | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 110ns, 110ns | 40ns | 10ns, 10ns | 2A, 2A | 2.5A | 1.5V | 20 mA | 10V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO Stretched | CSA, UR |
|
ACPL-P346-000EOPTOISO 3.75KV 1CH GATE DRVR 6SO Broadcom Limited |
4,183 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 120ns, 120ns | 50ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|

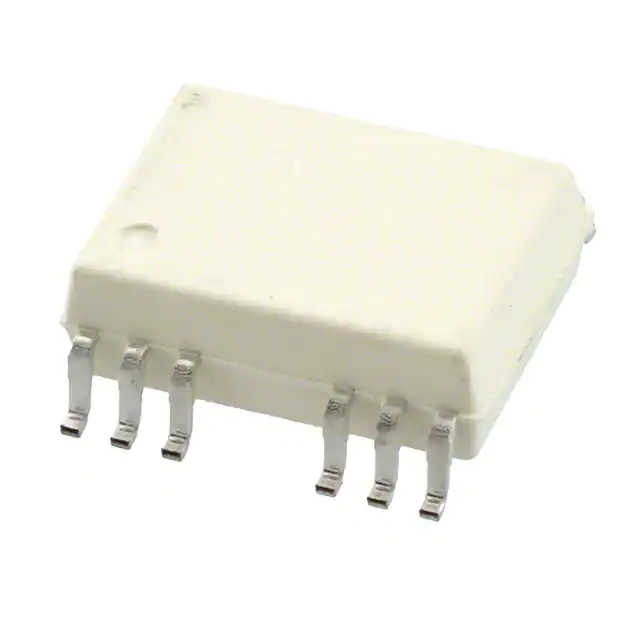

HCPL-314J-000EOPTOISO 5KV 2CH GATE DVR 16SO Broadcom Limited |
2,715 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 2 | 5000Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 500mA, - | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
|
ACPL-K33T-000EOPTOISO 5KV 1CH GATE DVR 8SO Broadcom Limited |
3,920 |
|
Datasheet |
R²Coupler™ | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 120ns, 120ns | 40ns | 15ns, 15ns | 2A, 2A | 2.5A | 1.5V | 20 mA | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO Stretched | CSA, UR |
|
|
HCPL-314J-500EOPTOISO 5KV 2CH GATE DVR 16SO Broadcom Limited |
3,092 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 2 | 5000Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 500mA, - | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
|
ACPL-331J-000EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
4,901 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 1A, 1A | 1.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
|
ACPL-330J-000EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
980 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 1A, 1A | 1.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
|
ACPL-331J-500EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
837 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 1A, 1A | 1.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
