Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM4120-1ARIZDGTL ISO 5KV 1CH GATE DRVR 6SOIC |
145 |
|
Datasheet |
iCoupler® | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 42ns, 58ns | 16.5ns | 18ns, 18ns | - | 2.3A | - | - | 4.5V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 6-SOIC-IC | CSA, UR, VDE |
|
ADUM4146CRWZDGTL ISO 5KV 1CH GATE DVR 16SOIC |
386 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 100kV/µs | 100ns, 100ns | - | 16ns, 16ns | 11A, 9A | 4.61A | - | - | 2.5V ~ 6V, 12V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UL, VDE |
|
|
ADUM4146BRWZDGTL ISO 5KV 1CH GATE DVR 16SOIC |
243 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 100kV/µs | 100ns, 100ns | - | 16ns, 16ns | 11A, 9A | 4.61A | - | - | 2.5V ~ 6V, 12V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UL, VDE |
|
|
ADUM6132ARWZDGT ISO 3.75KV 2CH GT DVR 16SOIC |
203 |
|
Datasheet |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 3750Vrms | 50kV/µs | 100ns, 100ns | 10ns | 15ns, 15ns (Max) | 200mA, 200mA | 200mA | - | - | 12.5V ~ 17V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC | CSA, UR |
|
ADUM4121ARIZ-RLDGTL ISO 5KV 1CH GATE DVR 8SOIC |
3,170 |
|
Datasheet |
iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 42ns, 53ns | 13ns | 18ns, 18ns | - | 2.3A | - | - | 4.5V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC-IC | CSA, UR, VDE |
|
|
ADUM4121-1ARIZ-RLDGTL ISO 5KV 1CH GATE DVR 8SOIC |
2,250 |
|
Datasheet |
iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 42ns, 53ns | 13ns | 18ns, 18ns | - | 2.3A | - | - | 4.5V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC-IC | CSA, UR, VDE |
|
|
ADUM4121CRIZDGTL ISO 5KV 1CH GATE DVR 8SOIC |
645 |
|
Datasheet |
iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 42ns, 53ns | 13ns | 18ns, 18ns | - | 2.3A | - | - | 11.6V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC-IC | CSA, UR, VDE |
|
|
ADUM4121ARIZDGTL ISO 5KV 1CH GATE DVR 8SOIC |
294 |
|
Datasheet |
iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 42ns, 53ns | 13ns | 18ns, 18ns | - | 2.3A | - | - | 4.5V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC-IC | CSA, UR, VDE |
|
|
ADUM5230ARWZDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
1,711 |
|
- |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 100ns, 100ns | 8ns | 25ns, 10ns (Max) | - | - | - | - | 12V ~ 18.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC | UR |
|
|
ADUM4135BRWZ-RLDGTL ISO 5KV 1CH GATE DVR 16SOIC |
1,165 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 100kV/µs | 66ns, 66ns | - | 16ns, 16ns | - | 4A | - | - | 12V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | - |
|
|
ADUM4136BRWZDGTL ISO 5KV 1CH GATE DVR 16SOIC |
417 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 100kV/µs | 68ns, 68ns | - | 16ns, 16ns | - | 4A | - | - | 12V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|
MGD3160AM515EKTDGTL ISO 8KV 1CH GATE DVR 32SOIC |
1,269 |
|
Datasheet |
- | 32-BSSOP (0.295", 7.50mm Width) | Tray | Active | Capacitive Coupling | 1 | 8000Vrms | 100V/ns | - | - | - | 15A, 15A | 15A | - | - | 0.3V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 32-SOIC | CSA, UL, VDE |
|
|
ADUM4121-1TRIZ-EPDGTL ISO 5KV 1CH GATE DVR 8SOIC |
300 |
|
Datasheet |
iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 42ns, 53ns | 13ns | 18ns, 18ns | - | 2.3A | - | - | 7.5V ~ 35V | - | - | -55°C ~ 125°C | Surface Mount | 8-SOIC-IC | CQC, CSA, UL, VDE |
|
HCPL-5120OPTOISO 1.5KV 1CH GATE DVR 8DIP |
276 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 1500VDC | 10kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP | - |
|
UCC23514VDWVRDGTL ISO 5KV 1CH GATE DVR 8SOIC |
845 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 150kV/µs | 70ns, 70ns | 35ns | 28ns, 25ns (Max) | 3A, 3.5A | 4.5A | 2.1V | 16 mA | 14V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, UL, VDE |
|
|
1EDI20I12MFXUMA1DIGITAL ISO 1CH GATE DVR DSO8-51 |
4,830 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | - | - | - | 9ns, 6ns | - | - | - | - | 13V ~ 18V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-51 | - |
.JPG)
|
TLP151A(E)OPTOISO 3.75KV 1CH GT DVR 6SO-5 |
209 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tube | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 500ns, 500ns | 350ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.55V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO, 5 Lead | cUL, UL |
|

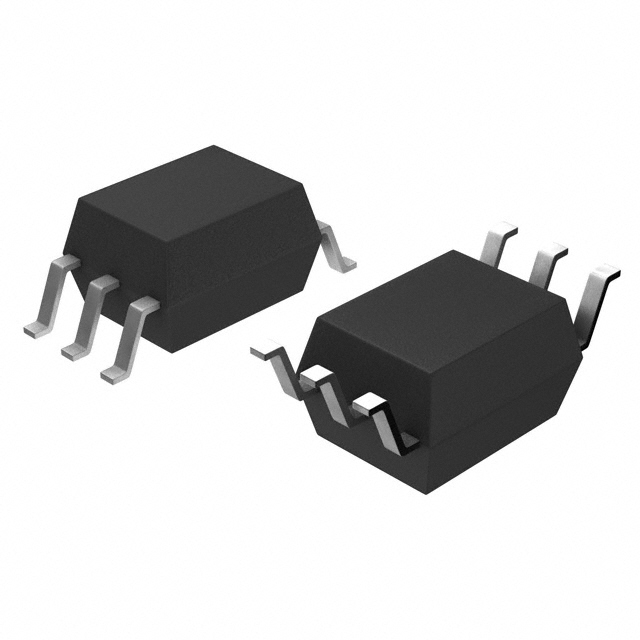

IS314WOPTOISO 5KV 1CH GATE DRIVER 6SO |
1,994 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 200ns, 200ns | 70ns | 35ns, 35ns | 800mA, 800mA | 1A | 1.37V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | - |
|
|
1EDI40I12AFXUMA1DIGITAL ISO 1CH GATE DVR DSO8-51 |
4,658 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 35V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-51 | - |
|
|
UCC23514EDWVRDGTL ISO 5KV 1CH GATE DVR 8SOIC |
2,635 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 150kV/µs | 70ns, 70ns | 35ns | 28ns, 25ns (Max) | 3A, 3.5A | 4.5A | 2.1V | 16 mA | 14V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, UL, VDE |
