Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-J312-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP |
2,751 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
ACFL-3161-000EOPTOISO 5KV 1CH GATE DVR 12SO |
1,774 |
|
Datasheet |
- | 12-BSOP (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 95ns, 95ns | 25ns | 7ns, 7ns | 6A, 6A | 10A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 12-SO Stretched | CSA, UL, VDE |
|
|
UCC20520DWRDGTL ISO 5.7KV 2CH GT DVR 16SOIC |
4,606 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 30ns, 30ns | 5ns | 6ns, 7ns | 4A, 6A | - | - | - | 3V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | - |
|
|
UCC21520DWRDGTL ISO 5.7KV 2CH GT DVR 16SOIC |
2,551 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 30ns, 30ns | 6ns | 6ns, 7ns | 4A, 6A | - | - | - | 6.5V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
UCC21520ADWRDGTL ISO 5.7KV 2CH GT DVR 16SOIC |
837 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 30ns, 30ns | 6ns | 6ns, 7ns | 4A, 6A | - | - | - | 6.5V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
ACPL-W346-000EOPTOISO 5KV 1CH GATE DRIVER 6SO |
2,936 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 120ns, 120ns | 50ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
SI8261ACD-C-ISDGTL ISO 5KV 1CH GT DVR 6SDIP GW |
116,471 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 400mA, 600mA | 600mA | 2.8V (Max) | 30 mA | 13.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 6-SDIP Gull Wing | CQC, CSA, UR, VDE |
|
|
UCC21732DWRDGTL ISO 5.7KV 1CH GT DVR 16SOIC |
1,282 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 150V/ns | 130ns, 130ns | 30ns | 28ns, 24ns (Max) | 10A, 10A | 10A | - | - | 13V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, TUV, UL, VDE |
|

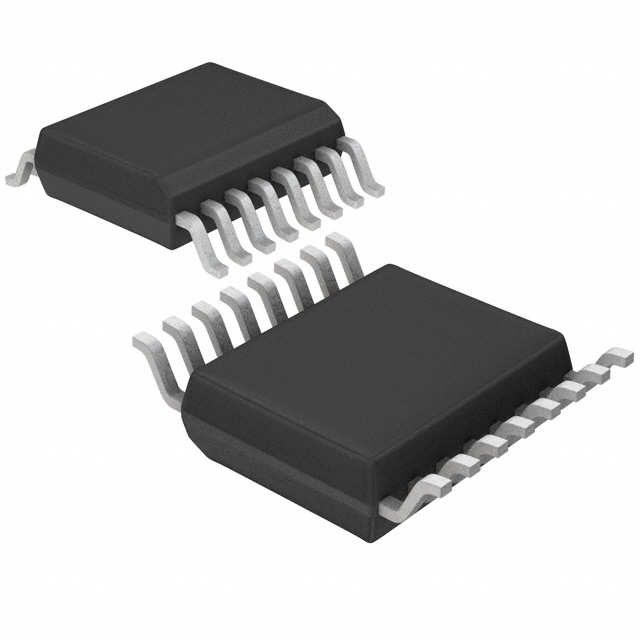

1ED020I12F2XUMA1DGT ISO 4.5KV 1CH GT DVR DSO16 |
6,533 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 4500Vrms | - | - | - | 30ns, 50ns | 2A, 2A | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-16-15 | - |
|
NCD57090CDWR2GDGTL ISO 5KV 1CH GATE DVR 8SOIC |
524 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | - | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
|
ACPL-P345-000EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
999 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 120ns, 120ns | 50ns | 8ns, 8ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
ACPL-H342-000EOPTOISO 3.75KV 1CH GATE DVR 8SO |
525 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 350ns, 250ns | - | 22ns, 18ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched | CSA, UR |
|
|
ACPL-P345-500EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
11,344 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 120ns, 120ns | 50ns | 8ns, 8ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
|
ACPL-K312-500EOPTOISO 5KV 1CH GATE DVR 8SO |
5,713 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO Stretched | CSA, UR |
|
|
SI8261BBD-C-ISDGTL ISO 5KV 1CH GT DVR 6SDIP GW |
224 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 500mA, 1.2A | 4A | 2.8V (Max) | 30 mA | 9.4V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 6-SDIP Gull Wing | CQC, CSA, UR, VDE |
|
NCD57252DWR2GDGTL ISO 5KV 2CH GATE DVR 16SOIC |
8,054 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 100kV/µs | 80ns, 80ns | 10ns | 12ns, 10ns | 6.5A, 6.5A | 6.5A | - | - | 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | VDE |
|
|
ACPL-K30T-000EOPTOISO 5KV 1CH GATE DVR 8SO |
1,736 |
|
Datasheet |
R²Coupler™ | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | - | 2ms, 0.12ms | - | - | - | - | 1.55V | 30 mA | - | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO Stretched | CSA, UR |
|
SI8261BAC-C-ISRDGTL ISO 3.75KV 1CH GT DVR 8SOIC |
5,714 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 500mA, 1.2A | 4A | 2.8V (Max) | 30 mA | 6.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
|
SI8261BCC-C-ISDGTL ISO 3.75KV 1CH GT DVR 8SOIC |
5,597 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 3750Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 500mA, 1.2A | 4A | 2.8V (Max) | 30 mA | 13.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
|
SI8261BAD-C-ISDGTL ISO 5KV 1CH GT DVR 6SDIP GW |
10,487 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 500mA, 1.2A | 4A | 2.8V (Max) | 30 mA | 6.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 6-SDIP Gull Wing | CQC, CSA, UR, VDE |
