Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

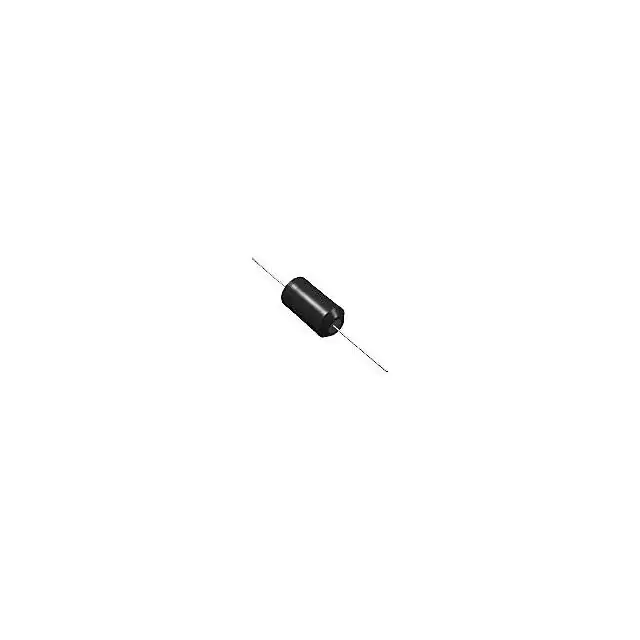

CTH8F-271K270UH AXIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 270 µH | ±10% | 1.6 A | 1.63A | Unshielded | 208mOhm Max | - | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-150K15UH AXIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 15 µH | ±10% | 4 A | 7.34A | Unshielded | 22mOhm Max | - | 14MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-8R2K8.2UH AXIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 8.2 µH | ±10% | 4 A | 9.89A | Unshielded | 13mOhm Max | - | 23MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
CTDO5040F-473M47UH SMD UNSHLD POWER INDUCTOR |
2 |
|
Datasheet |
CTDO5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 3.5 A | 7A | Unshielded | 55mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.450" (11.43mm) |
|
|
CTDO5040F-103M10UH SMD UNSHLD POWER INDUCTOR |
2 |
|
Datasheet |
CTDO5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 7.1 A | 16A | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.450" (11.43mm) |
|

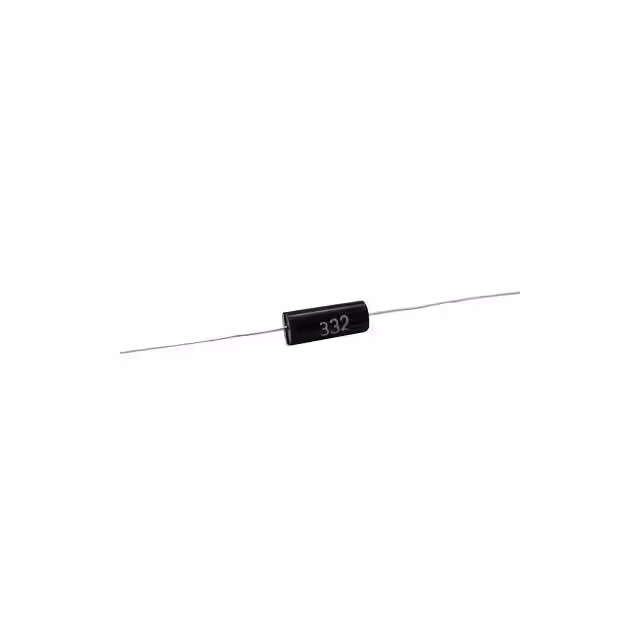

CTM4F-332JAXIAL LEADED MOLDED INDUCTOR |
10 |
|
Datasheet |
CTM4F | Axial | Tape & Reel (TR) | Active | Molded | - | 3.3 mH | ±5% | - | 58mA | Unshielded | 38Ohm Max | - | - | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
CTIHSM4825F-270L27.0UH SMD MOLDED INDUCTOR |
20 |
|
Datasheet |
CTIHSM4825F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 27 µH | ±15% | 1.6 A | 950mA | Unshielded | 179mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.520" L x 0.250" W (13.20mm x 6.35mm) | 0.230" (5.84mm) |
|
|
CTIHSM4825F-1R0L1.0UH SMD MOLDED INDUCTOR |
15 |
|
Datasheet |
CTIHSM4825F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±15% | 8.6 A | 4.1A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.520" L x 0.250" W (13.20mm x 6.35mm) | 0.230" (5.84mm) |
|

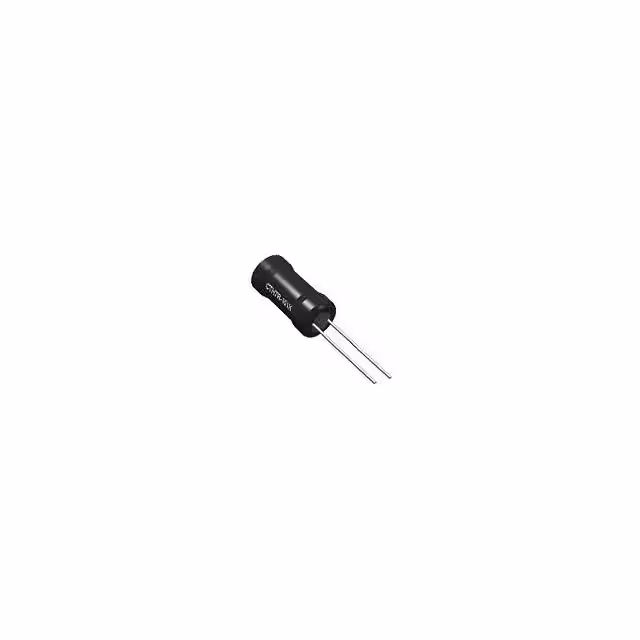

CTH7RF-561K560UH RADIAL PWR LINE INDUCTOR |
10 |
|
Datasheet |
CTH7RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 560 µH | ±10% | 320 mA | 540mA | Unshielded | 1.3Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.300" Dia (7.62mm) | 0.567" (14.40mm) |
|
|
CTH7RF-221K220UH RADIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH7RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 220 µH | ±10% | 510 mA | 860mA | Unshielded | 430mOhm Max | - | 3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.300" Dia (7.62mm) | 0.567" (14.40mm) |
|
|
CTH7RF-821K820UH RADIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH7RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 820 µH | ±10% | 200 mA | 440mA | Unshielded | 2Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.300" Dia (7.62mm) | 0.567" (14.40mm) |
|
|
CTH7RF-681K680UH RADIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH7RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 680 µH | ±10% | 250 mA | 490mA | Unshielded | 1.6Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.300" Dia (7.62mm) | 0.567" (14.40mm) |
|
|
CTH7RF-471K470UH RADIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH7RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 470 µH | ±10% | 320 mA | 590mA | Unshielded | 1.2Ohm Max | - | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.300" Dia (7.62mm) | 0.567" (14.40mm) |
|
|
CTIHSM4825F-221L220.0UH SMD MOLDED INDUCTOR |
5 |
|
Datasheet |
CTIHSM4825F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 220 µH | ±15% | 460 mA | 320mA | Unshielded | 1.58Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.520" L x 0.250" W (13.20mm x 6.35mm) | 0.230" (5.84mm) |
|
|
CTH7RF-223K22000UH RADIAL PWR LINE INDUCTOR |
1 |
|
Datasheet |
CTH7RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 22 mH | ±10% | 40 mA | 85mA | Unshielded | 49Ohm Max | - | 300kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.300" Dia (7.62mm) | 0.567" (14.40mm) |
|
CTCDEP147HF-R30NSMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTCDEP147HF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 300 nH | ±30% | 23 A | 70A | Shielded | 2.1mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
CTCDEP147HF-R70MSMD SHIELDED POWER INDUCTOR |
5 |
|
- |
CTCDEP147HF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 700 nH | ±20% | 20 A | 46.4A | Shielded | 2.65mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
CTCDEP147HF-3R5MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTCDEP147HF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.5 µH | ±20% | 13.5 A | 20.8A | Shielded | 7.5mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
CTCDEP147HF-1R2MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTCDEP147HF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 19.5 A | 35.7A | Shielded | 3.5mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
CTCDEP147HF-7R3MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTCDEP147HF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 7.3 µH | ±20% | 9 A | 14.6A | Shielded | 13.3mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
