Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

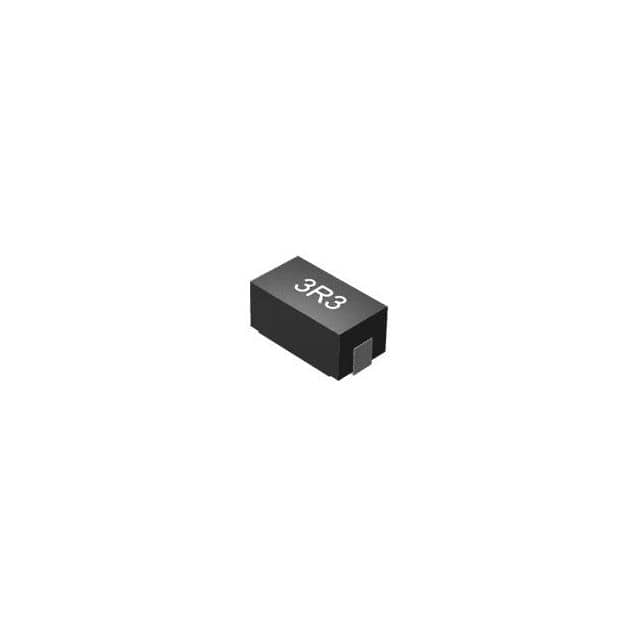

CTP1330F-184K180UH SMD MOLDED INDUCTOR |
16 |
|
Datasheet |
CTP1330F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 180 µH | ±10% | 261 mA | 89mA | Unshielded | 2.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.311" L x 0.128" W (7.90mm x 3.25mm) | 0.142" (3.60mm) |
|

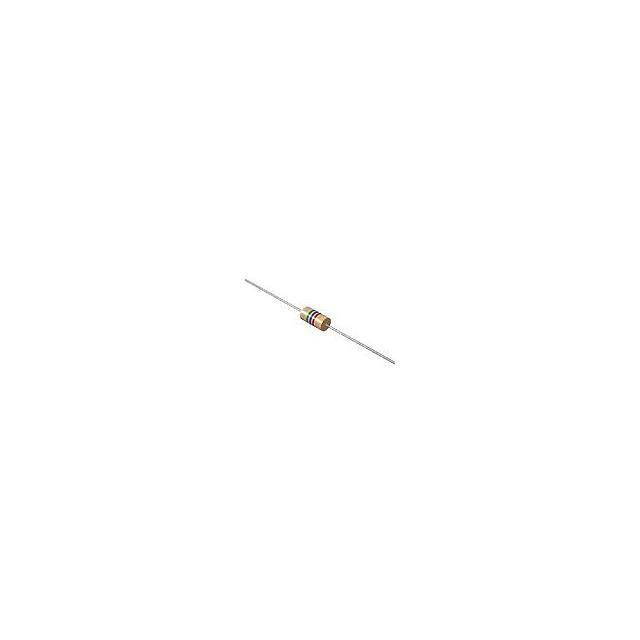

CTS1F-2R7K2.7UH AXL MOLDED SHLD INDUCTOR |
12 |
|
Datasheet |
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 2.7 µH | ±10% | 577 mA | - | Shielded | 550mOhm Max | 32 @ 7.9MHz | 94MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTS1F-102J1000UH AXL OLDEDSHIELD INDUCTR |
10 |
|
Datasheet |
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 1 mH | ±5% | 67 mA | - | Shielded | 39Ohm Max | 60 @ 790kHz | 4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTS1F-681J680UH AXL MOLDED SHLD INDUCTOR |
10 |
|
Datasheet |
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 680 µH | ±5% | 82 mA | - | Shielded | 26Ohm Max | 60 @ 790kHz | 4.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTS1F-3R3K3.3UH AXL MOLDED SHLD INDUCTOR |
10 |
|
Datasheet |
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±10% | 540 mA | - | Shielded | 620mOhm Max | 32 @ 7.9MHz | 86MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTS1F-100K10UH AXL MOLDED SHLD INDUCTOR |
9 |
|
Datasheet |
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±10% | 280 mA | - | Shielded | 2.3Ohm Max | 45 @ 7.9MHz | 53MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTS1F-821J820UH AXL MOLDED SHLD INDUCTOR |
9 |
|
Datasheet |
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 820 µH | ±5% | 72 mA | - | Shielded | 34Ohm Max | 60 @ 790kHz | 4.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTP1330F-224K220UH SMD MOLDED INDUCTOR |
8 |
|
Datasheet |
CTP1330F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 220 µH | ±10% | 223 mA | 72mA | Unshielded | 2.648Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.311" L x 0.128" W (7.90mm x 3.25mm) | 0.142" (3.60mm) |
|

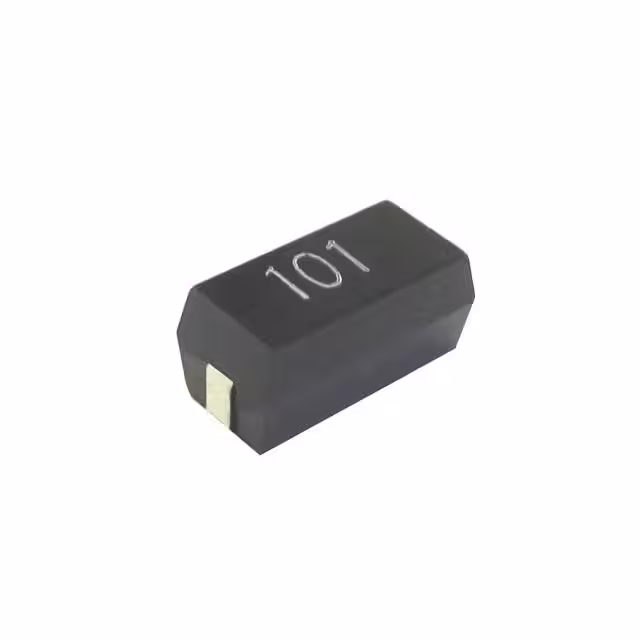

CTSMDS4F-100KSMD SHIELDED RF INDUCTOR |
7 |
|
- |
CTSMDS4F | 2-SMD, J-Lead | Bulk | Obsolete | - | - | 10 µH | ±10% | - | 532mA | Shielded | 1.27Ohm Max | 46 @ 7.9MHz | 53MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | SMD | 0.504" L x 0.238" W (12.80mm x 6.05mm) | 0.228" (5.80mm) |
|
|
CTSMDS4F-101KSMD SHIELDED RF INDUCTOR |
7 |
|
- |
CTSMDS4F | 2-SMD, J-Lead | Bulk | Obsolete | - | - | 100 µH | ±10% | - | 322mA | Shielded | 2.28Ohm Max | 65 @ 2.5MHz | 12MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.504" L x 0.238" W (12.80mm x 6.05mm) | 0.228" (5.80mm) |
|

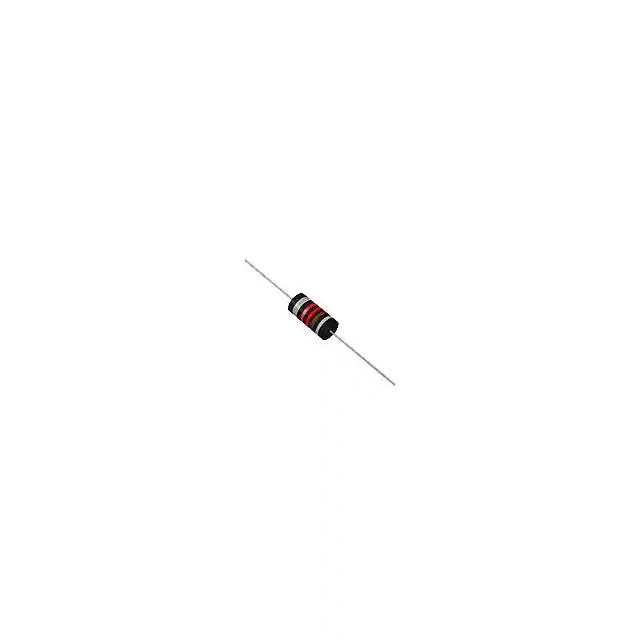

CTM3F-1R0K1.0UH AXIAL MOLDED INDUCTOR |
6 |
|
Datasheet |
CTM3F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±10% | 930 mA | - | Unshielded | 290mOhm Max | 40 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.190" Dia x 0.441" L (4.82mm x 11.20mm) | - |
|
|
CTM3F-R68K.68UH AXIAL MOLDED INDUCTOR |
6 |
|
Datasheet |
CTM3F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±10% | 1.3 A | - | Unshielded | 150mOhm Max | 45 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.190" Dia x 0.441" L (4.82mm x 11.20mm) | - |
|
|
CTSMDS4F-223KSMD SHIELDED RF INDUCTOR |
6 |
|
- |
CTSMDS4F | 2-SMD, J-Lead | Bulk | Obsolete | - | - | 22 mH | ±10% | - | 40mA | Shielded | 145Ohm Max | 50 @ 79kHz | 570kHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.504" L x 0.238" W (12.80mm x 6.05mm) | 0.228" (5.80mm) |
|
CTXAL6030F-1R2MHIGH CURRENT SMD POWER INDUCTOR |
5 |
|
Datasheet |
CTXAL6030F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 12 A | 16A | Shielded | 7.4mOhm Max | - | 47MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
|
CTXAL6030F-R33MHIGH CURRENT SMD POWER INDUCTOR |
5 |
|
Datasheet |
CTXAL6030F | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±20% | 20 A | 28A | Shielded | 2.5mOhm Max | - | 78MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
|
CTXAL6030F-2R2MHIGH CURRENT SMD POWER INDUCTOR |
5 |
|
Datasheet |
CTXAL6030F | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 7 A | 11A | Shielded | 12.2mOhm Max | - | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.122" (3.10mm) |
|
|
CTM3F-R82K.82UH AXIAL MOLDED INDUCTOR |
5 |
|
Datasheet |
CTM3F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±10% | 1.1 A | - | Unshielded | 210mOhm Max | 40 @ 25MHz | 210MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.190" Dia x 0.441" L (4.82mm x 11.20mm) | - |
|
|
CTS1F-680K68UH AXL MOLDED SHLD INDUCTOR |
4 |
|
Datasheet |
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±10% | 237 mA | - | Shielded | 3.2Ohm Max | 55 @ 2.5MHz | 19.9MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTSMDS4F-103KSMD SHIELDED RF INDUCTOR |
3 |
|
- |
CTSMDS4F | 2-SMD, J-Lead | Bulk | Obsolete | - | - | 10 mH | ±10% | - | 50mA | Shielded | 93.1Ohm Max | 70 @ 250kHz | 1.3MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.504" L x 0.238" W (12.80mm x 6.05mm) | 0.228" (5.80mm) |
|
CTR1330F-101KSMD MOLDED INDUCTOR |
20 |
|
Datasheet |
CTR1330F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±10% | 84 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | SMD | 0.313" L x 0.115" W (7.94mm x 2.93mm) | 0.145" (3.68mm) |
