Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSS1260H-184KEDFIXED INDUCTOR 180UH SMD Coilcraft |
1,222 |
|
Datasheet |
MSS1260H | Nonstandard | Strip | Active | Drum Core | Ferrite | 180 µH | ±10% | 970 mA | 1.7A | Shielded | 256mOhm Max | - | 4.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.246" (6.25mm) |
|
|
MSS1260H-183MEDFIXED INDUCTOR 18UH SMD Coilcraft |
1,218 |
|
Datasheet |
MSS1260H | Nonstandard | Strip | Active | Drum Core | Ferrite | 18 µH | ±20% | 3 A | 5.3A | Shielded | 30.2mOhm Max | - | 18.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.246" (6.25mm) |
|
|
MSS1260H-274KEDFIXED INDUCTOR 270UH SMD Coilcraft |
1,205 |
|
Datasheet |
MSS1260H | Nonstandard | Strip | Active | Drum Core | Ferrite | 270 µH | ±10% | 790 mA | 1.4A | Shielded | 372mOhm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.246" (6.25mm) |
|
|
MSS1260H-332MEDFIXED INDUCTOR 3.3UH SMD Coilcraft |
1,202 |
|
Datasheet |
MSS1260H | Nonstandard | Strip | Active | Drum Core | Ferrite | 3.3 µH | ±20% | 5.5 A | 12.3A | Shielded | 8.8mOhm Max | - | 49MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.246" (6.25mm) |
|
|
MSS1260H-222MEDFIXED INDUCTOR 2.2UH SMD Coilcraft |
1,188 |
|
Datasheet |
MSS1260H | Nonstandard | Strip | Active | Drum Core | Ferrite | 2.2 µH | ±20% | 6 A | 14.6A | Shielded | 7.5mOhm Max | - | 62MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.246" (6.25mm) |
|
|
MSS1260H-394KEDFIXED INDUCTOR 390UH SMD Coilcraft |
1,150 |
|
Datasheet |
MSS1260H | Nonstandard | Strip | Active | Drum Core | Ferrite | 390 µH | ±10% | 700 mA | 1.1A | Shielded | 485mOhm Max | - | 3.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.246" (6.25mm) |
|
|

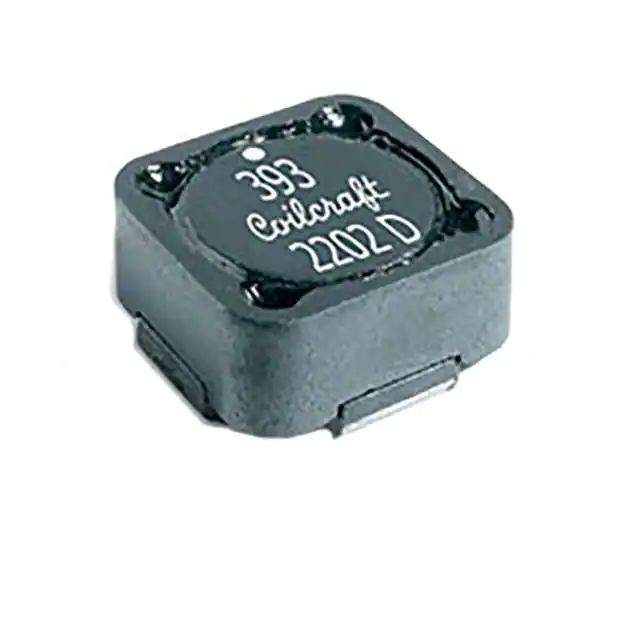

MSS1260H-102MEDFIXED INDUCTOR 1UH SMD Coilcraft |
1,056 |
|
Datasheet |
MSS1260H | Nonstandard | Strip | Active | Drum Core | Ferrite | 1 µH | ±20% | 7.3 A | 22.5A | Shielded | 5.2mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.246" (6.25mm) |
|
|
MSS1260H-273MEDFIXED INDUCTOR 27UH SMD Coilcraft |
1,026 |
|
Datasheet |
MSS1260H | Nonstandard | Strip | Active | Drum Core | Ferrite | 27 µH | ±20% | 2.3 A | 4.2A | Shielded | 45.7mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.246" (6.25mm) |
|
|
MSS1260H-823KEDFIXED INDUCTOR 82UH SMD Coilcraft |
966 |
|
Datasheet |
MSS1260H | Nonstandard | Strip | Active | Drum Core | Ferrite | 82 µH | ±10% | 1.5 A | 2.5A | Shielded | 116.6mOhm Max | - | 7.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.246" (6.25mm) |
|
XEL6060-822MECFIXED IND 8.2UH 9.4A 24.98MOHM Coilcraft |
862 |
|
Datasheet |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 9.4 A | 7.6A | Shielded | 24.98mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
