Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFL1609-561MEWPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
15,681 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 560 nH | ±20% | 1.1 A | 710mA | Shielded | 130mOhm Max | - | 600MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
|
PFL1609-472MEWPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
12,142 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 380 mA | 240mA | Shielded | 700mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
|
PFL1609-681MEWPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
11,419 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 680 nH | ±20% | 1.1 A | 610mA | Shielded | 170mOhm Max | - | 520MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
|

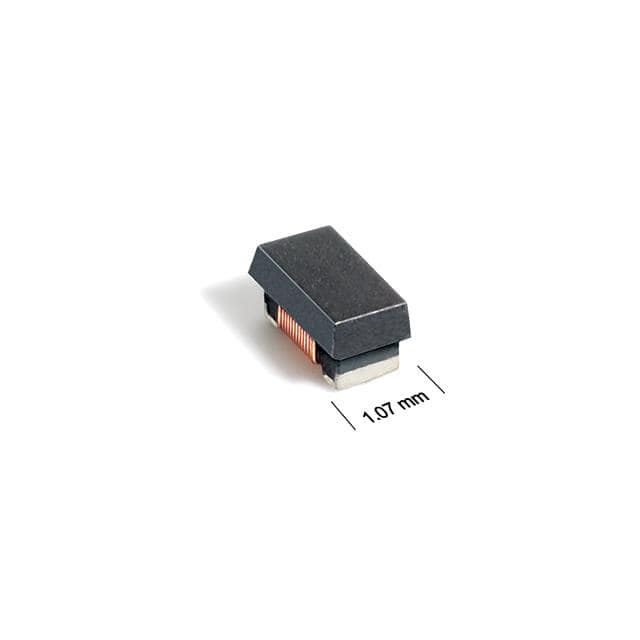

PFL1609-102MEWPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
7,090 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 1 µH | ±20% | 650 mA | 480mA | Shielded | 230mOhm Max | - | 445MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
|
PFL1609-222MEWPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
3,812 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 2.2 µH | ±20% | 480 mA | 300mA | Shielded | 470mOhm Max | - | 130MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
|
PFL1609-103MEWPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
2,026 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 10 µH | ±20% | 320 mA | 130mA | Shielded | 1.4Ohm Max | - | 35MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
|
PFL1609-682MEWPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
1,939 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 6.8 µH | ±20% | 330 mA | 170mA | Shielded | 1.2Ohm Max | - | 40MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
ME3220-102MLCFIXED IND 1UH 2.6A 58MOHM SM Coilcraft |
61,974 |
|
Datasheet |
ME3220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 2.6 A | 3.2A | Unshielded | 58mOhm Max | - | 170.7MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.094" (2.40mm) |
|
|
ME3220-223KLCFIXED IND 22UH 640MA 787MOHM SM Coilcraft |
37,976 |
|
Datasheet |
ME3220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 640 mA | 710mA | Unshielded | 787mOhm Max | - | 29.4MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.094" (2.40mm) |
|
|
ME3220-103KLCFIXED IND 10UH 870MA 434MOHM SM Coilcraft |
27,473 |
|
Datasheet |
ME3220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 870 mA | 1.1A | Unshielded | 434mOhm Max | - | 39.9MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.094" (2.40mm) |
