Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

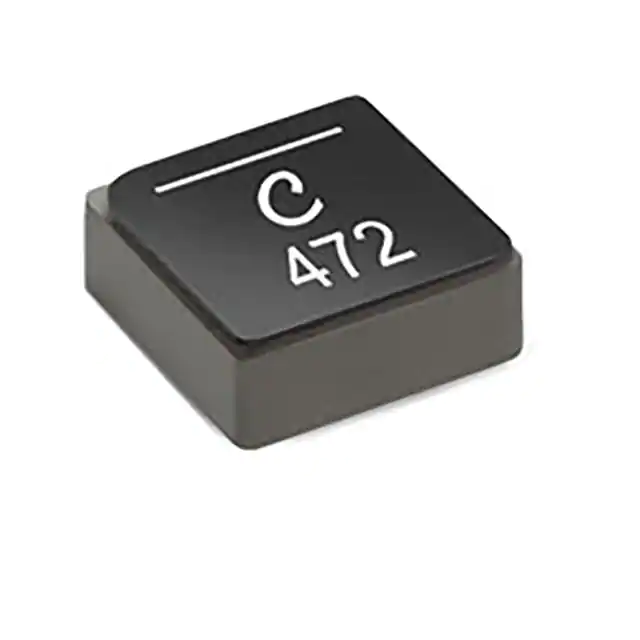

XGL4018-361MECFIXED INDUCTOR 0.36UH SMD Coilcraft |
5,956 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 360 nH | ±20% | 11.9 A | 12A | Shielded | 5.2mOhm Max | - | 105MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
XGL4018-561MECFIXED INDUCTOR 0.56UH SMD Coilcraft |
5,452 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 560 nH | ±20% | 9.3 A | 10.3A | Shielded | 8.2mOhm Max | - | 85MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
XGL4018-821MECFIXED INDUCTOR 0.82UH SMD Coilcraft |
5,421 |
|
Datasheet |
XGL4018 | 1616 (4040 Metric) | Strip | Active | Molded | - | 820 nH | ±20% | 7.7 A | 8.3A | Shielded | 11.6mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

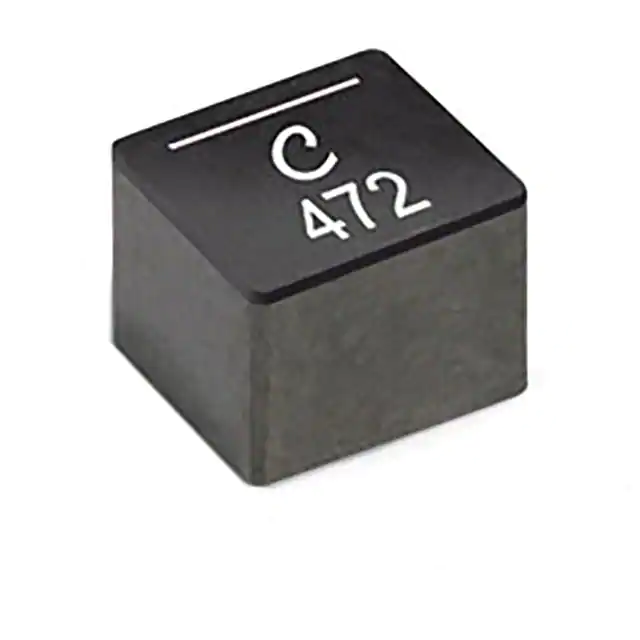

XGL3530-201MECFIXED INDUCTOR 0.2UH SMD Coilcraft |
3,128 |
|
Datasheet |
XGL3530 | Nonstandard | Strip | Active | Molded | - | 200 nH | ±20% | 22.4 A | 11.8A | Shielded | 3.5mOhm Max | - | 220MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.118" (3.00mm) |
|
DO5040H-153MLDFIXED IND 15UH 6.5A 20MOHM SM Coilcraft |
4,237 |
|
Datasheet |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 6.5 A | 13.8A | Unshielded | 20mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.472" (12.00mm) |
|
|
DO5040H-282MLDFIXED IND 2.8UH 12.1A 5.2MOHM SM Coilcraft |
430 |
|
Datasheet |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.8 µH | ±20% | 12.1 A | 33.4A | Unshielded | 5.2mOhm Max | - | 65MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.472" (12.00mm) |
|
|
DO5040H-145KLDFIXED IND 1.4MH 700MA 1.3OHM SM Coilcraft |
382 |
|
Datasheet |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.4 mH | ±10% | 700 mA | 1.5A | Unshielded | 1.3Ohm Max | - | 1MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.472" (12.00mm) |
|
|
DO5040H-223MLDFIXED IND 22UH 5.7A 24MOHM SM Coilcraft |
354 |
|
Datasheet |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 5.7 A | 11.8A | Unshielded | 24mOhm | - | 13MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.472" (12.00mm) |
|
|
DO5040H-684KLDFIXED IND 680UH 1.1A 780MOHM SM Coilcraft |
267 |
|
Datasheet |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 µH | ±10% | 1.1 A | 2A | Unshielded | 780mOhm Max | - | 1.6MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.472" (12.00mm) |
|
|
DO5040H-682MLDFIXED IND 6.8UH 9.6A 9MOHM SM Coilcraft |
171 |
|
Datasheet |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 9.6 A | 22.5A | Unshielded | 9mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.472" (12.00mm) |
