Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

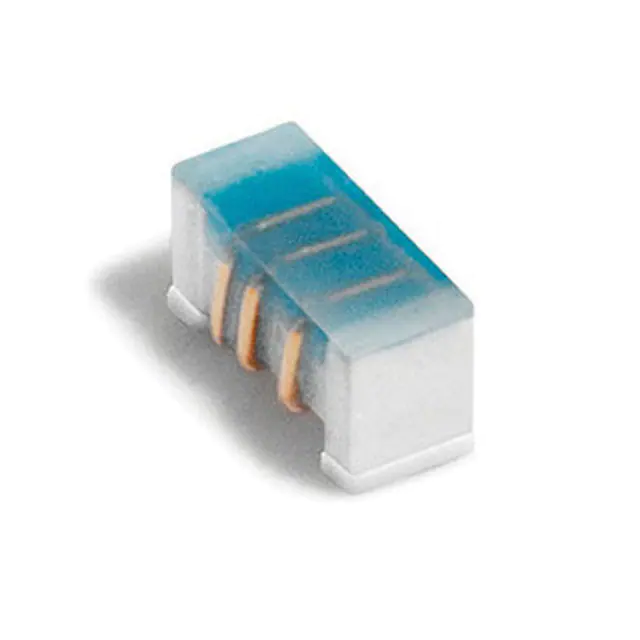

0402DC-1N2XJRW0402DC-1N2XJRW Coilcraft |
4,264 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 1.2 nH | ±5% | 980 mA | - | Unshielded | 125mOhm Max | 27 @ 900MHz | 25.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-5N6XJRW0402DC-5N6XJRW Coilcraft |
4,183 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 5.6 nH | ±5% | 1.8 A | - | Unshielded | 57mOhm Max | 69 @ 900MHz | 11GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-22NXJRW0402DC-22NXJRW Coilcraft |
3,883 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 22 nH | ±5% | 970 mA | - | Unshielded | 190mOhm Max | 67 @ 900MHz | 4.95GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-2N4XJRW0402DC-2N4XJRW Coilcraft |
3,194 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 2.4 nH | ±5% | 850 mA | - | Unshielded | 170mOhm Max | 40 @ 900MHz | 16.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-82NXJRW0402DC-82NXJRW Coilcraft |
3,149 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 82 nH | ±5% | 370 mA | - | Unshielded | 1.057Ohm Max | 51 @ 900MHz | 2.86GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-1N9XJRW0402DC-1N9XJRW Coilcraft |
3,077 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 1.9 nH | ±5% | 2 A | - | Unshielded | 35mOhm Max | 63 @ 900MHz | 16.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-4N3XJRW0402DC-4N3XJRW Coilcraft |
3,030 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 4.3 nH | ±5% | 1.85 A | - | Unshielded | 48mOhm Max | 62 @ 900MHz | 13.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-R10XJRW0402DC-R10XJRW Coilcraft |
2,856 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 100 nH | ±5% | 310 mA | - | Unshielded | 1.507Ohm Max | 51 @ 900MHz | 2.38GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-91NXJRW0402DC-91NXJRW Coilcraft |
2,801 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 91 nH | ±5% | 360 mA | - | Unshielded | 1.119Ohm Max | 48 @ 900MHz | 2.82GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-2N1XJRW0402DC-2N1XJRW Coilcraft |
2,594 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 2.1 nH | ±5% | 1.7 A | - | Unshielded | 48mOhm Max | 47 @ 900MHz | 15.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
