Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

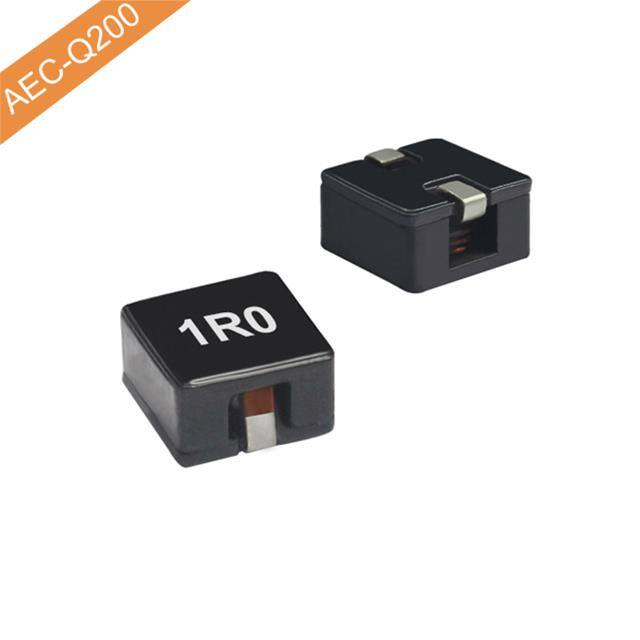

CSBL0640-1R5MSMD HIGH CURRENT POWER INDUCTOR CODACA |
955 |
|
Datasheet |
CSBL0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 1.5 µH | ±20% | 11.5 A | 14A | Shielded | 6.2mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|

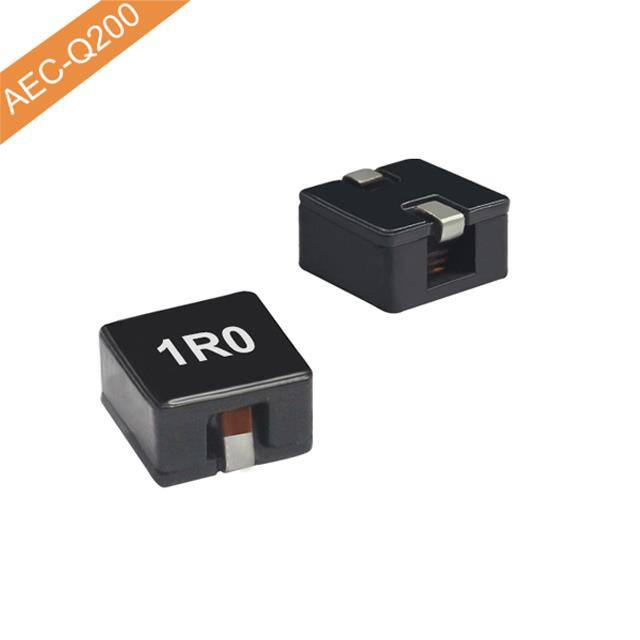

CSBX0640-4R7MSMD HIGH CURRENT POWER INDUCTOR CODACA |
955 |
|
Datasheet |
CSBX0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 6.4 A | 11A | Shielded | 21.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | High Saturation | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
CSAB1265A-100MSMD MOLDING POWER CHOKE CODACA |
370 |
|
Datasheet |
CSAB1265A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 10 A | 14A | Shielded | 16.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.504" L x 0.543" W (12.80mm x 13.80mm) | 0.248" (6.30mm) |
|
|
CSBX0640-R68MSMD HIGH CURRENT POWER INDUCTOR CODACA |
848 |
|
Datasheet |
CSBX0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 680 nH | ±20% | 17.5 A | 30A | Shielded | 3.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | High Saturation | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
|
VSAB1365-220MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
387 |
|
Datasheet |
VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 22 µH | ±20% | 7 A | 5.5A | Shielded | 39.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.248" (6.30mm) |
|
|
VSAB1365-100MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
364 |
|
Datasheet |
VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 11 A | 7.5A | Shielded | 17.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.248" (6.30mm) |
|
|
VSAB1365-6R8MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
400 |
|
Datasheet |
VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 11 A | 9A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.248" (6.30mm) |
|
|
VSAB1365-150MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
400 |
|
Datasheet |
VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 15 µH | ±20% | 7.5 A | 6A | Shielded | 28mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.248" (6.30mm) |
|
|
VSAB1365-4R7MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
400 |
|
Datasheet |
VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 15 A | 11.5A | Shielded | 8.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.248" (6.30mm) |
|
|
CSAC1265-150MSMD MOLDING POWER CHOKE CODACA |
799 |
|
Datasheet |
CSAC1265 | Nonstandard | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 15 µH | ±20% | 8.5 A | 12A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.498" W (13.40mm x 12.65mm) | 0.260" (6.60mm) |
