Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSHB0540R-6R8MSMD MOLDING POWER CHOKE CODACA |
1,213 |
|
Datasheet |
CSHB0540R | Nonstandard | Cut Tape (CT) | Active | Molded | Ferrite | 6.8 µH | ±20% | 5.2 A | 5.6A | Shielded | 42.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.157" (4.00mm) |
|
|
CSHB0540R-220MSMD MOLDING POWER CHOKE CODACA |
1,048 |
|
Datasheet |
CSHB0540R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 22 µH | ±20% | 3.3 A | 3.3A | Shielded | 167mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.157" (4.00mm) |
|
CSHB0520R-1R5MSMD MOLDING POWER CHOKE CODACA |
1,000 |
|
Datasheet |
CSHB0520R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 1.5 µH | ±20% | 7.5 A | 9.5A | Shielded | 17.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.079" (2.00mm) |
|
CSHB0530R-R47MSMD MOLDING POWER CHOKE CODACA |
1,000 |
|
Datasheet |
CSHB0530R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 470 nH | ±20% | 15 A | 17A | Shielded | 5.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSHB0530R-1R5MSMD MOLDING POWER CHOKE CODACA |
990 |
|
Datasheet |
CSHB0530R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 1.5 µH | ±20% | 11.5 A | 12A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSHB0530R-4R7MSMD MOLDING POWER CHOKE CODACA |
976 |
|
Datasheet |
CSHB0530R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 4.7 µH | ±20% | 6.5 A | 7A | Shielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSHB0520R-1R0MSMD MOLDING POWER CHOKE CODACA |
925 |
|
Datasheet |
CSHB0520R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 1 µH | ±20% | 11.5 A | 12A | Shielded | 12.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.079" (2.00mm) |
|
|
CSHB0520R-4R7MSMD MOLDING POWER CHOKE CODACA |
909 |
|
Datasheet |
CSHB0520R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 4.7 µH | ±20% | 5 A | 5.5A | Shielded | 51.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.079" (2.00mm) |
|
|
CSHB0540R-4R7MSMD MOLDING POWER CHOKE CODACA |
887 |
|
Datasheet |
CSHB0540R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 4.7 µH | ±20% | 7 A | 7.5A | Shielded | 28.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.157" (4.00mm) |
|
|

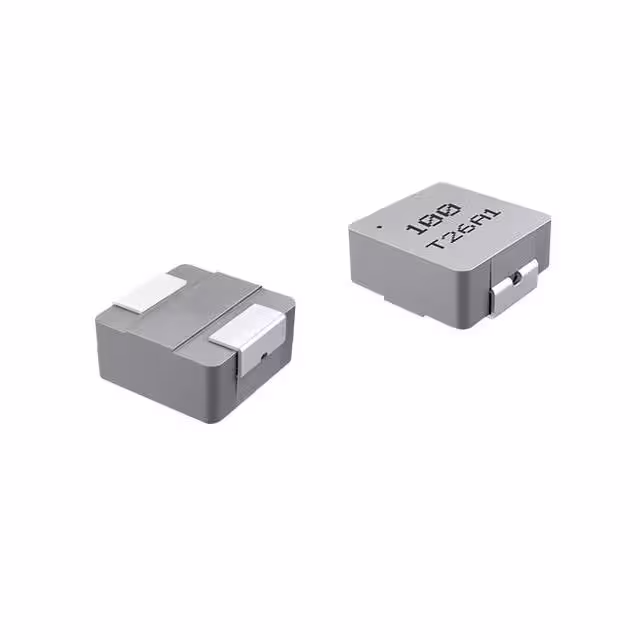

CSHB0530R-100MSMD MOLDING POWER CHOKE CODACA |
885 |
|
Datasheet |
CSHB0530R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 10 µH | ±20% | 4.2 A | 4.5A | Shielded | 85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.118" (3.00mm) |
