Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74438357015FIXED IND 1.5UH 6.2A 20 MOHM SMD Würth Elektronik |
2,373 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 6.2 A | 8.5A | Shielded | 20mOhm Max | - | 48MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
|
74438357100FIXED IND 10UH 2.7A 110 MOHM SMD Würth Elektronik |
1,345 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 2.7 A | 4.6A | Shielded | 110mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
|
74438357010FIXED IND 1UH 7.4A 13.5 MOHM SMD Würth Elektronik |
1,039 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 7.4 A | 9.6A | Shielded | 13.5mOhm Max | - | 59MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|

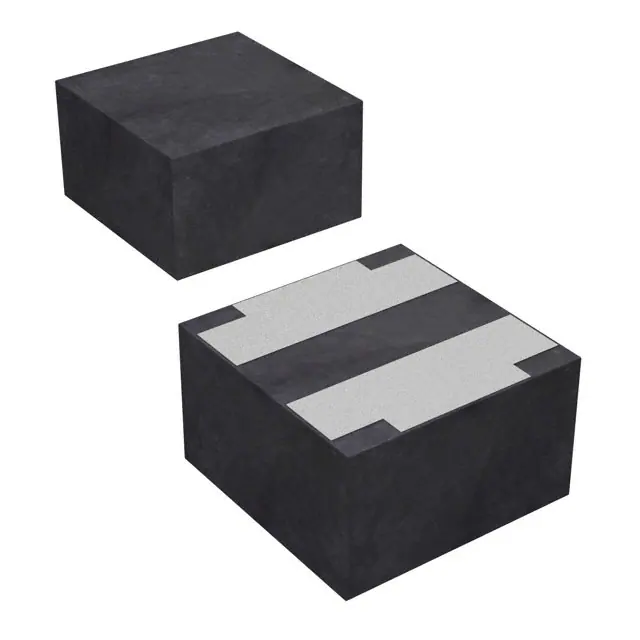

74438356022FIXED IND 2.2UH 4.7A 35 MOHM SMD Würth Elektronik |
21,384 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 4.7 A | 6.2A | Shielded | 35mOhm Max | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
74438356010FIXED IND 1UH 7.2A 15 MOHM SMD Würth Elektronik |
1,669 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 7.2 A | 9A | Shielded | 15mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
74438356047FIXED IND 4.7UH 2.9A 76 MOHM SMD Würth Elektronik |
1,120 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 2.9 A | 4.7A | Shielded | 76mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
78438357068FIXED IND 6.8UH 3A 74 MOHM SMD Würth Elektronik |
881 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Alloy | 6.8 µH | ±20% | 3 A | 5.5A | Shielded | 74mOhm Max | - | 19.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
|
78438357100FIXED IND 10UH 2.7A 110MOHM SMD Würth Elektronik |
685 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Alloy | 10 µH | ±20% | 2.7 A | 4.6A | Shielded | 110mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|

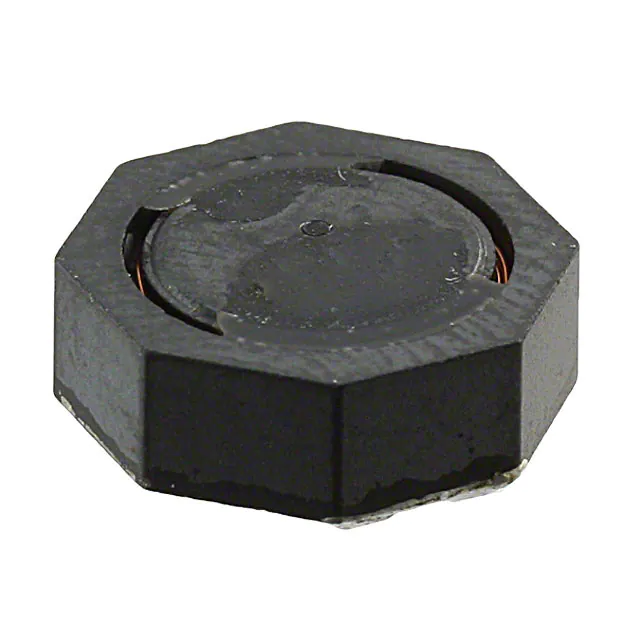

744066220FIXED IND 22UH 2.5A 75 MOHM SMD Würth Elektronik |
4,676 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 2.5 A | 2.3A | Shielded | 75mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
74438356220FIXED IND 22UH 1.7A 280MOHM SMD Würth Elektronik |
3,863 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 22 µH | ±20% | 1.7 A | 1.85A | Shielded | 280mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
