Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

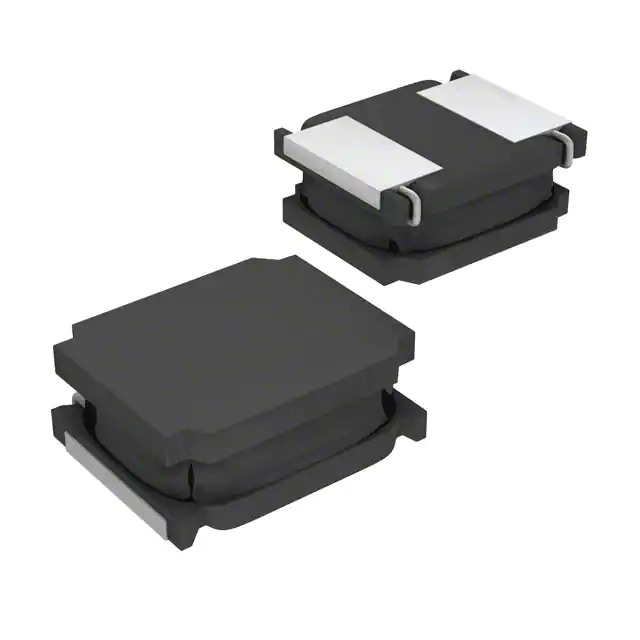

74404043221AFIXED IND 220UH 310MA 2.43OHM SM Würth Elektronik |
13,273 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 310 mA | 210mA | Shielded | 2.43Ohm | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
74404043010AFIXED IND 1UH 4.9A 14 MOHM SMD Würth Elektronik |
3,149 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.9 A | 3.22A | Shielded | 14mOhm | - | 167MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|

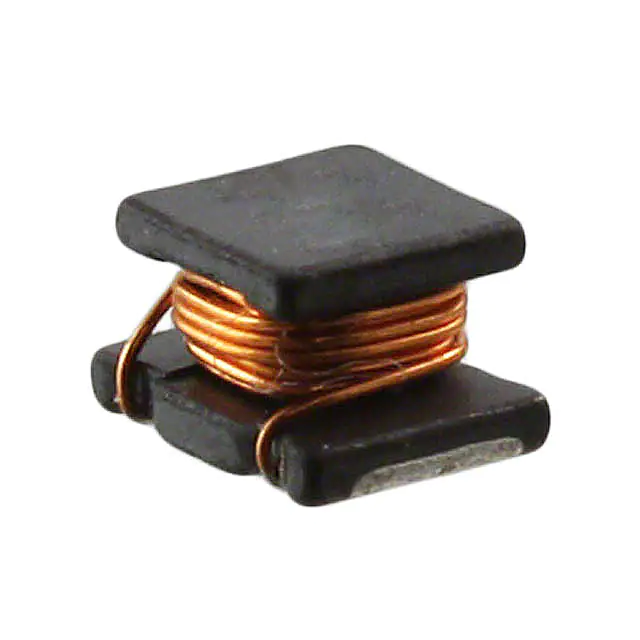

744032100FIXED IND 10UH 320MA 650MOHM SMD Würth Elektronik |
4,585 |
|
Datasheet |
WE-LQ | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 320 mA | 850mA | Unshielded | 650mOhm Max | 35 @ 1MHz | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|

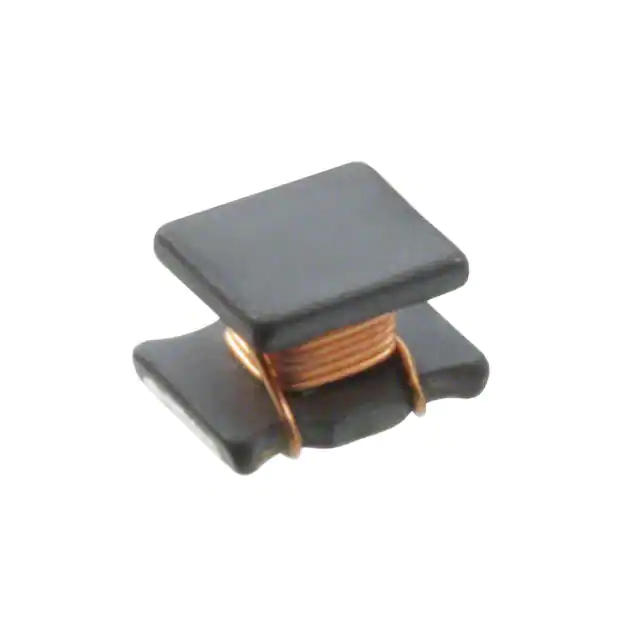

744045220FIXED IND 22UH 630MA 700MOHM SMD Würth Elektronik |
6,163 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 630 mA | 1A | Unshielded | 700mOhm Max | 50 @ 1MHz | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045100FIXED IND 10UH 950MA 300MOHM SMD Würth Elektronik |
5,382 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 950 mA | 1.5A | Unshielded | 300mOhm Max | 48 @ 1MHz | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744913118FIXED IND 18.5NH 4A 3.9 MOHM SMD Würth Elektronik |
3,476 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 18.5 nH | ±5% | 4 A | - | Unshielded | 3.9mOhm Max | 132 @ 150MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
74479276222CFIXED IND 2.2UH 1.6A 135MOHM SMD Würth Elektronik |
12,554 |
|
Datasheet |
WE-PMCI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 1.6 A | 2.5A | Shielded | 135mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74404032022FIXED IND 2.2UH 1.8A 50 MOHM SMD Würth Elektronik |
5,081 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.8 A | 1.7A | Shielded | 50mOhm | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
74404024022FIXED IND 2.2UH 1.8A 80 MOHM SMD Würth Elektronik |
2,165 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.65 A | 1.9A | Shielded | 80mOhm | - | 83MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
74404042047FIXED IND 4.7UH 1.7A 70 MOHM SMD Würth Elektronik |
1,607 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.7 A | 2.2A | Shielded | 70mOhm | - | 48MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4018 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
