Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7443631500FIXED IND 15UH 14A 8.7 MOHM SMD Würth Elektronik |
2,499 |
|
Datasheet |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±15% | 14 A | 21A | Shielded | 8.7mOhm | - | 12.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.858" L x 0.846" W (21.80mm x 21.50mm) | 0.571" (14.50mm) |
|
|
7443634700FIXED IND 47UH 12A 12.2 MOHM SMD Würth Elektronik |
1,546 |
|
Datasheet |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 47 µH | ±15% | 12 A | 8.5A | Shielded | 12.2mOhm | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.858" L x 0.846" W (21.80mm x 21.50mm) | 0.571" (14.50mm) |
|
|
7443633300FIXED IND 33UH 12A 11.4 MOHM SMD Würth Elektronik |
1,001 |
|
Datasheet |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±15% | 12 A | 11A | Shielded | 11.4mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.858" L x 0.846" W (21.80mm x 21.50mm) | 0.571" (14.50mm) |
|
74437529203220FIXED IND 22UH 23.9A 4.9MOHM SMD Würth Elektronik |
945 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±20% | 23.9 A | 21.7A | Shielded | 4.9mOhm | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|

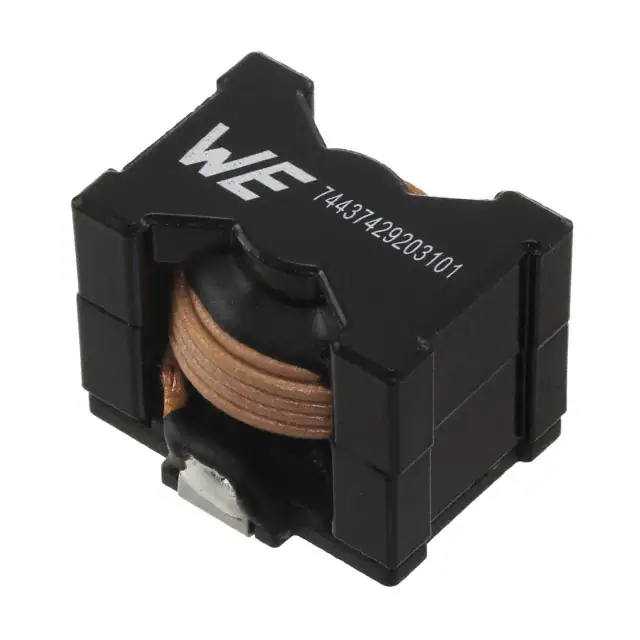

74437529203101FIXED IND 100UH 11.2A 22.9 MOHM Würth Elektronik |
370 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 µH | ±20% | 11.2 A | 9.4A | Shielded | 22.9mOhm | - | 4.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437529203680FIXED IND 68UH 17A 10.3 MOHM SMD Würth Elektronik |
358 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 68 µH | ±20% | 17 A | 10.6A | Shielded | 10.3mOhm | - | 5.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437429203470FIXED IND 47UH 12A 19.3 MOHM SMD Würth Elektronik |
227 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 47 µH | ±20% | 12 A | 13.5A | Shielded | 19.3mOhm | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|

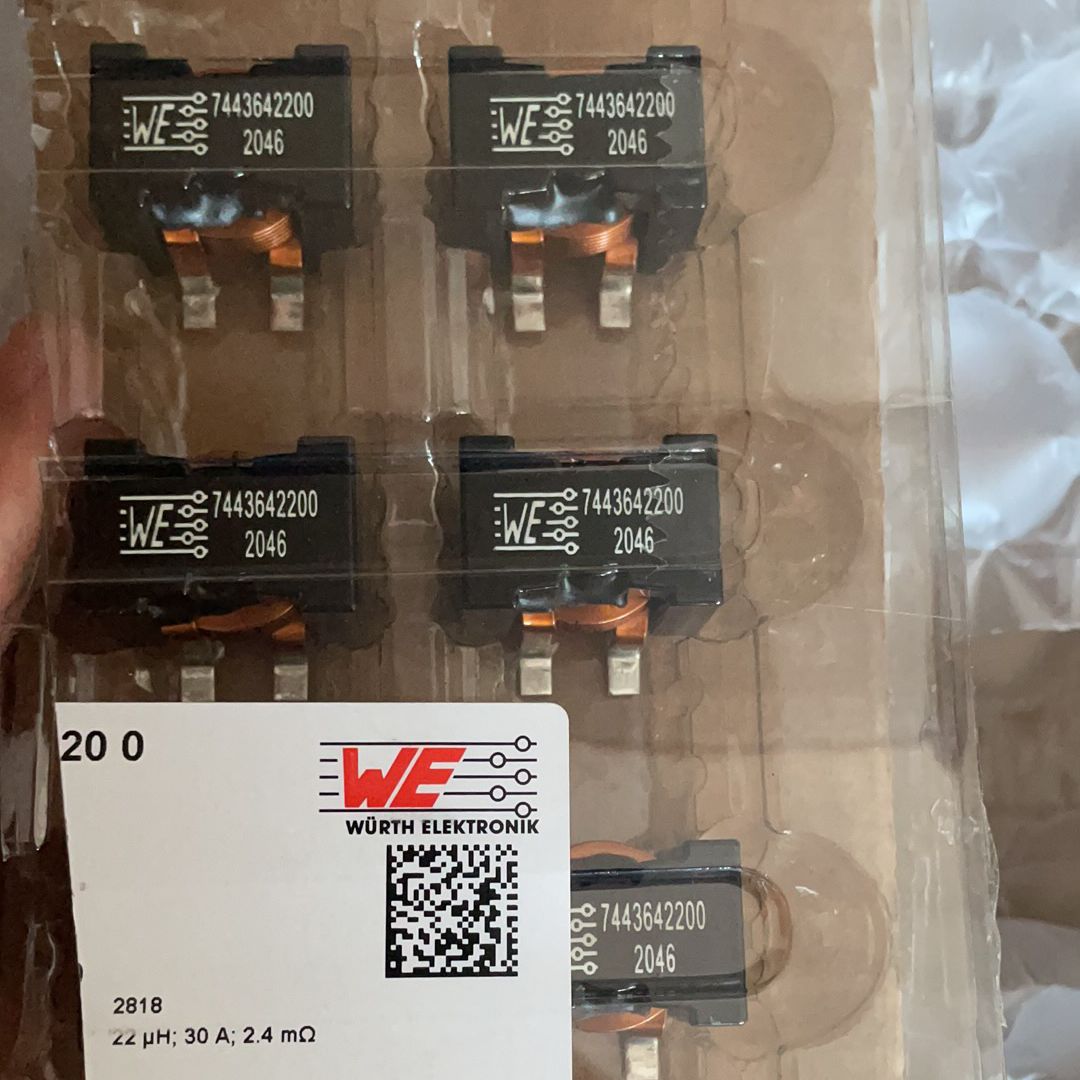

7443642200FIXED IND 22UH 30A 2.4 MOHM SMD Würth Elektronik |
3,129 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±15% | 30 A | 18A | Shielded | 2.4mOhm | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
|
7443641500FIXED IND 15UH 30A 2.4 MOHM SMD Würth Elektronik |
1,546 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±15% | 30 A | 26A | Shielded | 2.4mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
|
|
7443641000FIXED IND 10UH 30A 2.4 MOHM SMD Würth Elektronik |
289 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±15% | 30 A | 37A | Shielded | 2.4mOhm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
