Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AX97-10221FIXED IND 220UH 180MA 4.47OHM SM Triad Magnetics |
0 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 180 mA | - | Unshielded | 4.47Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.287" L x 0.188" W (7.30mm x 4.78mm) | 0.127" (3.23mm) |
|
|
AX97-10330FIXED IND 33UH 570MA 690MOHM SMD Triad Magnetics |
0 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 570 mA | - | Unshielded | 690mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.287" L x 0.188" W (7.30mm x 4.78mm) | 0.127" (3.23mm) |
|
|
AX97-10331FIXED IND 330UH 150MA 6.9OHM SMD Triad Magnetics |
0 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 150 mA | - | Unshielded | 6.9Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.287" L x 0.188" W (7.30mm x 4.78mm) | 0.127" (3.23mm) |
|
|
AX97-10470FIXED IND 47UH 460MA 920MOHM SMD Triad Magnetics |
0 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 460 mA | - | Unshielded | 920mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.287" L x 0.188" W (7.30mm x 4.78mm) | 0.127" (3.23mm) |
|
|
AX97-10680FIXED IND 68UH 370MA 1.39OHM SMD Triad Magnetics |
0 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 370 mA | - | Unshielded | 1.39Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.287" L x 0.188" W (7.30mm x 4.78mm) | 0.127" (3.23mm) |
|
|
AX97-106R8FIXED IND 6.8UH 1.3A 170MOHM SMD Triad Magnetics |
0 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.3 A | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.287" L x 0.188" W (7.30mm x 4.78mm) | 0.127" (3.23mm) |
|

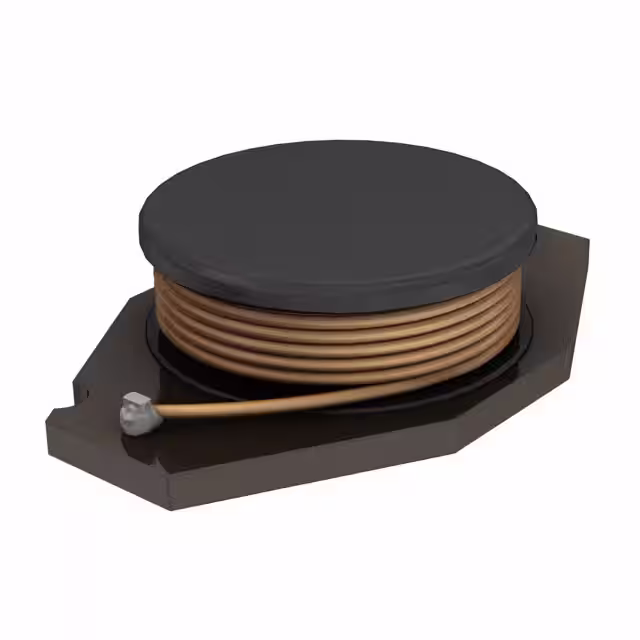

AX97-20151FIXED IND 150UH 500MA 890MOHM SM Triad Magnetics |
0 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 500 mA | - | Unshielded | 890mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.138" (3.50mm) |
|
|
AX97-20470FIXED IND 47UH 800MA 310MOHM SMD Triad Magnetics |
0 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 800 mA | - | Unshielded | 310mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.138" (3.50mm) |
|
|
AX97-20680FIXED IND 68UH 700MA 420MOHM SMD Triad Magnetics |
0 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 700 mA | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.138" (3.50mm) |
|

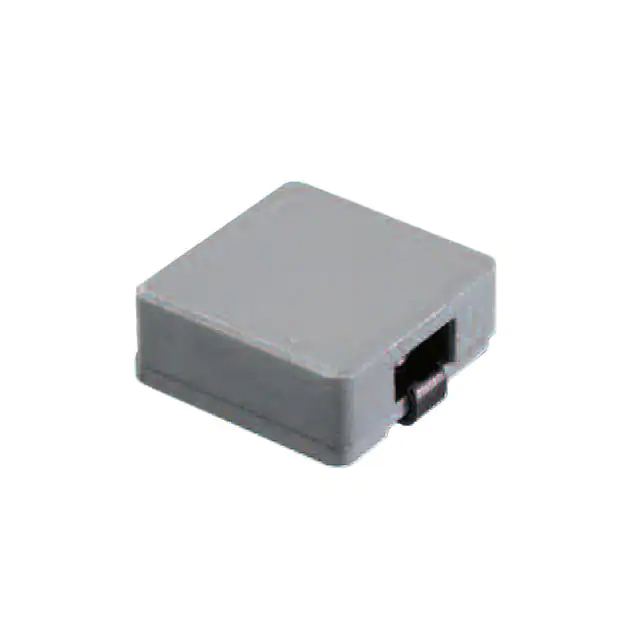

AX02-300R6FIXED IND 600NH 27A 0.95MOHM SMD Triad Magnetics |
0 |
|
Datasheet |
AX02 | 2-SMD, J-Lead | Box | Active | Drum Core, Wirewound | Ferrite | 600 nH | ±20% | 27 A | 40A | Shielded | 0.95mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.524" L x 0.591" W (13.30mm x 15.00mm) | 0.256" (6.50mm) |
