Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FIT44-4FIXED IND 8.06UH 4.8A 15.9 MOHM Triad Magnetics |
456 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 8.06 µH | - | 4.8 A | - | Unshielded | 15.9mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.625" L x 0.350" W (15.88mm x 8.89mm) | 0.700" (17.78mm) |
|
FIT50-2FIXED IND 35.48UH 3.4A 57.8 MOHM Triad Magnetics |
380 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 35.48 µH | - | 3.4 A | - | Unshielded | 57.8mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.700" L x 0.475" W (17.78mm x 12.07mm) | 0.750" (19.05mm) |
|

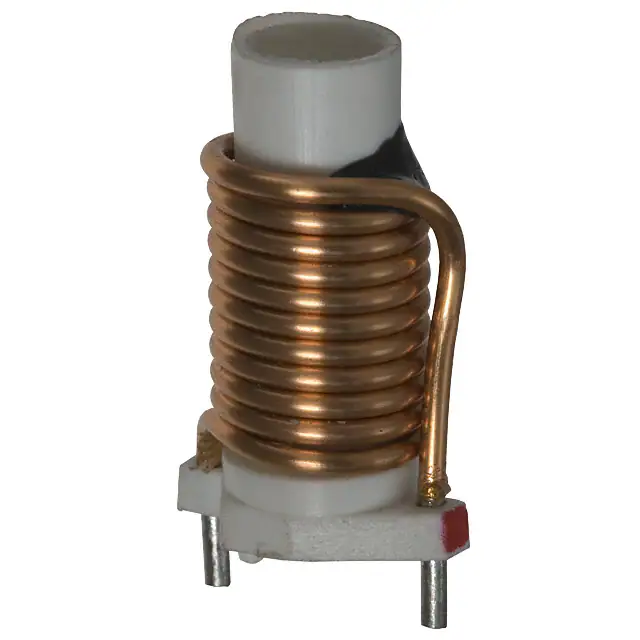

FIRCH-1FIXED IND 2.54UH 11.6A 5.5 MOHM Triad Magnetics |
182 |
|
Datasheet |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.54 µH | ±15% | 11.6 A | - | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|

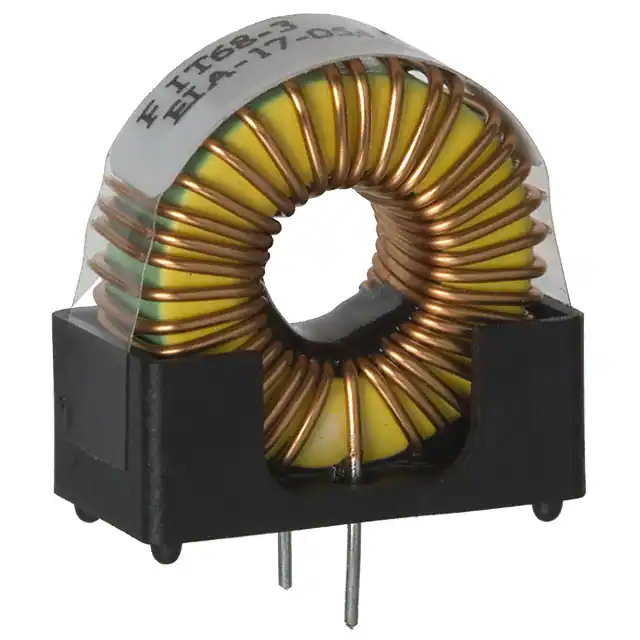

FIT68-3FIXED IND 54.81UH 4A 59.9MOHM TH Triad Magnetics |
269 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 54.81 µH | - | 4 A | - | Unshielded | 59.9mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
RC-10FIXED IND 100UH 2A 98 MOHM TH Triad Magnetics |
166 |
|
Datasheet |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2 A | - | Unshielded | 98mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
RC-11FIXED IND 75UH 2.5A 70 MOHM TH Triad Magnetics |
188 |
|
Datasheet |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 75 µH | ±10% | 2.5 A | - | Unshielded | 70mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
FIT80-3FIXED IND 80.75UH 5.7A 44.8 MOHM Triad Magnetics |
125 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 80.75 µH | - | 5.7 A | - | Unshielded | 44.8mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.975" L x 0.625" W (24.76mm x 15.88mm) | 1.100" (27.94mm) |
|
|
FIT68-4FIXED IND 43.3UH 4.8A 42.4 MOHM Triad Magnetics |
810 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 43.3 µH | - | 4.8 A | - | Unshielded | 42.4mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
|
FIT68-1FIXED IND 89.5UH 2.8A 108MOHM TH Triad Magnetics |
267 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 89.5 µH | - | 2.8 A | - | Unshielded | 108mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
RC-5FIXED IND 915UH 625MA 1 OHM TH Triad Magnetics |
1,444 |
|
Datasheet |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 915 µH | ±10% | 625 mA | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
