FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

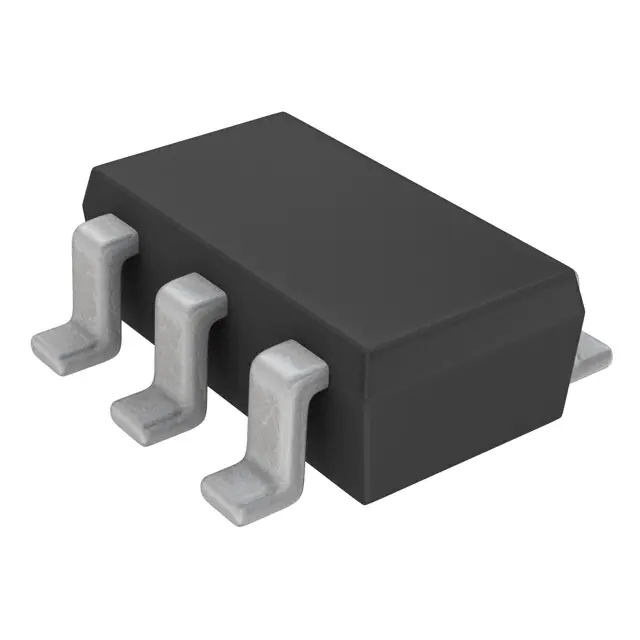

RQ6E035ATTCRMOSFET P-CH 30V 3.5A TSMT6 Rohm Semiconductor |
2,960 | - |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3.5A (Ta) | 4.5V, 10V | 50mOhm @ 3.5A, 10V | 2.5V @ 1mA | 10 nC @ 10 V | ±20V | 475 pF @ 15 V | - | 1.25W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|

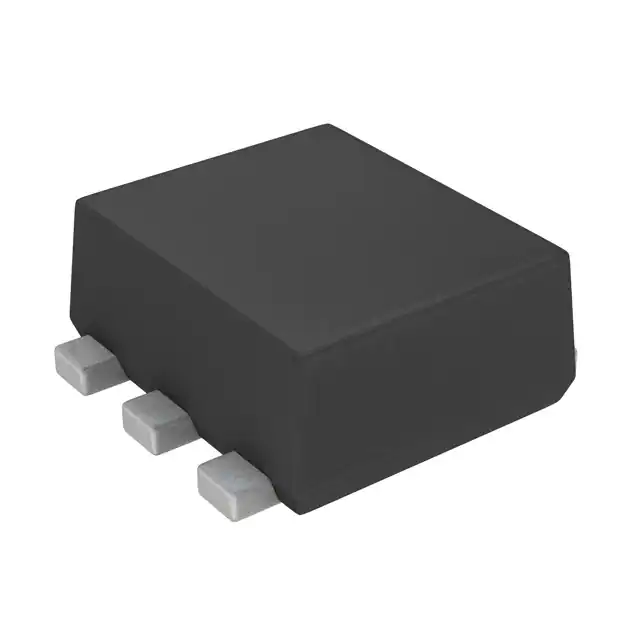

RTL020P02FRATRMOSFET P-CH 20V 2A TUMT6 Rohm Semiconductor |
4,408 | - |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | 2.5V, 4.5V | 135mOhm @ 2A, 4.5V | 2V @ 1mA | 4.9 nC @ 4.5 V | ±12V | 430 pF @ 10 V | - | 1W (Ta) | 150°C | Automotive | AEC-Q101 | Surface Mount | TUMT6 |
;;6.jpg)
|
RF4E070GNTRMOSFET N-CH 30V 7A HUML2020L8 Rohm Semiconductor |
2,340 | - |
|
Datasheet |
- | 8-PowerUDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7A (Ta) | 4.5V, 10V | 21.4mOhm @ 7A, 10V | 2.5V @ 250µA | 4.8 nC @ 10 V | ±20V | 220 pF @ 15 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | HUML2020L8 |
|
|
RAQ045P01TCRMOSFET P-CH 12V 4.5A TSMT6 Rohm Semiconductor |
7,344 | - |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 4.5A (Ta) | 1.5V, 4.5V | 30mOhm @ 4.5A, 4.5V | 1V @ 1mA | 40 nC @ 4.5 V | -8V | 4200 pF @ 6 V | - | 600mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|
|
RF4E080GNTRMOSFET N-CH 30V 8A HUML2020L8 Rohm Semiconductor |
3,362 | - |
|
Datasheet |
- | 8-PowerUDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Ta) | 4.5V, 10V | 17.6mOhm @ 8A, 10V | 2.5V @ 250µA | 5.8 nC @ 10 V | ±20V | 295 pF @ 15 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | HUML2020L8 |
|
|
RF4E110GNTRMOSFET N-CH 30V 11A HUML2020L8 Rohm Semiconductor |
6,452 | - |
|
Datasheet |
- | 8-PowerUDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 11.3mOhm @ 11A, 10V | 2.5V @ 250µA | 7.4 nC @ 10 V | ±20V | 504 pF @ 15 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | HUML2020L8 |
|

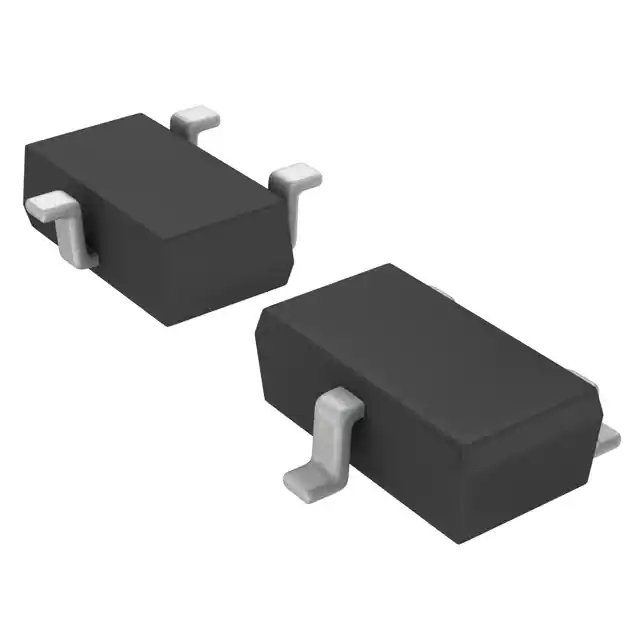

RQ5E030RPTLMOSFET P-CH 30V 3A TSMT3 Rohm Semiconductor |
2,900 | - |
|
Datasheet |
- | SC-96 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3A (Ta) | 4V, 10V | 75mOhm @ 3A, 10V | 2.5V @ 1mA | 5.2 nC @ 5 V | ±20V | 480 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT3 |
|
|
RF6E045AJTCRMOSFET N-CHANNEL 30V 4.5A TUMT6 Rohm Semiconductor |
4,548 | - |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | 4.5V | 23.7mOhm @ 4.5A, 4.5V | 1.5V @ 1mA | 8.1 nC @ 4.5 V | ±12V | 900 pF @ 15 V | - | 1W (Tc) | 150°C (TJ) | - | - | Surface Mount | TUMT6 |
|
|
RQ5C025TPTLMOSFET P-CH 20V 2.5A TSMT3 Rohm Semiconductor |
2,990 | - |
|
Datasheet |
- | SC-96 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 2.5V, 4.5V | 95mOhm @ 2.5A, 4.5V | 2V @ 1mA | 7 nC @ 4.5 V | ±12V | 630 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT3 |
|
|
RQ5E025SPTLMOSFET P-CH 30V 2.5A TSMT3 Rohm Semiconductor |
2,983 | - |
|
Datasheet |
- | SC-96 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.5A (Ta) | 4V, 10V | 98mOhm @ 2.5A, 10V | 2.5V @ 1mA | 5.4 nC @ 5 V | ±20V | 460 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT3 |
