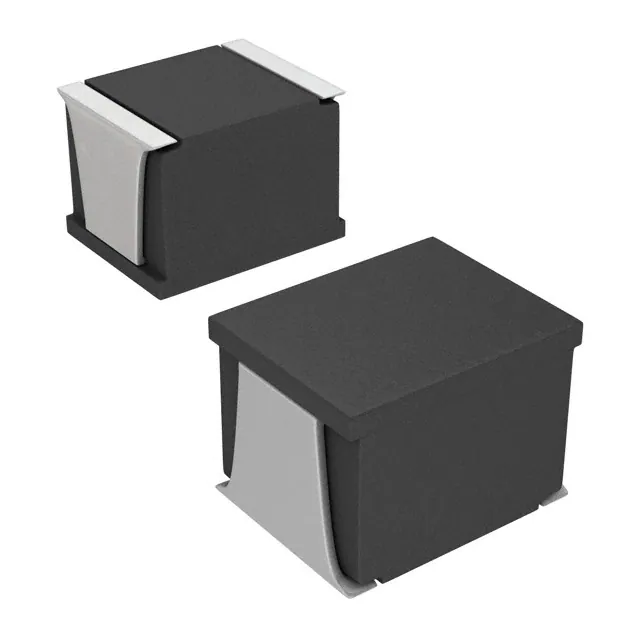

    Toko America Inc. FSLU2520-5R6JP2

    Part No.:
    FSLU2520-5R6JP2
    Manufacturer:
    Toko America Inc.
    Category:
    Fixed Inductors
    Package:
    1008 (2520 Metric)
    Datasheet:
    KATY Electronic Technology Co., LTDFSLU2520-5R6JP2.pdf
    Description:
    FIXED IND 5.6UH 175MA 2.3 OHM
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Toko America Inc.
    Series:
    FSLU2520
    Package/Case:
    1008 (2520 Metric)
    Packaging:
    Cut Tape (CT)
    Product Status:
    Obsolete
    Type:
    Wirewound
    Material - Core:
    Ferrite
    Inductance:
    5.6 µH
    Tolerance:
    ±5%
    Current Rating (Amps):
    175 mA
    Current - Saturation (Isat):
    -
    Shielding:
    Unshielded
    DC Resistance (DCR):
    2.3Ohm Max
    Q @ Freq:
    30 @ 7.96MHz
    Frequency - Self Resonant:
    55MHz
    Ratings:
    -
    Operating Temperature:
    -40°C ~ 85°C
    Inductance Frequency - Test:
    7.96 MHz
    Features:
    -
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    1008 (2520 Metric)
    Size / Dimension:
    0.098" L x 0.079" W (2.50mm x 2.00mm)
    Height - Seated (Max):
    0.071" (1.80mm)

    1. How to order FSLU2520-5R6JP2 on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that FSLU2520-5R6JP2 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the FSLU2520-5R6JP2. All suppliers must pass our qualification reviews before they can publish their products including FSLU2520-5R6JP2 on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of FSLU2520-5R6JP2 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the FSLU2520-5R6JP2 price and inventory displayed accurate?

    The price and inventory of FSLU2520-5R6JP2 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of FSLU2520-5R6JP2?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the FSLU2520-5R6JP2 we delivered, we will accept the replacement or return of the FSLU2520-5R6JP2 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of FSLU2520-5R6JP2.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as FSLU2520-5R6JP2 pin diagram, FSLU2520-5R6JP2 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

    Image FSLU2520-12NKP2 FSLU2520-56NKP2 FSLU2520-R27KP2 FSLU2520-18NKP2 FSLU2520-15NKP2
    Part Number FSLU2520-12NKP2 FSLU2520-56NKP2 FSLU2520-R27KP2 FSLU2520-18NKP2 FSLU2520-15NKP2
    Manufacturer Toko America Inc. Toko America Inc. Toko America Inc. Toko America Inc. Toko America Inc.
    Series FSLU2520 FSLU2520 FSLU2520 FSLU2520 FSLU2520
    Package/Case 1008 (2520 Metric) 1008 (2520 Metric) 1008 (2520 Metric) 1008 (2520 Metric) 1008 (2520 Metric)
    Packaging Tape & Reel (TR) Cut Tape (CT) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
    Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
    Type Drum Core, Wirewound - Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
    Material - Core Ferrite - Ferrite Ferrite Ferrite
    Inductance 12 nH - 270 nH 18 nH 15 nH
    Tolerance ±10% - ±10% ±10% ±10%
    Current Rating (Amps) 690 mA - 420 mA 600 mA 660 mA
    Current - Saturation (Isat) - - - - -
    Shielding Unshielded - Unshielded Unshielded Unshielded
    DC Resistance (DCR) 170mOhm Max - 380mOhm Max 200mOhm Max 190mOhm Max
    Q @ Freq 15 @ 100MHz - 30 @ 25.2MHz 15 @ 100MHz 15 @ 100MHz
    Frequency - Self Resonant 2.1GHz - 425MHz 1.75GHz 2GHz
    Ratings - - - - -
    Operating Temperature -40°C ~ 85°C - -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
    Inductance Frequency - Test 100 MHz - 25.2 MHz 100 MHz 100 MHz
    Features - - - - -
    Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
    Supplier Device Package 1008 (2520 Metric) 1008 (2520 Metric) 1008 (2520 Metric) 1008 (2520 Metric) 1008 (2520 Metric)
    Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm) 0.098" L x 0.079" W (2.50mm x 2.00mm) 0.098" L x 0.079" W (2.50mm x 2.00mm) 0.098" L x 0.079" W (2.50mm x 2.00mm) 0.098" L x 0.079" W (2.50mm x 2.00mm)
    Height - Seated (Max) 0.071" (1.80mm) 0.071" (1.80mm) 0.071" (1.80mm) 0.071" (1.80mm) 0.071" (1.80mm)
