    TE Connectivity Potter & Brumfield Relays T9GS1L24-12U

    Part No.:
    T9GS1L24-12U
    Manufacturer:
    TE Connectivity Potter & Brumfield Relays
    Category:
    Power Relays, Over 2 Amps
    Package:
    Description:
    RELAY GEN PURPOSE SPST 30A 12V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    TE Connectivity Potter & Brumfield Relays
    Series:
    T9G
    Packaging:
    Bulk
    Product Status:
    Active
    Mounting Type:
    Through Hole
    Coil Voltage:
    12VDC
    Contact Form:
    SPST-NO (1 Form A)
    Contact Rating (Current):
    30 A
    Switching Voltage:
    480VAC - Max
    Load - Max Switching:
    14400VA
    Coil Current:
    75 mA
    Coil Type:
    Non Latching
    Features:
    -
    Termination Style:
    PC Pin, Quick Connect - 0.250" (6.3mm)
    Seal Rating:
    Sealed - Fully
    Coil Insulation:
    Class F
    Must Operate Voltage:
    9 VDC
    Must Release Voltage:
    1.2 VDC
    Operate Time:
    15 ms
    Release Time:
    22 ms
    Operating Temperature:
    -40°C ~ 105°C
    Contact Material:
    Silver Tin Oxide (AgSnO)
    Relay Type:
    General Purpose
    Grade:
    -
    Qualification:
    -

    1. How to order T9GS1L24-12U on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that T9GS1L24-12U is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the T9GS1L24-12U. All suppliers must pass our qualification reviews before they can publish their products including T9GS1L24-12U on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of T9GS1L24-12U products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the T9GS1L24-12U price and inventory displayed accurate?

    The price and inventory of T9GS1L24-12U fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of T9GS1L24-12U?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the T9GS1L24-12U we delivered, we will accept the replacement or return of the T9GS1L24-12U only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of T9GS1L24-12U.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as T9GS1L24-12U pin diagram, T9GS1L24-12U datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

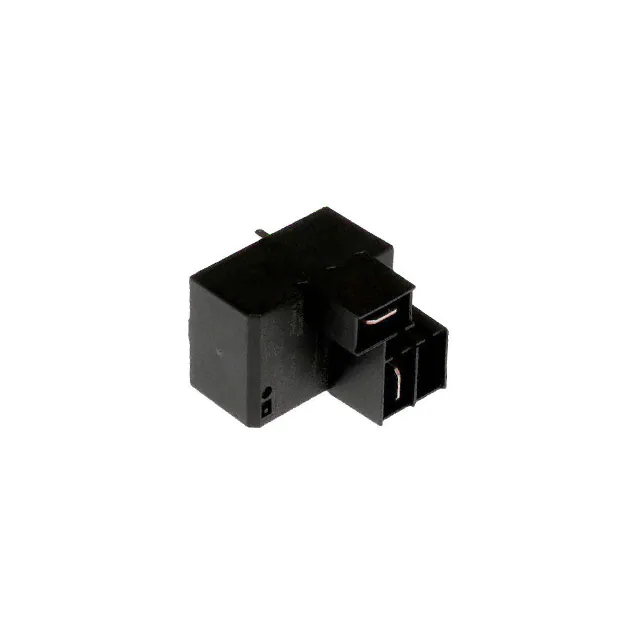

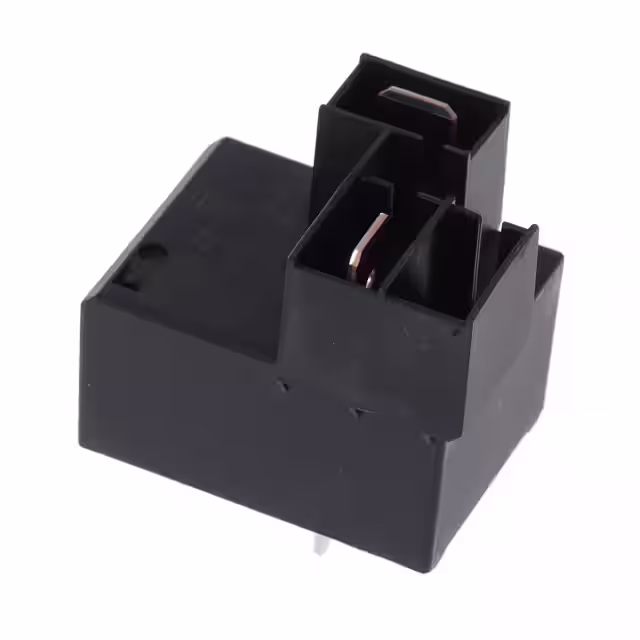

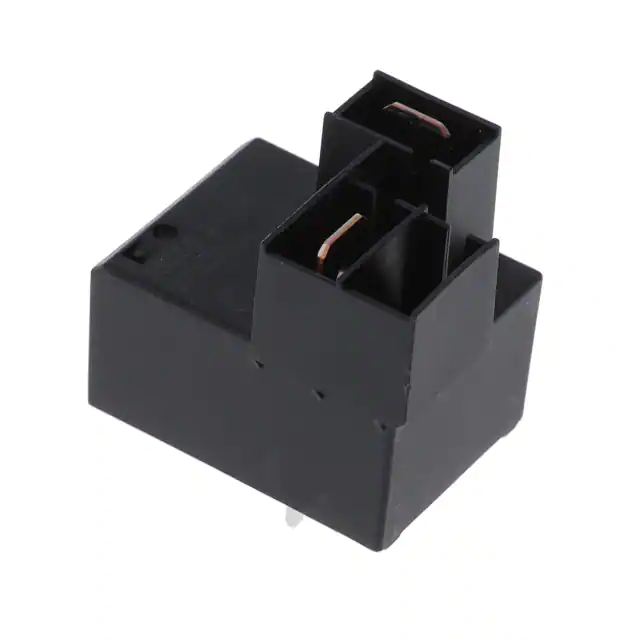

    Image T9GS1L24-5 T9GS1L24-15 T9GS1L24-12 T9GS1L24-18 T9GS1L24-24
    Part Number T9GS1L24-5 T9GS1L24-15 T9GS1L24-12 T9GS1L24-18 T9GS1L24-24
    Manufacturer TE Connectivity Potter & Brumfield Relays TE Connectivity Potter & Brumfield Relays TE Connectivity Potter & Brumfield Relays TE Connectivity Potter & Brumfield Relays TE Connectivity Potter & Brumfield Relays
    Series T9G T9G T9G T9G T9G
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Active Active Active Active Active
    Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
    Coil Voltage 5VDC 15VDC 12VDC 18VDC 24VDC
    Contact Form SPST-NO (1 Form A) SPST-NO (1 Form A) SPST-NO (1 Form A) SPST-NO (1 Form A) SPST-NO (1 Form A)
    Contact Rating (Current) 30 A 30 A 30 A 30 A 30 A
    Switching Voltage 480VAC - Max 480VAC - Max 480VAC - Max 480VAC - Max 480VAC - Max
    Load - Max Switching 14400VA 14400VA 14400VA 14400VA 14400VA
    Coil Current 180 mA 60 mA 75 mA 50 mA 37.5 mA
    Coil Type Non Latching Non Latching Non Latching Non Latching Non Latching
    Features - - - - -
    Termination Style PC Pin, Quick Connect - 0.250" (6.3mm) PC Pin, Quick Connect - 0.250" (6.3mm) PC Pin, Quick Connect - 0.250" (6.3mm) PC Pin, Quick Connect - 0.250" (6.3mm) PC Pin, Quick Connect - 0.250" (6.3mm)
    Seal Rating Sealed - Fully Sealed - Fully Sealed - Fully Sealed - Fully Sealed - Fully
    Coil Insulation Class F Class F Class F Class F Class F
    Must Operate Voltage 3.75 VDC 11.25 VDC 9 VDC 13.5 VDC 18 VDC
    Must Release Voltage 0.5 VDC 1.5 VDC 1.2 VDC 1.8 VDC 2.4 VDC
    Operate Time 15 ms 15 ms 15 ms 15 ms 15 ms
    Release Time 22 ms 22 ms 22 ms 22 ms 22 ms
    Operating Temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
    Contact Material Silver Tin Oxide (AgSnO) Silver Tin Oxide (AgSnO) Silver Tin Oxide (AgSnO) Silver Tin Oxide (AgSnO) Silver Tin Oxide (AgSnO)
    Relay Type General Purpose General Purpose General Purpose General Purpose General Purpose
    Grade - - - - -
    Qualification - - - - -
