    Taoglas Limited PA.15

    Part No.:
    PA.15
    Manufacturer:
    Taoglas Limited
    Category:
    RF Antennas
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDPA.15.pdf
    Description:

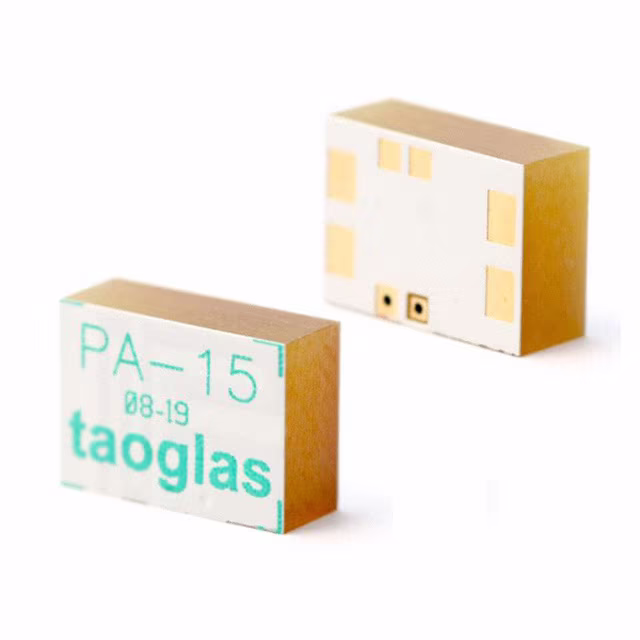

    RF ANT 2.4GHZ CHIP SOLDER SMD
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Taoglas Limited
    Series:
    -
    Packaging:
    Tape & Reel (TR)
    Product Status:
    Obsolete
    RF Family/Standard:
    Bluetooth, WiFi
    Frequency Group:
    UHF (2GHz ~ 3GHz)
    Frequency (Center/Band):
    2.4GHz
    Frequency Range:
    2.4GHz ~ 2.5GHz
    Antenna Type:
    Chip
    Number of Bands:
    1
    VSWR:
    -
    Return Loss:
    -21dB
    Gain:
    -3.1dBi
    Power - Max:
    -
    Features:
    -
    Termination:
    Solder
    Ingress Protection:
    -
    Grade:
    -
    Qualification:
    -
    Mounting Type:
    Surface Mount
    Height (Max):
    0.130" (3.30mm)
    Applications:
    Bluetooth, 802.11a/b/g
