    OptiFuse RS30-400

    Part No.:
    RS30-400
    Manufacturer:
    OptiFuse
    Category:
    PTC Resettable Fuses
    Package:
    Radial, Disc
    Datasheet:
    KATY Electronic Technology Co., LTDRS30-400.pdf
    Description:
    PTC RESET FUSE 30V 4A RADIAL
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    OptiFuse
    Package/Case:
    Radial, Disc
    Series:
    RS30
    Packaging:
    Bulk
    Product Status:
    Active
    Type:
    Polymeric
    Voltage - Max:
    30V
    Current - Hold (Ih) (Max):
    4 A
    Current - Trip (It):
    8 A
    Current - Max:
    100 A
    Time to Trip:
    12.7 s
    Resistance - Initial (Ri) (Min):
    10 mOhms
    Resistance - Post Trip (R1) (Max):
    50 mOhms
    Resistance - 25°C (Typ):
    -
    Operating Temperature:
    -40°C ~ 85°C
    Grade:
    -
    Qualification:
    -
    Ratings:
    -
    Mounting Type:
    Through Hole
    Size / Dimension:
    0.551" L x 0.118" W (14.00mm x 3.00mm)
    Height - Seated (Max):
    0.791" (20.10mm)
    Thickness (Max):
    -
    Lead Spacing:
    0.201" (5.10mm)

    1. How to order RS30-400 on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that RS30-400 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the RS30-400. All suppliers must pass our qualification reviews before they can publish their products including RS30-400 on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of RS30-400 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the RS30-400 price and inventory displayed accurate?

    The price and inventory of RS30-400 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of RS30-400?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the RS30-400 we delivered, we will accept the replacement or return of the RS30-400 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of RS30-400.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as RS30-400 pin diagram, RS30-400 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

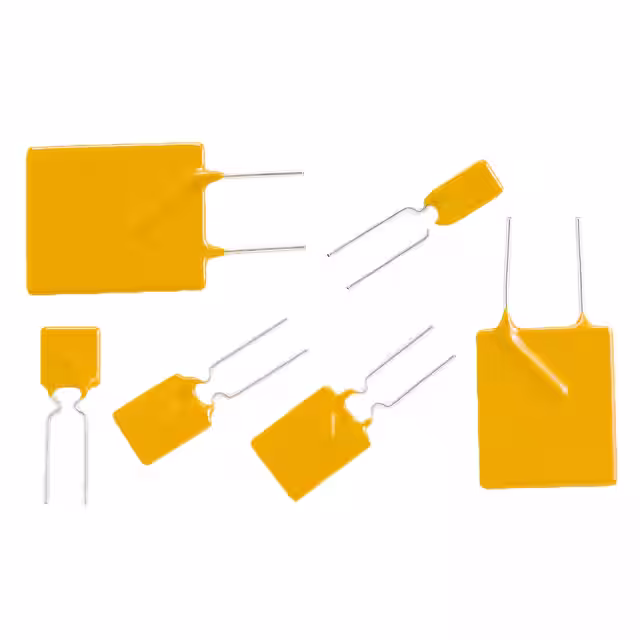

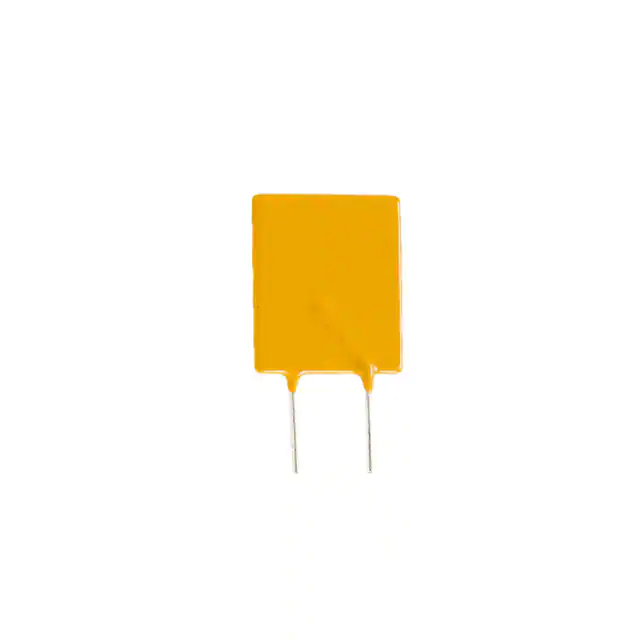

    Image RS30-110 RS30-600 RS30-700 RS30-800 RS30-900
    Part Number RS30-110 RS30-600 RS30-700 RS30-800 RS30-900
    Manufacturer OptiFuse OptiFuse OptiFuse OptiFuse OptiFuse
    Package/Case Radial, Disc Radial, Disc Radial, Disc Radial, Disc Radial, Disc
    Series RS30 RS30 RS30 RS30 RS30
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Active Active Active Active Active
    Type Polymeric Polymeric Polymeric Polymeric Polymeric
    Voltage - Max 30V 30V 30V 30V 30V
    Current - Hold (Ih) (Max) 1.1 A 6 A 7 A 8 A 9 A
    Current - Trip (It) 2.2 A 12 A 14 A 16 A 18 A
    Current - Max 100 A 100 A 100 A 100 A 100 A
    Time to Trip 6.6 s 16 s 17.5 s 18.8 s 20 s
    Resistance - Initial (Ri) (Min) 50 mOhms 5 mOhms 5 mOhms 5 mOhms 5 mOhms
    Resistance - Post Trip (R1) (Max) 170 mOhms 40 mOhms 30 mOhms 20 mOhms 20 mOhms
    Resistance - 25°C (Typ) - - - - -
    Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
    Grade - - - - -
    Qualification - - - - -
    Ratings - - - - -
    Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
    Size / Dimension 0.291" L x 0.118" W (7.40mm x 3.00mm) 0.650" L x 0.118" W (16.50mm x 3.00mm) 0.752" L x 0.118" W (19.10mm x 3.00mm) 0.850" L x 0.118" W (21.60mm x 3.00mm) 0.949" L x 0.118" W (24.10mm x 3.00mm)
    Height - Seated (Max) 0.559" (14.20mm) 0.980" (24.90mm) 1.051" (26.70mm) 1.150" (29.20mm) 1.169" (29.70mm)
    Thickness (Max) - - - - -
    Lead Spacing 0.201" (5.10mm) 0.402" (10.20mm) 0.402" (10.20mm) 0.402" (10.20mm) 0.402" (10.20mm)
