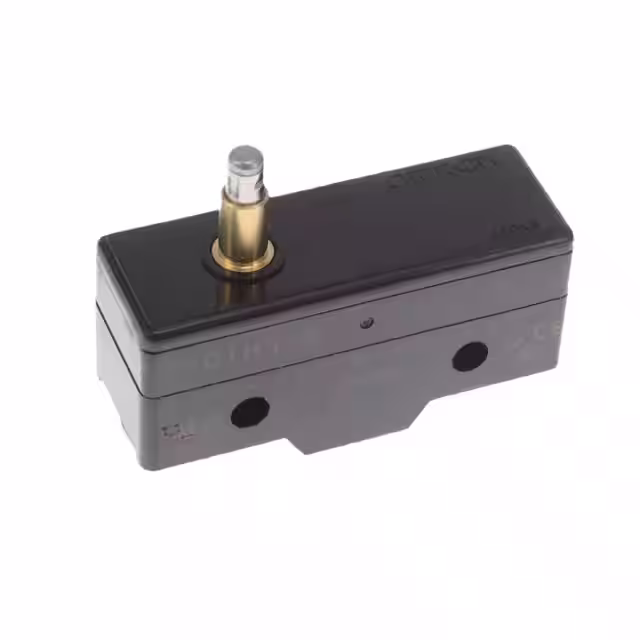

    Omron Automation and Safety Z-01HS-B

    Part No.:
    Z-01HS-B
    Manufacturer:
    Omron Automation and Safety
    Category:
    Limit Switches
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDZ-01HS-B.pdf
    Description:
    SWITCH SNAP ACT SPDT 0.1A 125V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Omron Automation and Safety
    Series:
    Z
    Packaging:
    Bulk
    Product Status:
    Active
    Circuit:
    SPDT
    Switch Function:
    On-Mom
    Current Rating (Amps):
    100mA (AC/DC)
    Voltage Rating - AC:
    125 V
    Voltage Rating - DC:
    30 V
    Actuator Type:
    Round (Pin Plunger)
    Mounting Type:
    Chassis Mount
    Termination Style:
    Screw Terminal
    Ingress Protection:
    IP00
    Features:
    -
    Operating Force:
    250gf
    Release Force:
    80gf
    Operating Position:
    1.110" (28.2mm)
    Pretravel:
    0.020" (0.5mm)
    Differential Travel:
    0.002" (0.05mm)
    Overtravel:
    0.062" (1.6mm)
    Operating Temperature:
    -25°C ~ 80°C
